• 尺寸
• 2.9
• inch

• 分辨率
• 384x168
• Dot

• 型号
• EPD0266B

• 产品类型
• E-Ink

• 显示器形状
• Bar

• 外形尺寸
• 35.57×79.98×0.92
• mm

• 显示区域
• 29.57×67.58
• mm

• 视角
• All Angles

• 驱动IC
• SSD1680

• 接口
• SPI

• PPI
• 144

• 工作温度
• 0-50℃
• ℃

• 备注
• White/Black/Red/Yellow

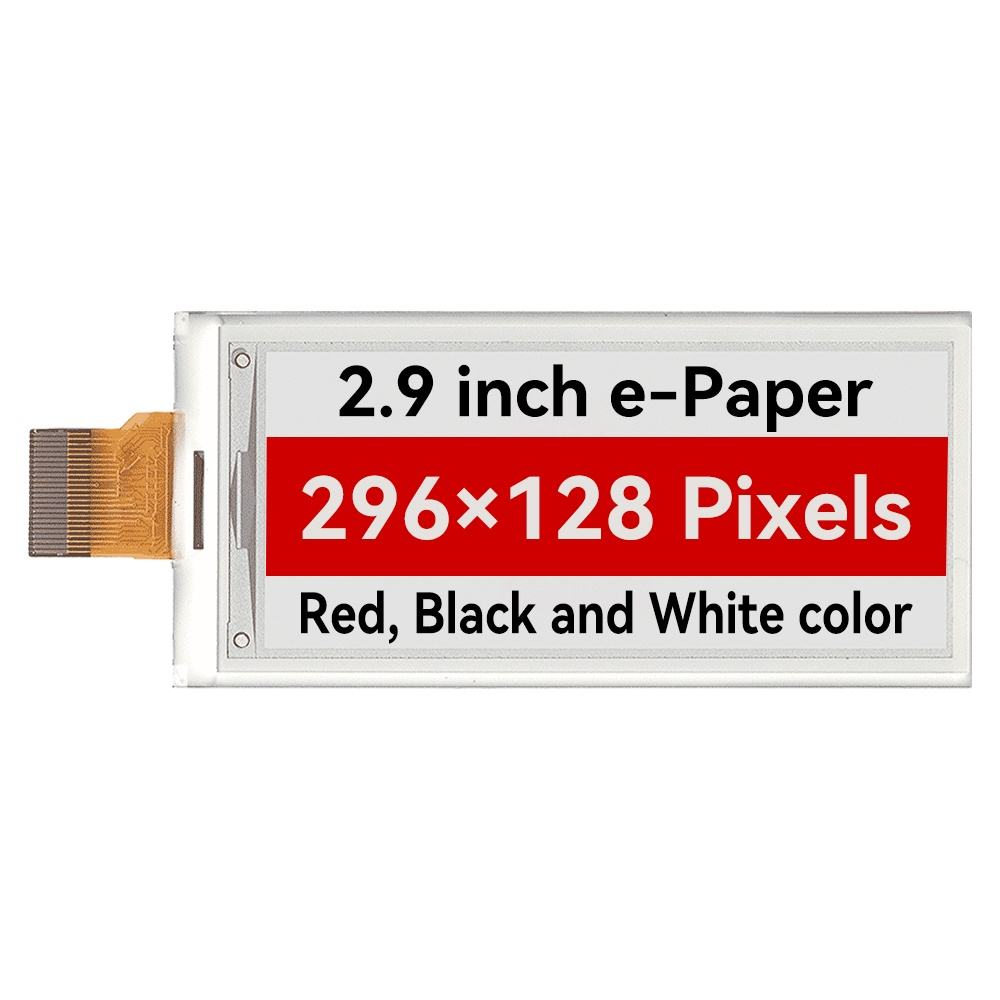

2.9" E-paper display supports black, white, yellow, and red images, depending on the associated lookup table used. With a 2.9 inch E-paper module featuring a 128×296 pixel active area, this display offers superior color contrast and visibility. The integrated circuitry includes a gate and source driver, timing controller, oscillator, DC-DC boost circuit, memory for storing frame buffers and lookup tables, as well as additional circuitry for VCOM and BORDER control.

Features:

· High red and yellow color for vibrant display

· High contrast for clear visibility

· High reflectance for better sunlight readability

· Ultra-wide viewing angle for improved user experience

· Ultra-low power consumption ideal for battery-operated devices

· Pure reflective mode for low-energy usage

· Bi-stable display technology – retains image without power

· Antiglare, hard-coated front surface for durability

· Low current deep sleep mode for energy efficiency

· On-chip display RAM for efficient data storage

· Waveforms stored in on-chip OTP for easy configuration

· Serial peripheral interface available for system integration

· On-chip oscillator for stable performance

· On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage

· I2C signal master interface to read external temperature sensors

· Available in COG package for compact integration
