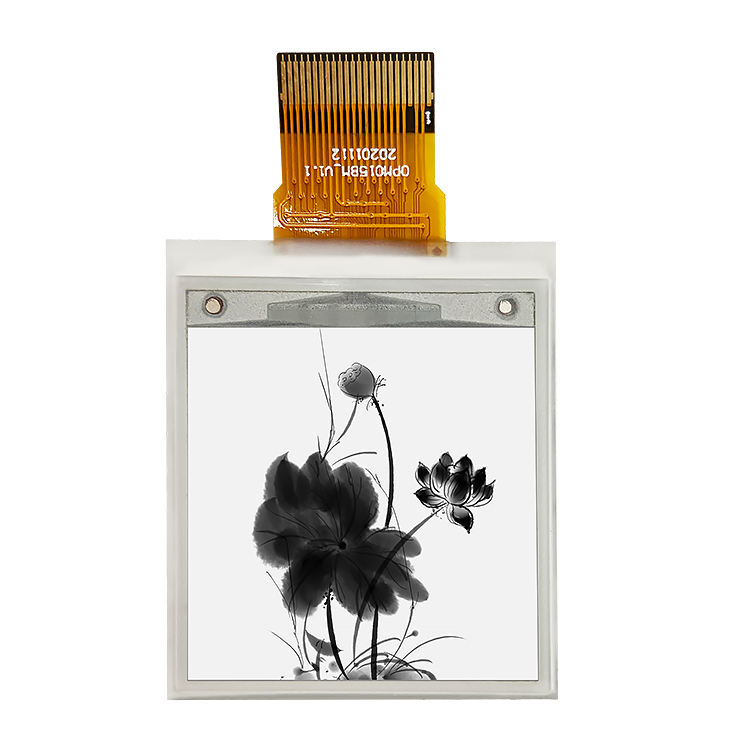

1.54inch E-paper Display Module 200X200 Pixels

型号 EPD0154B

The 1.54" active area contains 200 x 200 pixels and supports 1-bit black-and-white display with full display capabilities. As a reliable 1.54 inch E-paper module, it offers excellent readability under various lighting conditions and is ideal for applications requiring low power consumption and wide viewing angles. This 1.54 inch E-paper display integrates a gate buffer, source buffer, interface, timing controller logic, oscillator, DC-DC converter, SRAM, LUT, VCOM, and borders for each panel.

产品特点

· 型号 : EPD0154B

· 尺寸: 1.54

· 分辨率: 200x200

· 显示器形状: Rectangular

· 接口: SPI

· 驱动IC: SSD1681

· 触摸屏: 188

+ 添加咨询

技术规格表

尺寸
1.54
inch

分辨率
200x200
Dot

型号
EPD0154B

产品类型
E-Ink

显示器形状
Rectangular

外形尺寸
31.8×37.32×0.98
mm

显示区域
36.72x48.96
mm

视角
All Aangles

驱动IC
SSD1681

接口
SPI

工作温度
0-50℃
℃

备注
White/Black

应用领域描述

Smart Home
Medical Devices
Smart Home
Medical Devices
Smart Home

产品介绍

Features

· High contrast

· High reflectance

· Ultra-wide viewing angle

· Ultra-low power consumption

· Pure reflective mode

· Bi-stable

· Commercial temperature range

· Supports both landscape and portrait modes

· Anti-glare hard-coated front surface

· Low current sleep mode

· On-chip display RAM

· Serial Peripheral Interface (SPI) available

· On-chip oscillator

· On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages

· I2C master interface for reading an external temperature sensor

· Front light panel with 3 LEDs in series

· Available in COG package with IC thickness of 300µm
