• Size
• 2.8
• mm

• Resolution
• 480x640
• Dot

• Model No.
• TFT028B02

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 50x69.20x2.25
• mm

• Active Area
• 43.20x57.6
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

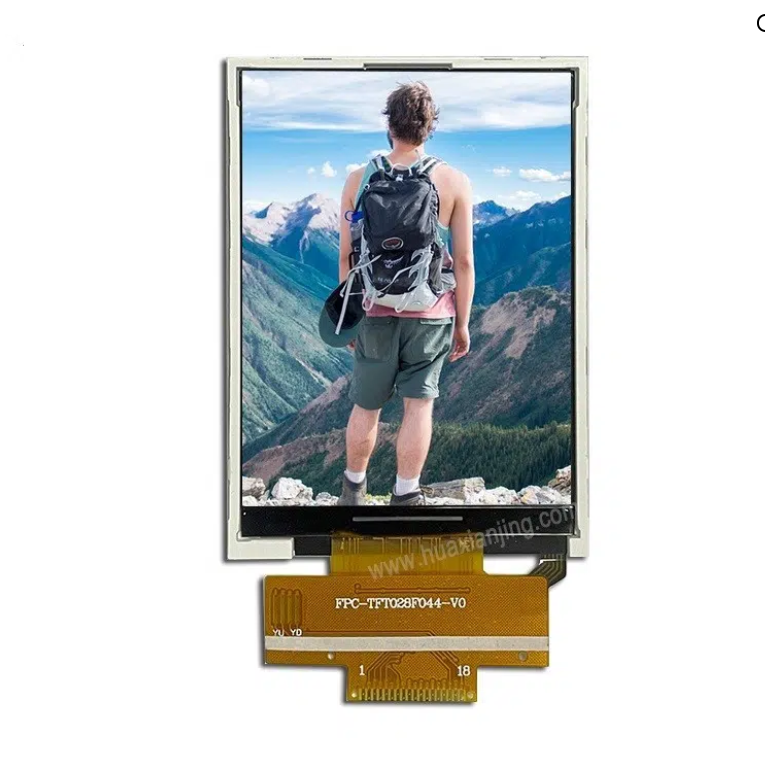

 2.8 inch TFT LCD display 300 brightness 240*320 resolution MCU/SPI interface driver IC ILI9341

The 2.8 inch TFT LCD display offers a crisp and vivid visual experience. With a brightness of 300, it ensures clear visibility even in various lighting conditions. Boasting a resolution of 240x320, it presents sharp images and text. The display features an MCU/SPI interface and is driven by the reliable ST7789 driver IC.

• High brightness of 400 for excellent visibility.

• 480x640 resolution for clear and detailed visuals.

• MIPI interface for easy integration.

• Driven by the efficient ST7789 driver IC.

• Portable electronics such as e-readers and handheld gaming devices.

• Industrial control panels for clear data display.

• Smart home devices for intuitive interfaces.

• Medical equipment for accurate readings and displays.

• Wearable devices for on-the-go information.

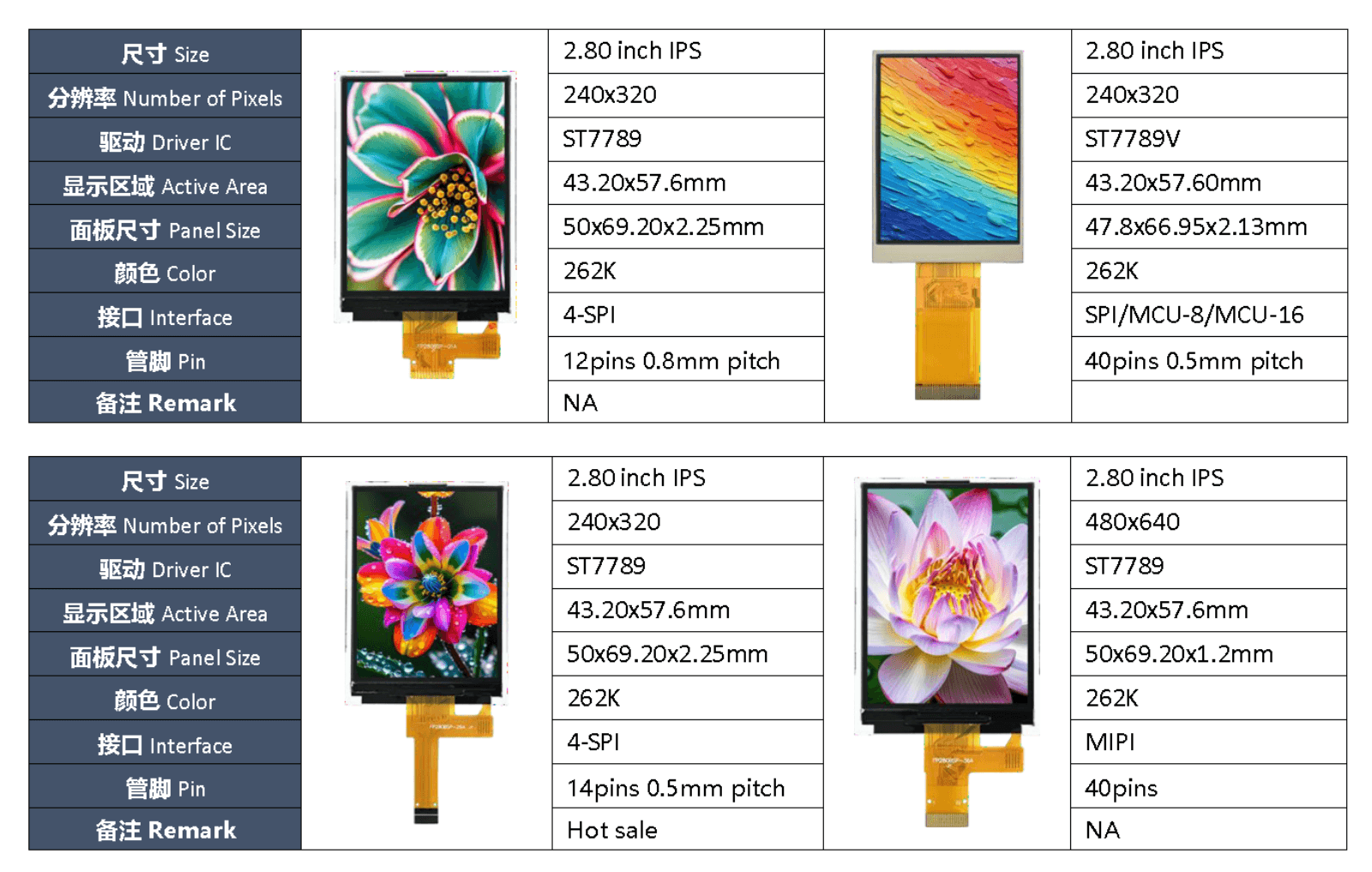

Product Parameter:

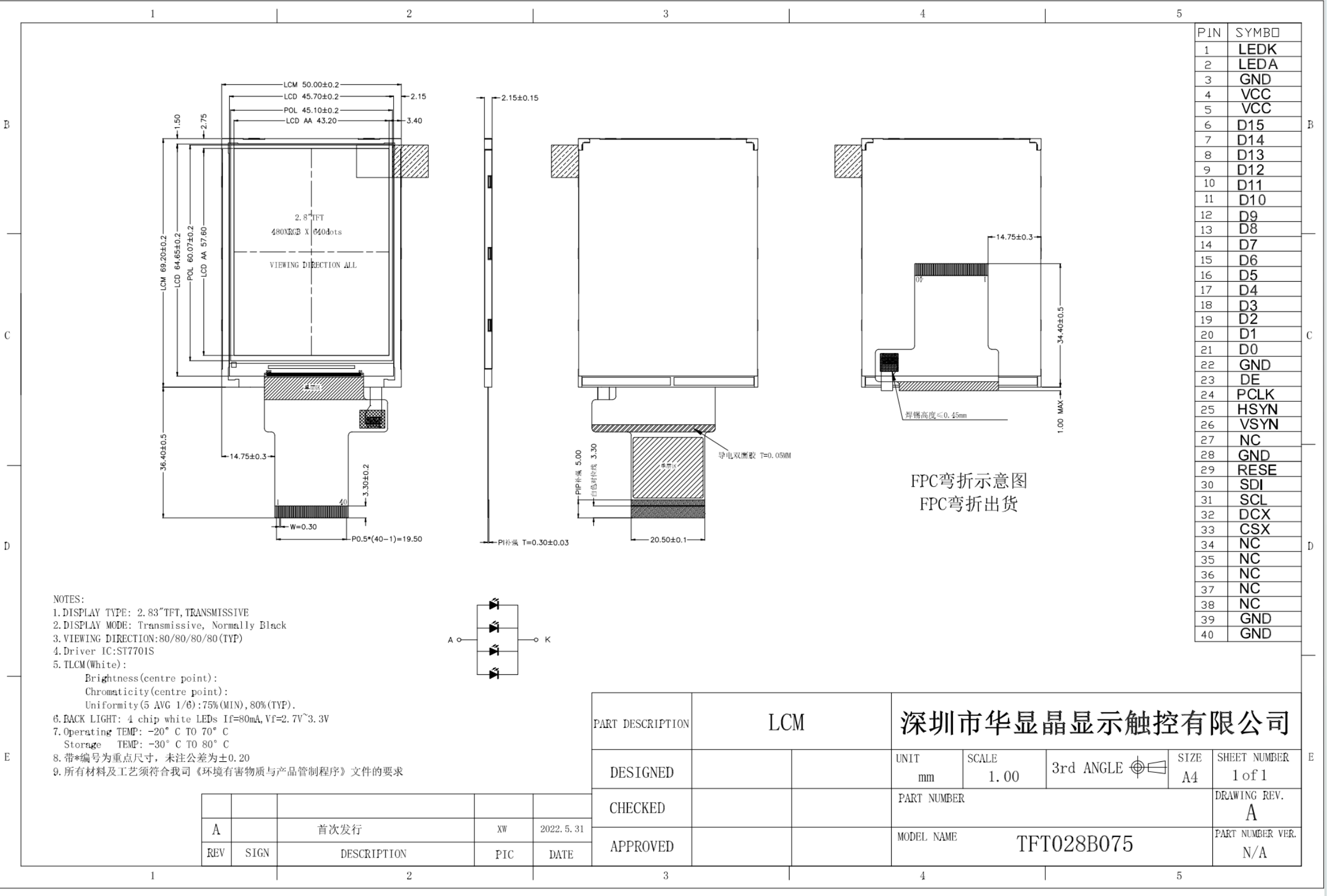

The drawing:
