Active Arear
Size (inch)
Resolution
Model No.
Product Type
Outline szie(mm)
Active Area(mm)
View Angle
Drive IC
Interface
Brightness (nits)
Touch Screen
OP(℃)
Remark

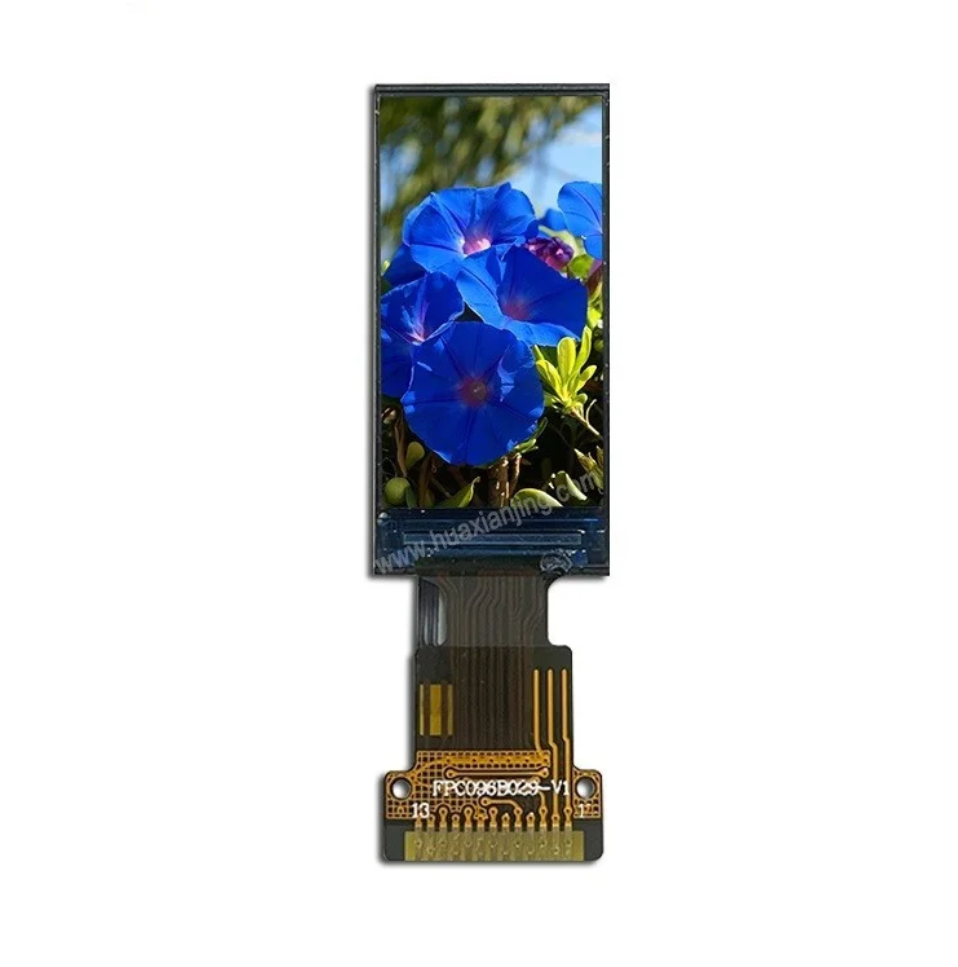

0.96
80X160
TFT096B
IPS
13.5x27.95x1.5
10.80x21.70
All Angles
ST7735P3
SPI
300
NA
-20°C~+70°C

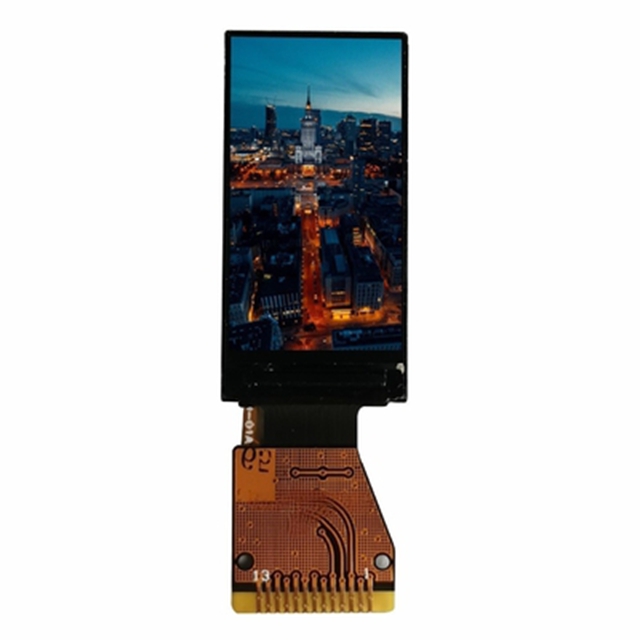

1.14
80x160
TFT0114B
IPS
17.6x31x1.6
14.86x24.91
All Angles
ST7789V
SPI
300
NA
-20°C~+70°C
1.47
172x320
TFT0147B
IPS
19.39x36.28x1.46
17.39x32.35
All Angles
ST7789V
SPI
300
NA
-20°C~+70°C
2.66
180X480
TFT0286B
IPS
24.38x62.94x2.1
21.28x64.14
All Angles
NV3030T
SPI
300
NA
-20°C~+70°C
2.86
376X960
TFT0286B
IPS
31.2x76.6x2.15
26.52x68.08
All Angles
ST7789V
RGB
300
NA
-20°C~+70°C

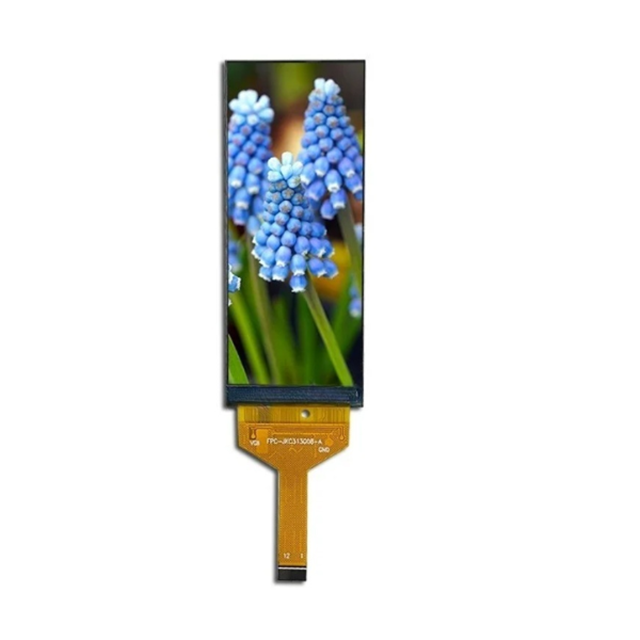

3.13
376X960
TFT0313B
IPS
31.1X81.1X2.37
28.99X74.02
All Angles
NV3049E
RGB
300
NA
-20°C~+70°C
3.0
480X854
TFT030B
IPS
40.64X72.57X0.8
36.72X65.27
All Angles
NV3049E
RGB
300
NA
-20°C~+70°C
4.45
480X854
TFT030B
IPS
60x109x2.15
55.44X98.64
All Angles
ST7701S
RGB
300
NA
-20°C~+70°C
4.6
320X960
TFT046B
IPS
118.7x41.57x2.5
110.3x36.77
All Angles
ST7701S
RGB
300
NA
-20°C~+70°C
4.96
480X960
TFT050B012
IPS
76.69x120.65x2.0
66.16x112.32
All Angles
GC9503C
RGB
300
NA
-20°C~+70°C
6.10
280x1424
TFT061B
IPS
59.52X227.48X4.75
54.72X218.88
All Angles
ST7703I
MIPI
400
NA
-20°C~+70°C
6.86
480x1280
TFT0686B
IPS
66.41x177.19x4.5
60.22x160.59
All Angles
FL7707N
MIPI
400
NA
-20°C~+70°C
7.84
400x1280
TFT0784B
IPS
75x190x3.5
70.08x185.92
All Angles
FL7707N
MIPI
400
NA
-20°C~+70°C
8.80
480x1920
TFT088B
IPS
165x100x3.5
154.08x85.92
All Angles
OTA7290N
MIPI
400
NA
-20°C~+70°C
10.1
400x1280
TFT101B
IPS
258.4 × 79.3 × 3.0
237.6 × 74.25
All Angles
FL7707N
MIPI
500
NA
-20°C~+70°C
