Active Arear
Size (inch)
Resolution
Model No.
Product Type
Outline szie(mm)
Active Area(mm)
View Angle
Drive IC
Interface
Brightness (nits)
Touch Screen
OP(℃)
Remark

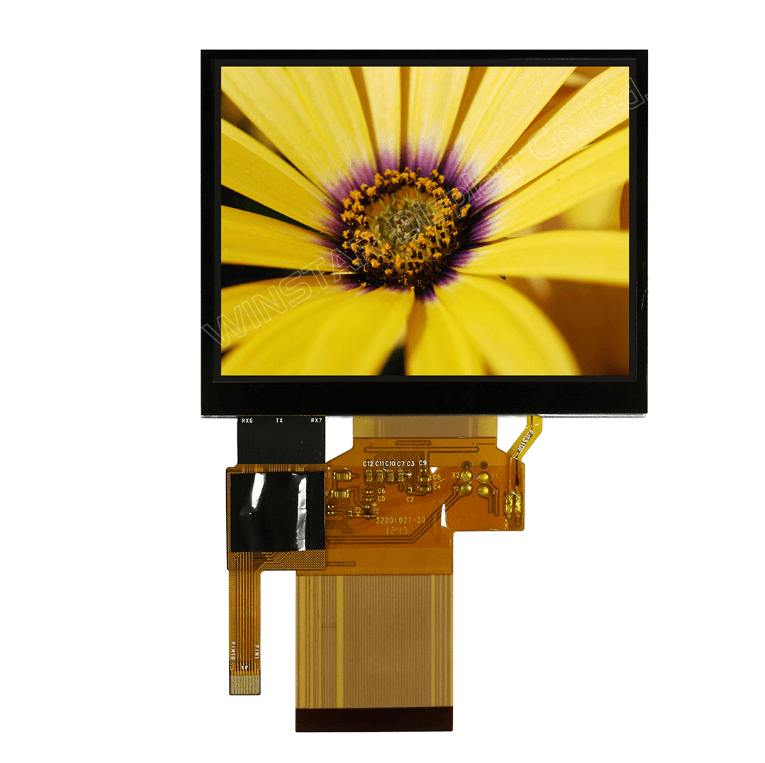

3.5
320x240
TFT035BT001
IPS
76.84x63.84x4.86
70.08 × 52.56
All Angles
ST7789
RGB
1000
NA
-30°C~+80°C
For Vehicle/Industrial Control
3.6
544X506
TFT0360BT11
IPS
98.99X94.12X7.7
89.76X83.49
All Angles
ST72566
RGB
1000
NA
-30°C~+85°C
For Vehicle/Industrial Control
4.0
720X720
TFT0360BT11
IPS
105X109.26x0.8
101.52X101.52
All Angles
ST72566
RGB
1000
NA
-30°C~+85°C
For Vehicle/Industrial Control

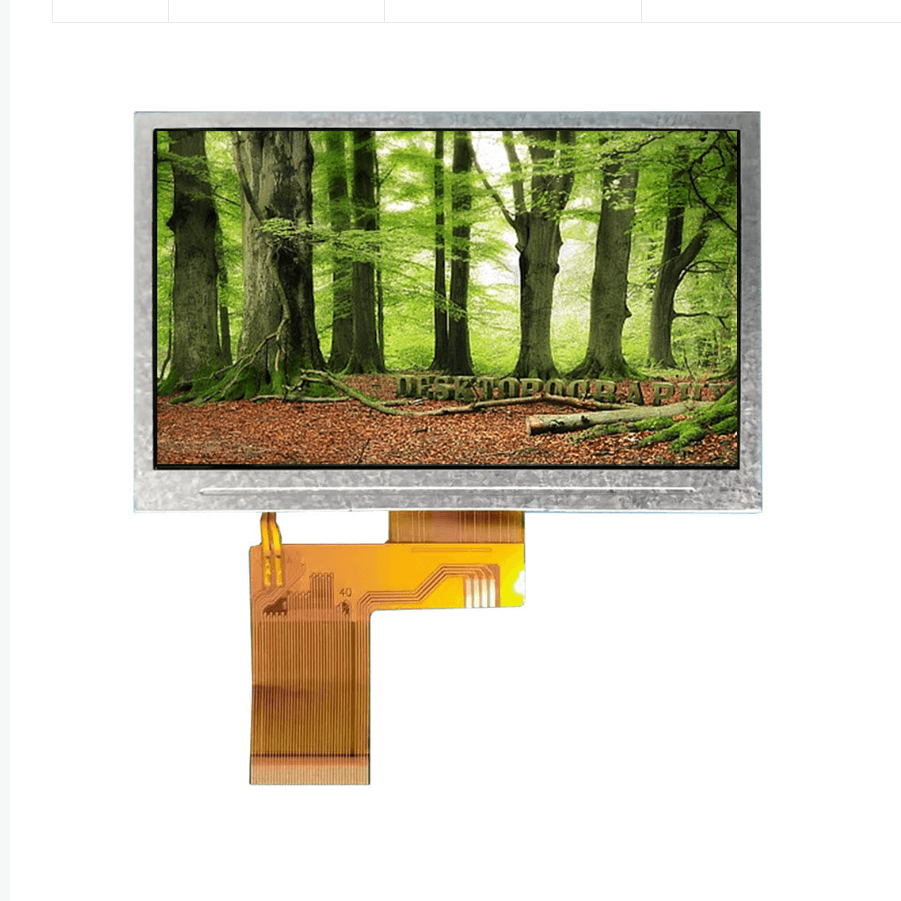

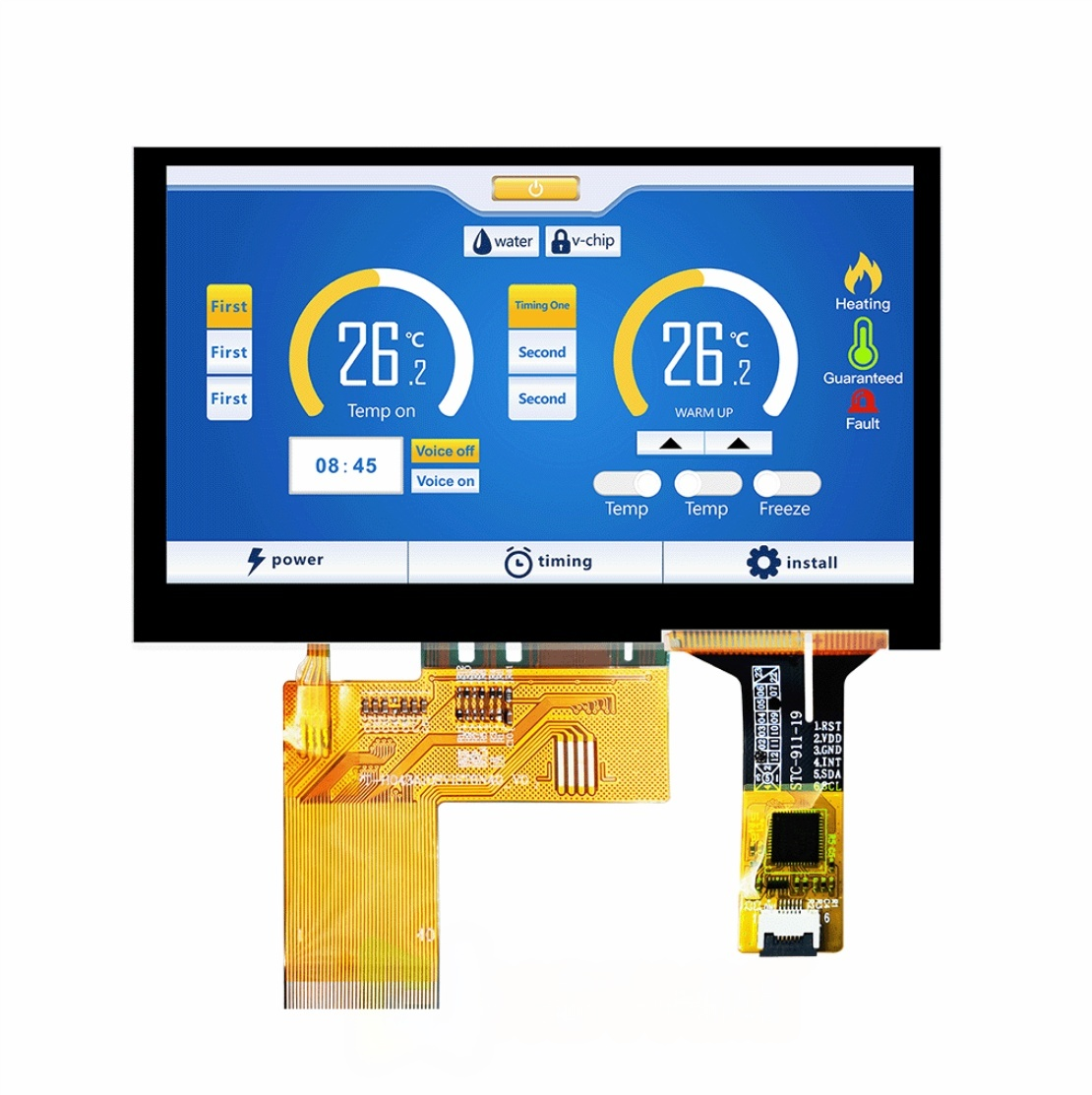

4.3
480x272
TFT043BT1
IPS
105.42x67.07x4.2
95.04x53.86
All Angles
NV3047
RGB
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control
4.3
800x480
TFT043BT2
IPS
105.42x67.07x4.2
95.04x53.86
All Angles
NV3047
RGB
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control
5.0
480x272
TFT050BT3
IPS
120.7x75.8x3
108x64.8
All Angles
NV3047
RGB
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control

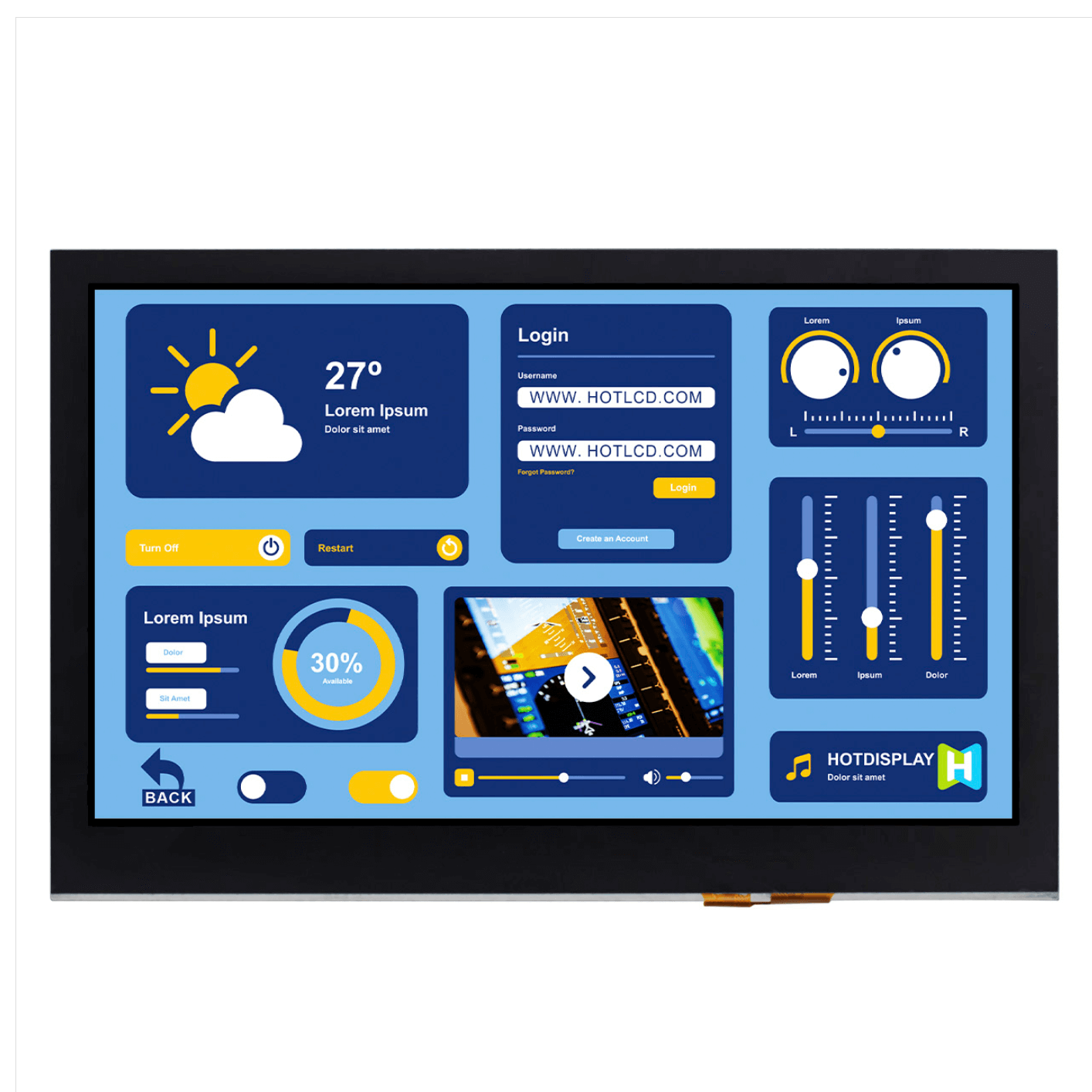

5.0
800x480
TFT050BT2
IPS
120.7x75.8x3
108x64.8
All Angles
NV3047
RGB
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control

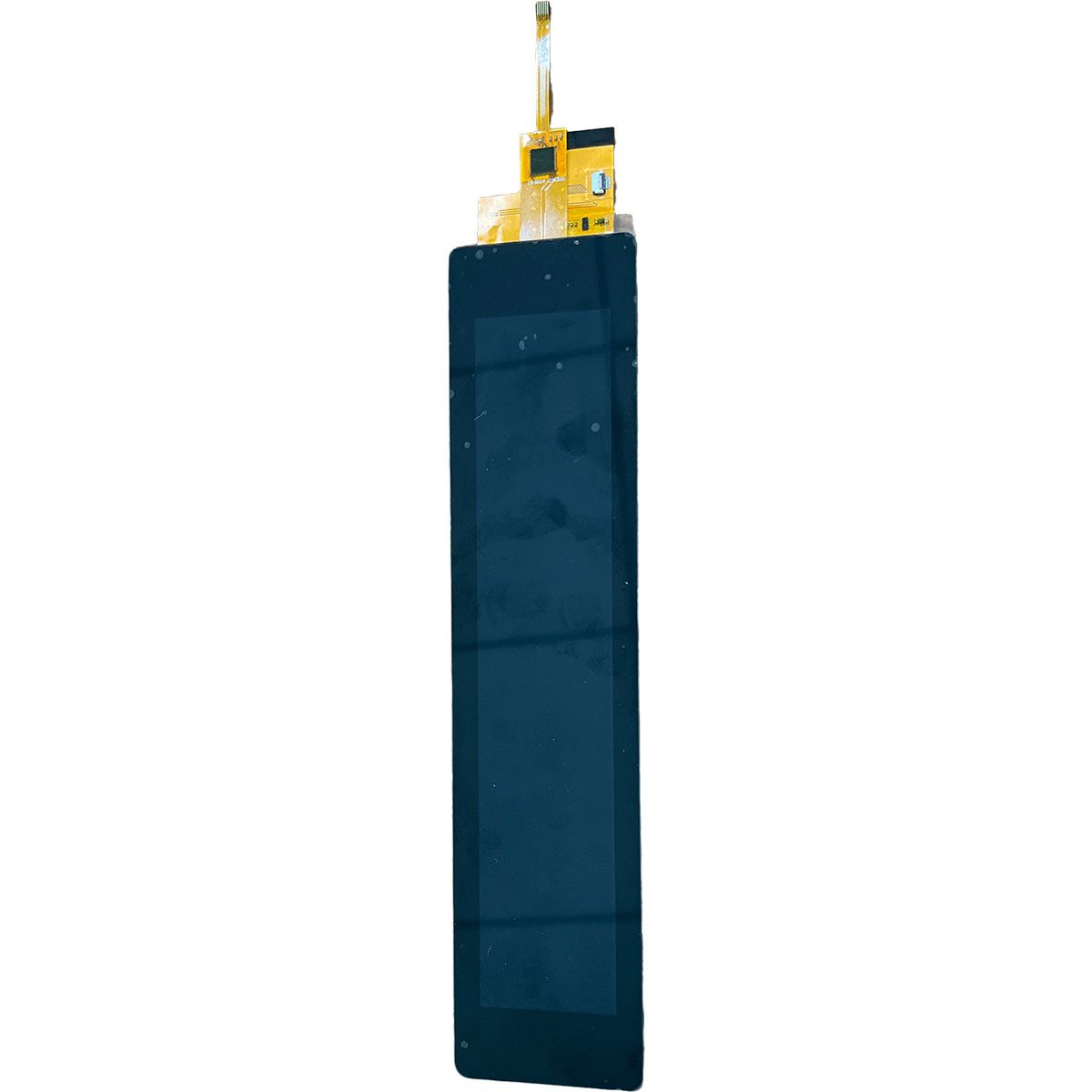

6.1
280x1424
TFT061BT2
IPS
59.52X227.48X4.75
54.72X218.88
All Angles
ST7703I
MIPI
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control

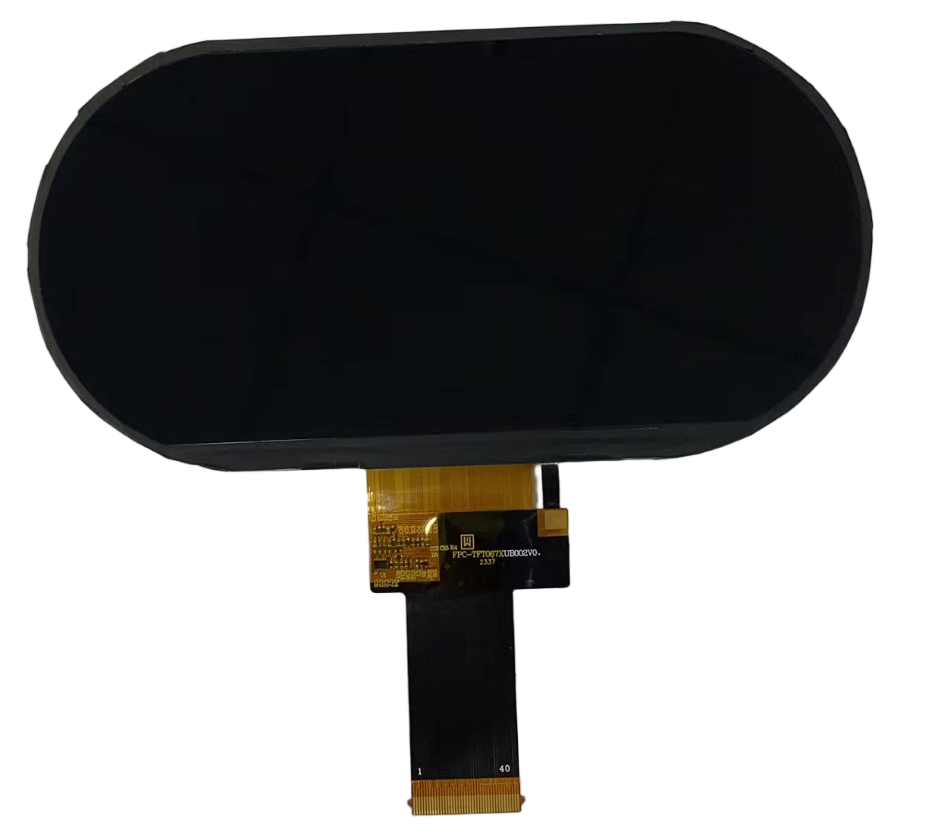

6.7
1024x600
TFT067BT2
IPS
227.48x80x6.5
218.88x73.55
All Angles
ST7703I
MIPI
1000
NA
-30°C~+85°C
Car display

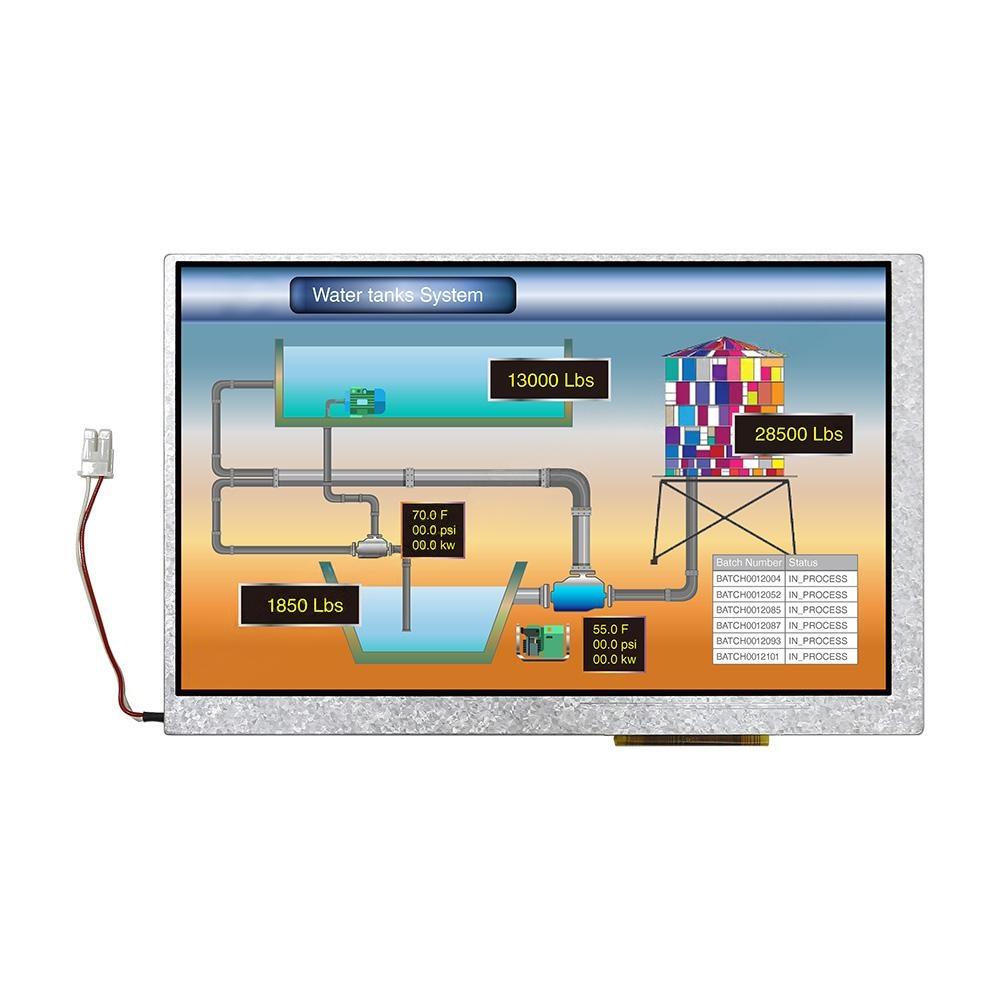

7.0
1024x600
TFT070BT2
IPS
158.21X95.32X5.4
154.21X85.92
All Angles
JD9168
MIPI
1000
CTP
-30°C~+85°C
For Vehicle/Industrial Control
