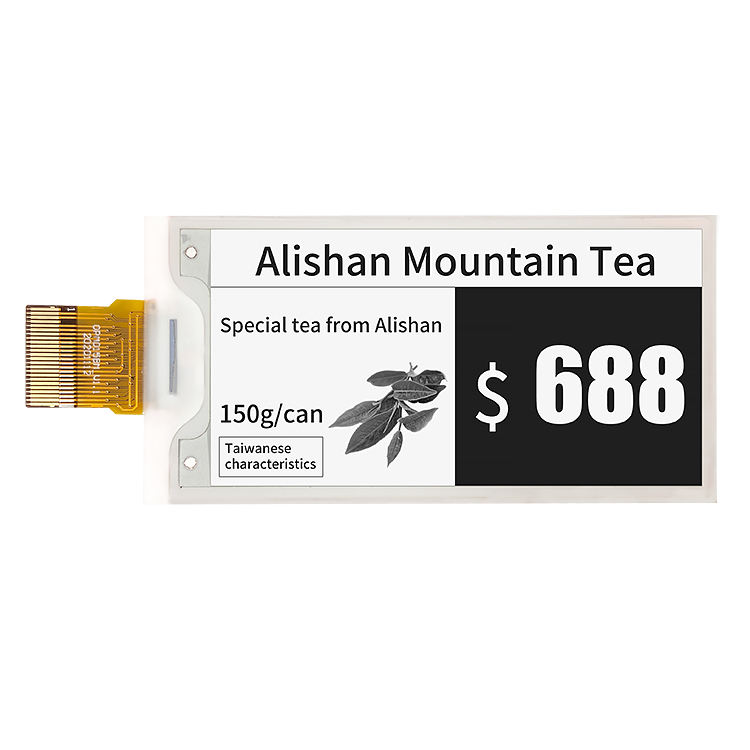

2.13inch E-paper Display Module

Model No. EPD0213B

This is a color electronic paper display module built on an active matrix TFT substrate, designed for applications requiring low power consumption and high contrast. The panel can display black, white, yellow, and red images, depending on the associated lookup table. Leveraging color epaper display technology, this technology provides exceptional reflectivity and ultra-wide viewing angles, ensuring clear and highly readable content, even in bright environments.

Product Features

· Model NO. : EPD0213B

· Size: 2.13

· Resolution: 122x250

· Shape of Display: Bar

· Interface: SPI

· Driver IC: SSD1680

· Touch Screen: 131

+ Add inquiry

Technical Specifications Table

Size
2.13
mm

Resolution
122x250
Dot

Model No.
EPD0213B

Product Type
E-Ink

Shape of Display
Bar

Outline Size
29.2×59.2×1.0
mm

Active Area
27.512×27.512
mm

View Angle
All Angles

Drive IC
SSD1680

Interface
SPI

OP
0-50℃
℃

Remark
White/Black

Application field description

Product Introduction

· Pure reflective mode for low-energy usage

· Bi-stable display technology – retains image without power

· Antiglare, hard-coated front surface for durability

· Low current deep sleep mode for energy efficiency

· On-chip display RAM for efficient data storage

· Waveforms stored in on-chip OTP for easy configuration

· Serial peripheral interface available for system integration

· On-chip oscillator for stable performance

· On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage

· I2C signal master interface to read external temperature sensors

· Available in COG package for compact integration
