Standard LCD Module
Current location: Homepage > Products > TFT LCD Module
Product Finder

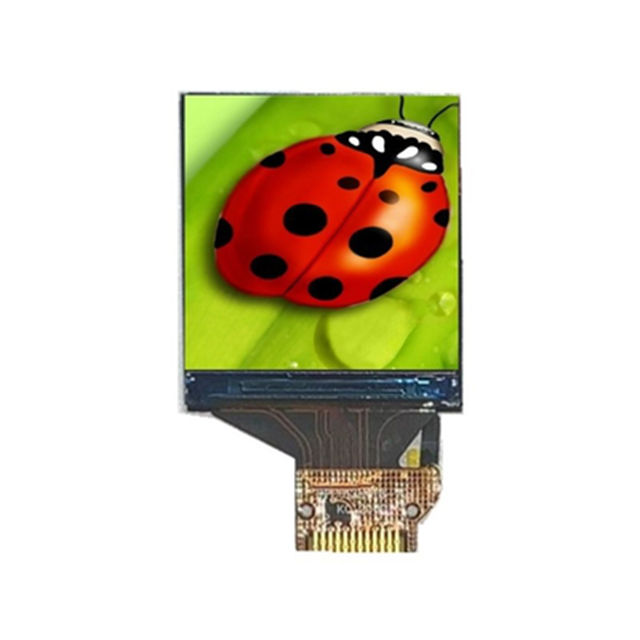

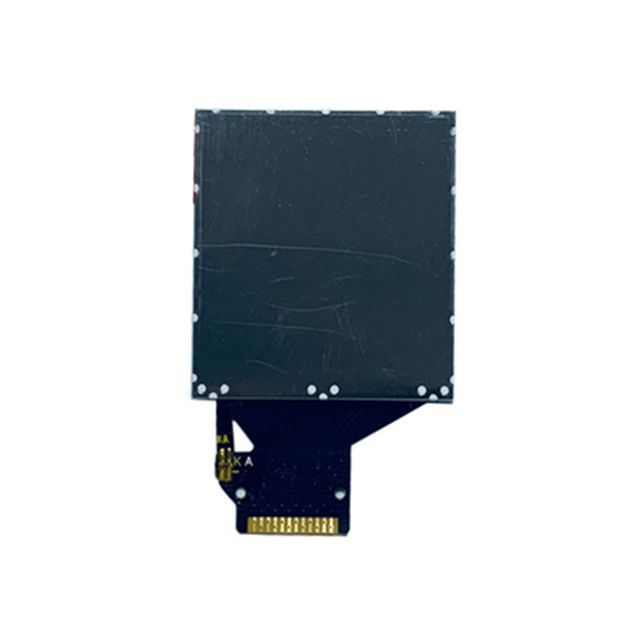

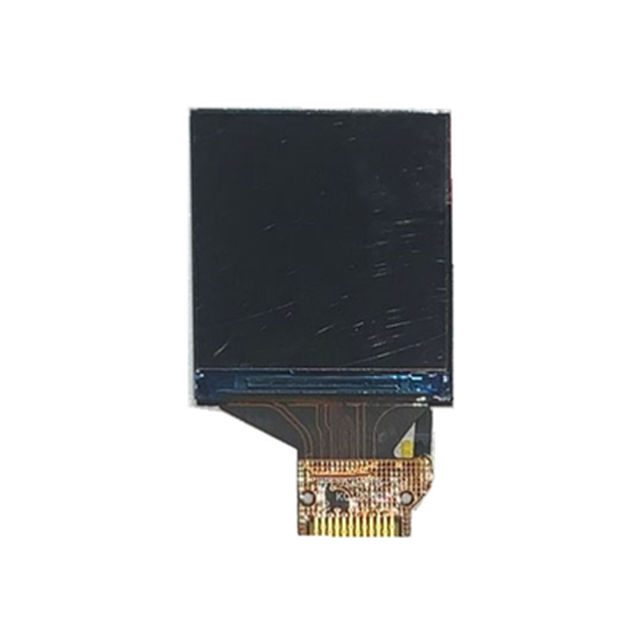

1.3 inch TFT LCD Module IPS 300 brightness 240X240 Pixels
Model No. TFT0130B
1.3 inch TFT LCD Module is a 240X240 pixel color TFT LCD module.
Product Features
· Model NO. : TFT0130B
· Size: 1.3
· Resolution: 240X240
· Shape of Display: Square
· Interface: SPI
· Driver IC: ST7789
· Touch Screen: NA
Share
+ Add inquiry
Technical Specifications Table
  • Size
  • 1.3
  • mm
  • Resolution
  • 240X240
  • Dot
  • Model No.
  • TFT0130B
  • Product Type
  • IPS
  • Shape of Display
  • Square
  • Outline Size
  • 26.16x29.22x1.5
  • mm
  • Active Area
  • 23.40x23.40
  • mm
  • View Angle
  • All Angles
  • Drive IC
  • ST7789
  • Interface
  • SPI
  • Touch Screen
  • NA
  • OP
  • -20°C~+70°C
  • ℃
  • Remark
Application field description
Product Introduction

0.85 inch TFT LCD Module is a 128×128pixel color TFT LCD module.

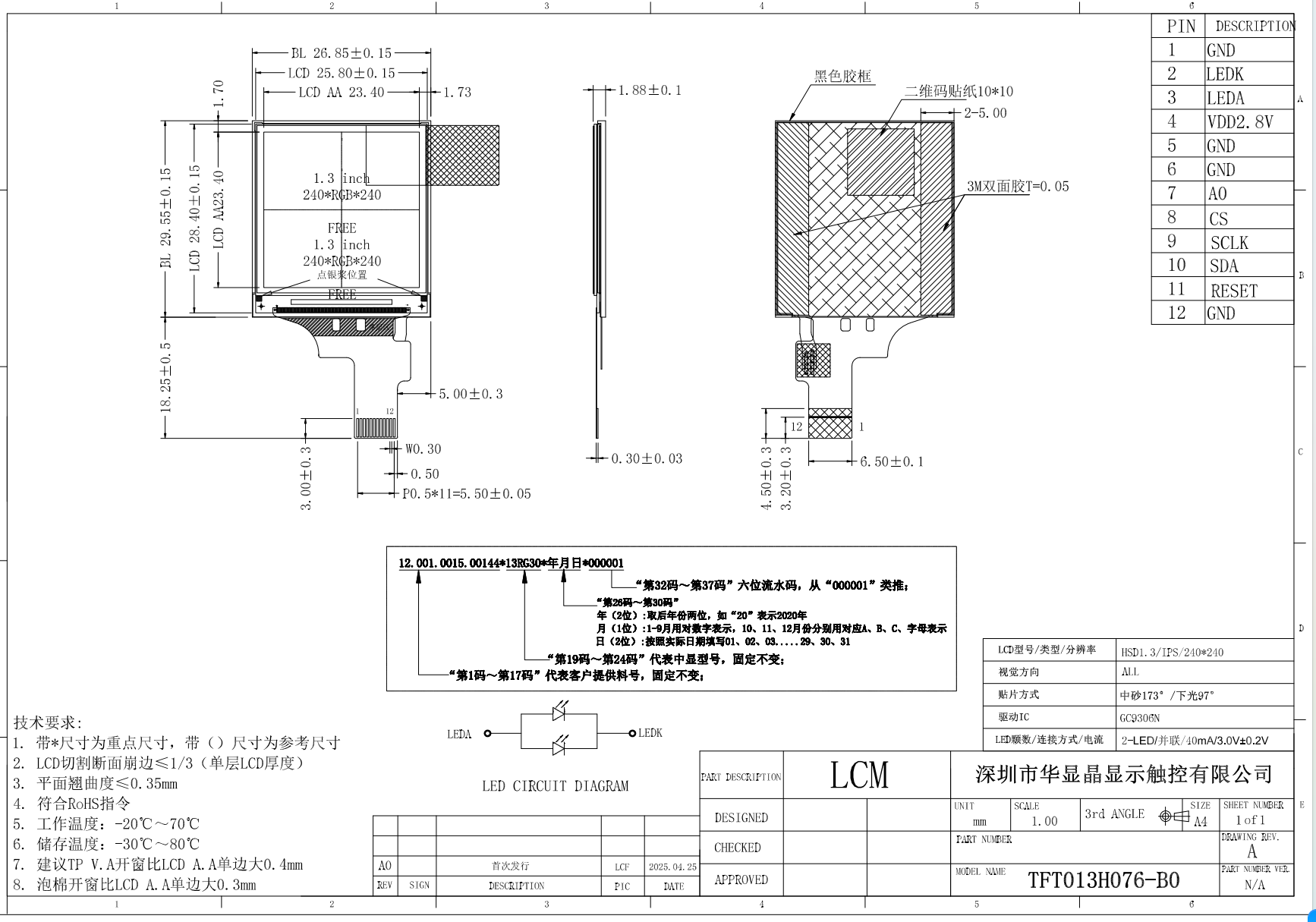

Drawing:

1.3 inch 240240 drawing.png
