• Size
• 0.42
• mm

• Resolution
• 96x54
• Dot

• Model No.
• TFT042B

• Product Type
• TN

• Shape of Display
• Rectangular

• Outline Size
• 12.32x12.09x1.50
• mm

• Active Area
• 9.22x5.18
• mm

• View Angle
• All Angles

• Drive IC
• ST7735P3

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

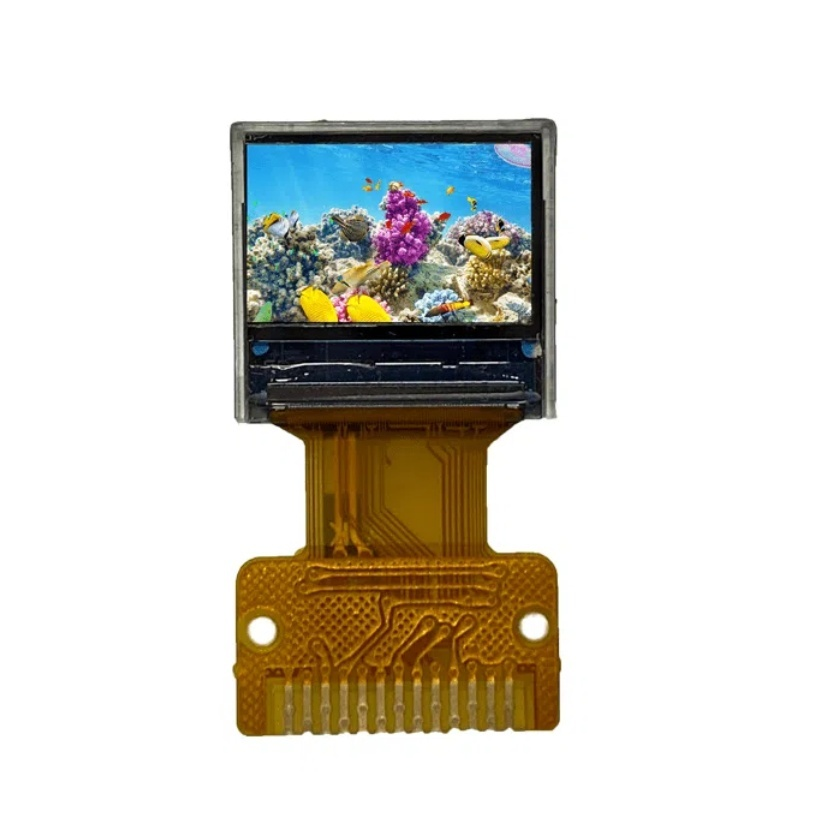

TFT042B008 – 0.42 Inch TFT LCD Display (96×64) with SPI Interface

Product Overview

The TFT042B008 is one of Hua Xian Jing’s smallest and most energy-efficient TFT modules, featuring a 0.42-inch active area and 96×64 dot resolution.

It adopts a CSTN-type TFT structure driven by the ST7735S driver IC, providing stable and bright image output despite its tiny size.

Its integrated metal-frame backlight ensures mechanical rigidity and durability while maintaining a slim 1.5 mm profile.

This display supports operation over a wide temperature range (–20°C ~ +70°C), making it suitable for handheld, embedded, and low-power products.

The SPI communication interface allows simple integration with MCUs such as STM32, ESP32, and other embedded platforms.

Key Features

• Ultra-Compact 0.42-Inch Display – Perfect for small devices requiring data indication or logo display.

• Resolution 96×64 – Provides crisp text and icon visibility in miniature designs.

• SPI Interface – Simple wiring and easy integration with most microcontrollers.

• ST7735S Driver IC – Ensures low power consumption and stable refresh performance.

• Metal Frame + Integrated Backlight – Enhances structural strength and heat dissipation.

• Wide Operating Temperature (–20°C to +70°C) – Reliable for industrial and outdoor conditions.




Applications

• Wearable Electronics – Smart rings, health trackers, and wrist devices.

• Smart Home Devices – Thermostats, security panels, and IoT indicators.

• Portable Instruments – Handheld meters, barcode scanners, and testing equipment.

• Industrial Modules – Status indicators and compact control interfaces.




Technical Specifications

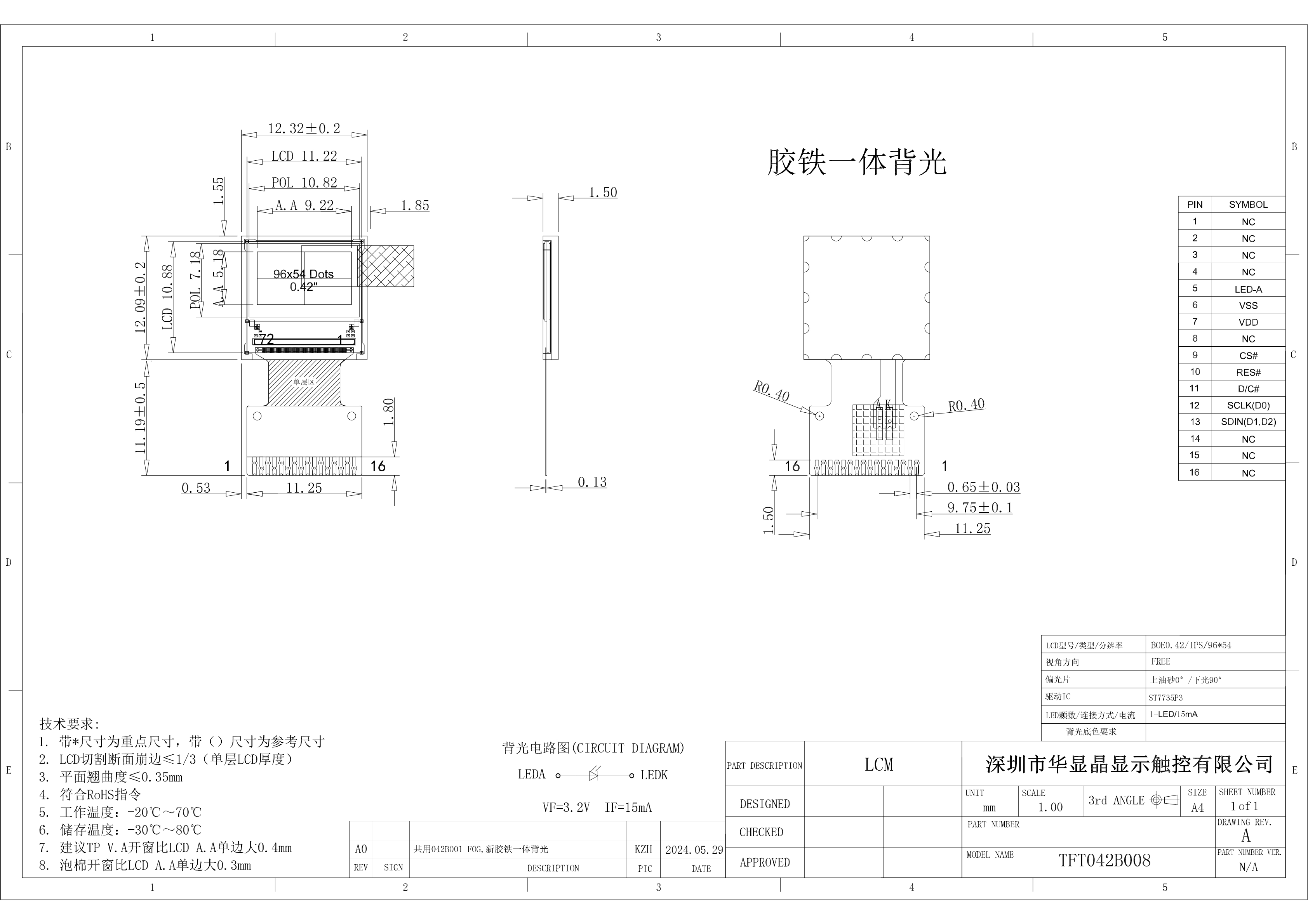

Drawing:
