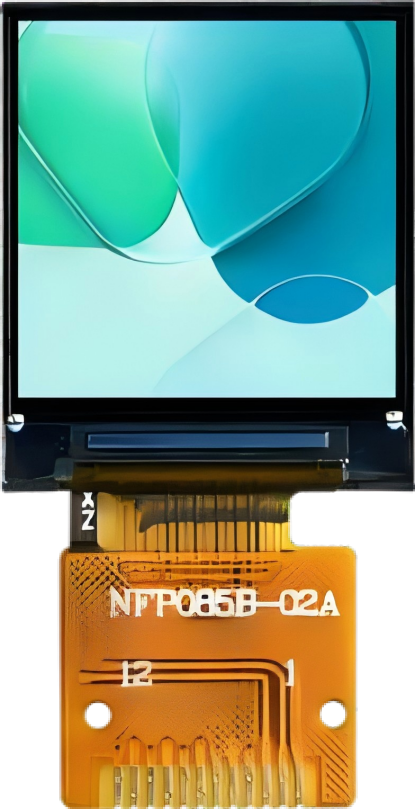

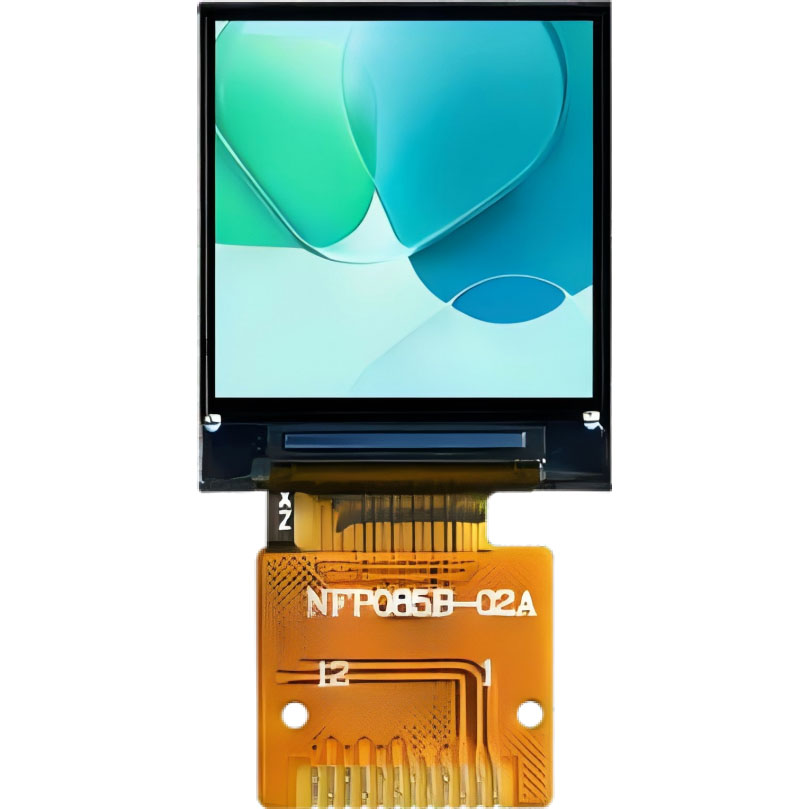

0.85 inch TFT LCD Module IPS 350 brightness 128128 Pixels
Model No. TFT085B
0.85 inch TFT LCD Module is a 128x128 pixel color TFT LCD module.
Product Features
· Model NO. : TFT085B
· Size: 0.85
· Resolution: 128x128
· Shape of Display: Square
· Interface: SPI
· Driver IC: GC9107
· Touch Screen: NA
Share
+ Add inquiry
Technical Specifications Table
  • Size
  • 0.85
  • mm
  • Resolution
  • 128x128
  • Dot
  • Model No.
  • TFT085B
  • Product Type
  • TN
  • Shape of Display
  • Square
  • Outline Size
  • 17.58x20.82x1.46
  • mm
  • Active Area
  • 15.21x15.21
  • mm
  • View Angle
  • All Angles
  • Drive IC
  • GC9107
  • Interface
  • SPI
  • Touch Screen
  • NA
  • OP
  • -20°C~+70°C
  • ℃
  • Remark
Application field description
Product Introduction

0.85 inch TFT LCD Module is a 128×128pixel color TFT LCD module.

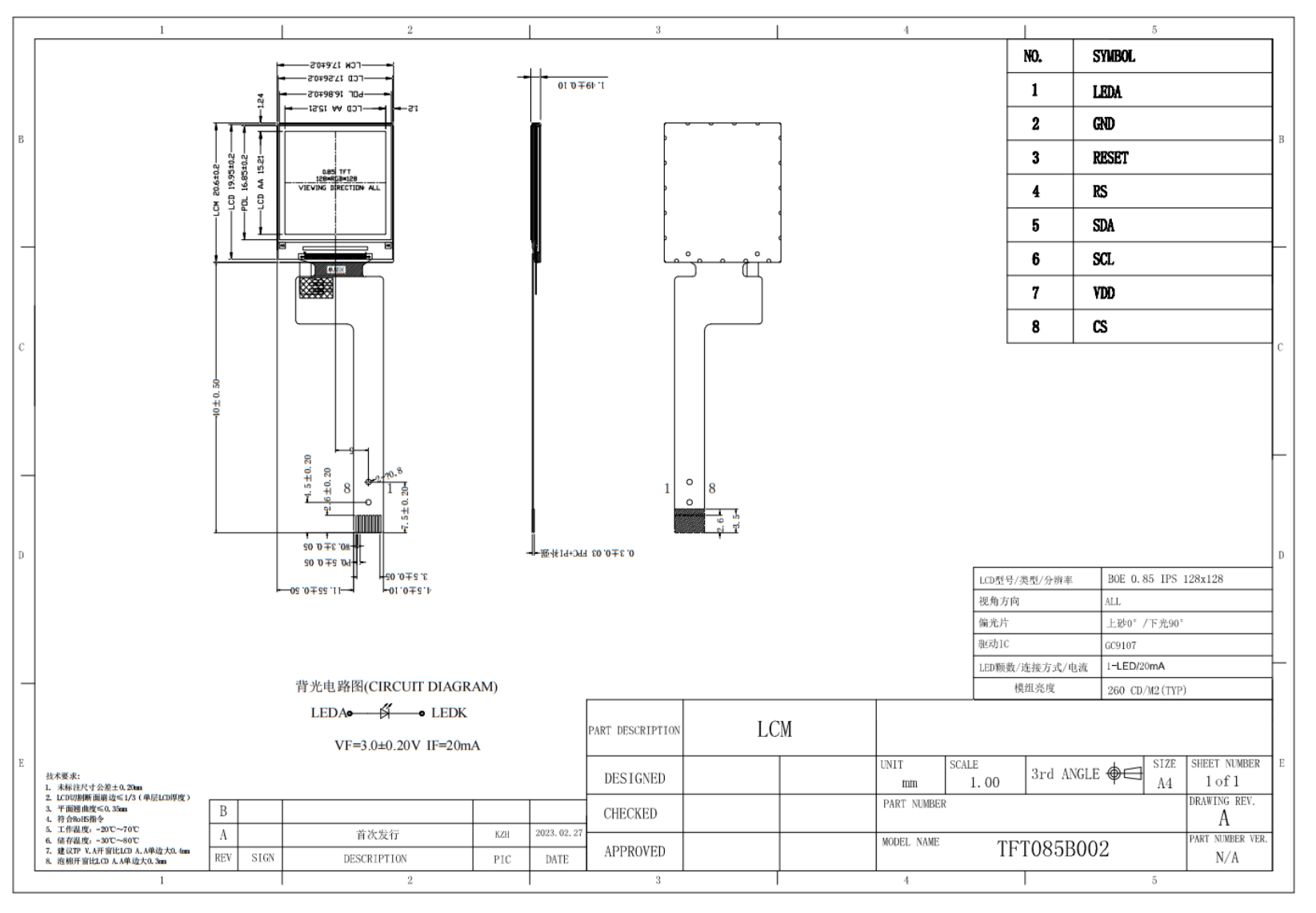

Drawing:

0.85 inch drawing.png
