• Size
• 1.4
• mm

• Resolution
• 240x240
• Dot

• Model No.
• TFT0144B

• Product Type
• IPS

• Shape of Display
• Square

• Outline Size
• 27.4x32.23x1.7
• mm

• Active Area
• 25.2x25.2
• mm

• View Angle
• All Angles

• Drive IC
• ST7789P3

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

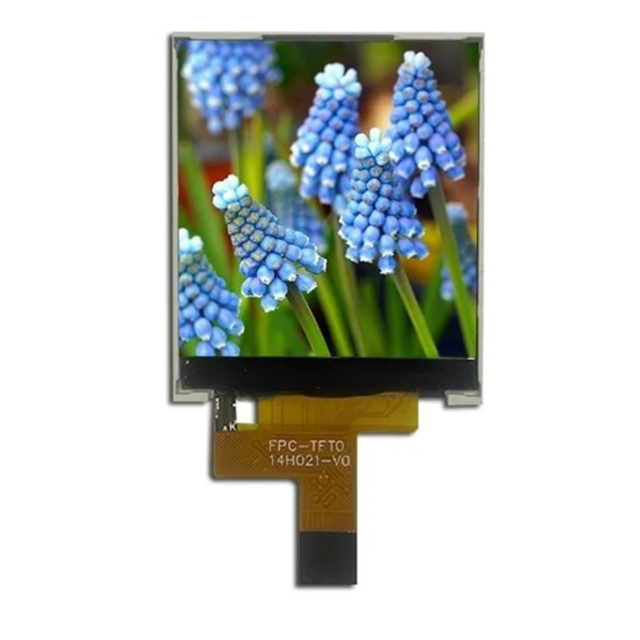

1.40-inch TFT LCD Module is a 240xRGBx240 pixel square TFT LCD module. This LCD module currently has 2 different variations.

Their same attributes are:

• Pin Number: 14 Pins;

• View Area: 25.2(H)*25.2(V)mm.

Similarly, because different customers have different needs, this 1.44-inch TFT LCD Module also has different attributes:

• LCD Type: IPS / TN;

• Resolution: 128*128 / 240*240;

• Driver IC: ST7735S / ST7735P3;

• Pin Number: 8 Pins / 14 P

• insInterface: SPI

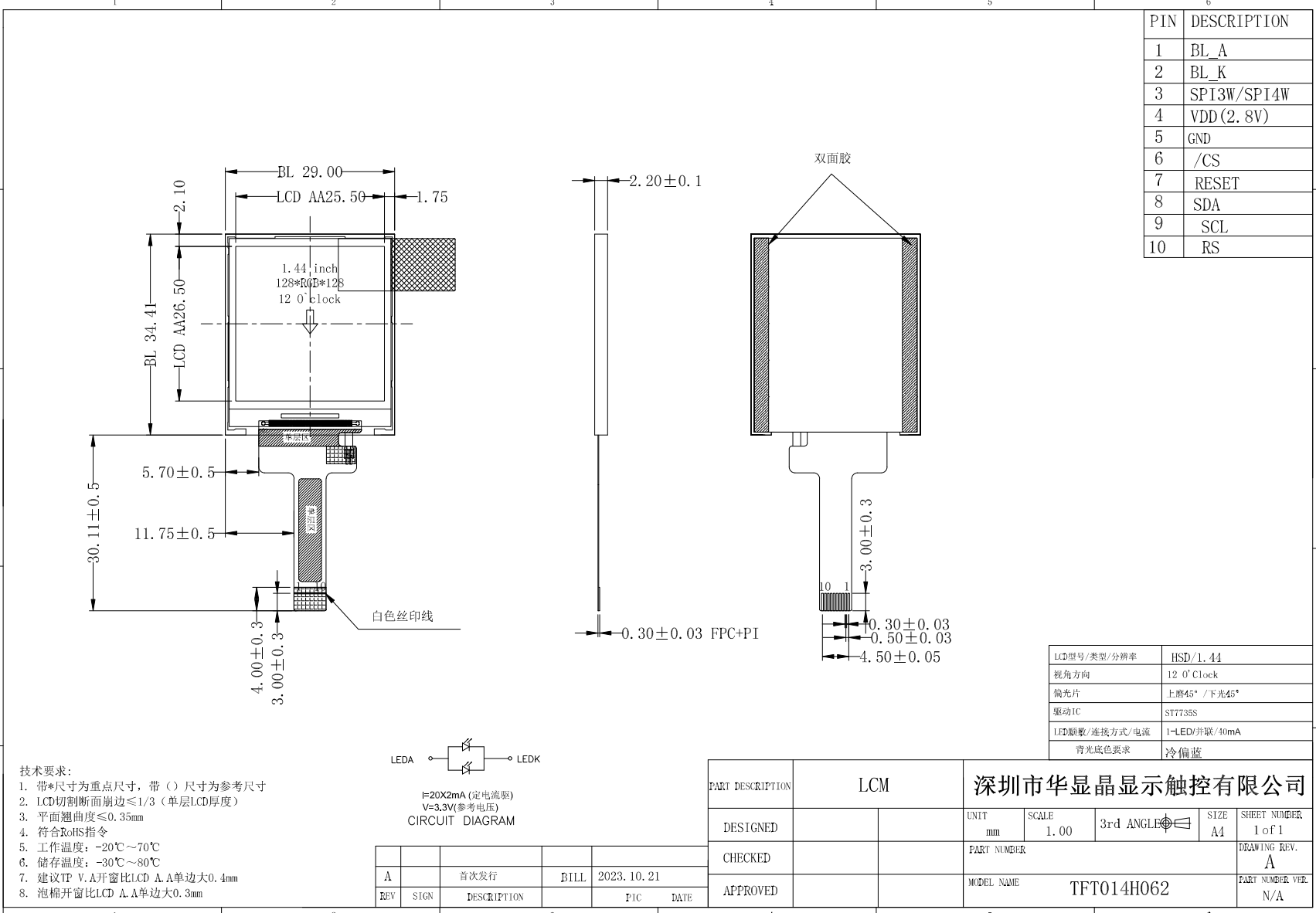

The drawing:
