0.69 inch OLED Display Module White 96X16 Pixels

Model No. HP6432-02-TSWG14P049

0.69 inch OLED Display Module is equipped with an SSD1315 driver IC and uses an 4-WIRE Serial interface or I2C interface.

Product Features

· Model NO. : HP6432-02-TSWG14P049

· Size: 0.69

· Resolution: 96X16

· Shape of Display: Bar

· Interface: SPI

· Driver IC: SSD1315

· Touch Screen: Without

+ Add inquiry

Technical Specifications Table

Size
0.69
mm

Resolution
96X16
Dot

Model No.
HP6432-02-TSWG14P049

Product Type
Mono OLED

Shape of Display
Bar

Outline Size
26.3 x 8.0 x1.2
mm

Active Area
17.26x3.18
mm

View Angle
All Angles

Drive IC
SSD1315

Interface
SPI

Touch Screen
Without

OP
-40°C~+70°C
℃

Remark

Application field description

Perfect for wearable devices where a compact and colorful display is needed. Can be used in portable music players for a sleek user interface. Suitable for small home automation displays to show status and controls. Ideal for low-power applications where energy efficiency is crucial.

Product Introduction

0.69 inch OLED Display Module 96*16 driver IC SSD1315 White Monochrome OLED display IC I2C For Car Watch Medical Equipment

This OLED module currently has 3 different variations. Their same attributes are:

Dot matrix: 96×16;
Active Area: 17.26×3.18mm;
View Area: 18.86×4.78mm;
Color: White;
Interface: I2C.

Similarly, different customers have different needs, and this 0.69 inch OLED Display Module has different attributes:

Panel Size: 26.3×8×1.227mm / 24×6.9×1.25mm;
Pin Number: 8 Pins / 14 Pins;
Driver: SSD1306BZ / SSD1312.

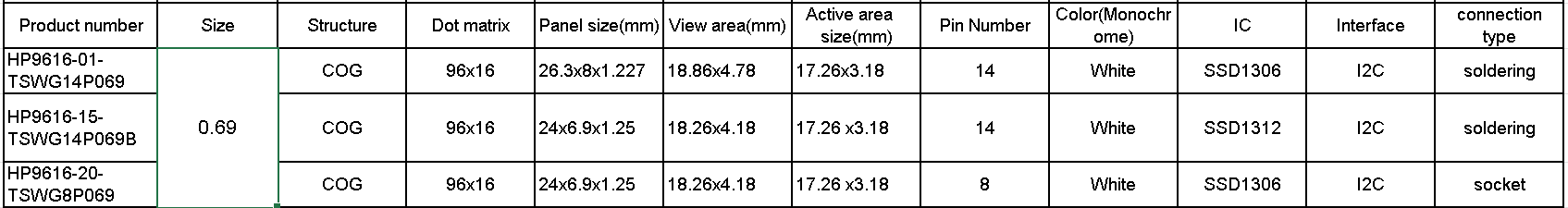

0.69 inch 6448 models.png
