• Size
• 0.66
• mm

• Resolution
• 64X48
• Dot

• Model No.
• HP7240-01-TSWG16P042

• Product Type
• Mono OLED

• Shape of Display
• Rectangular

• Outline Size
• 12x11x1.25mm
• mm

• Active Area
• 9.196x5.18mm
• mm

• View Angle
• All Angles

• Drive IC
• SSD1306

• Interface
• SPI

• Touch Screen
• Without

• OP
• -40°C~+70°C
• ℃

• Remark

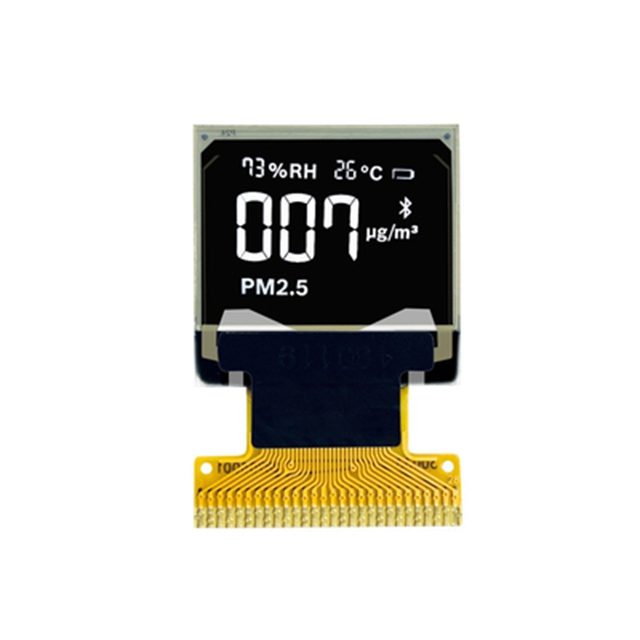

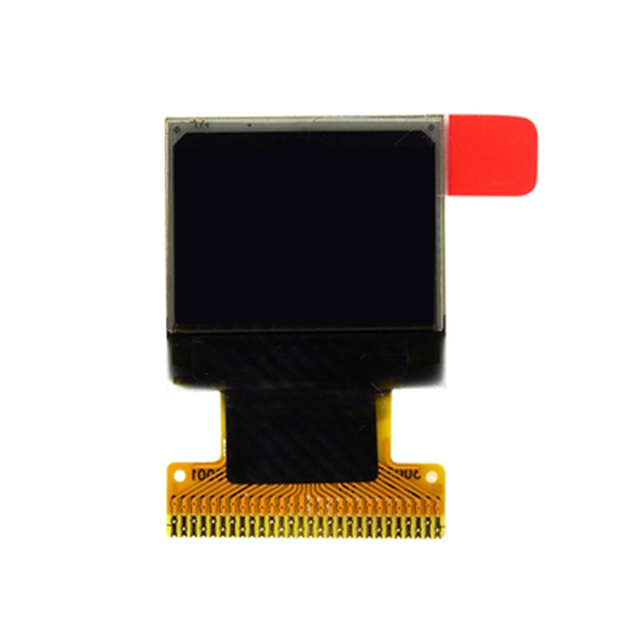

The 0.66 inch OLED Display Module is a compact and efficient display solution. With a resolution of 64x48, it offers clear and detailed visuals. The display features a 28PIN SPI interface and a brightness of 120. It is driven by the SSD1306 driver IC, ensuring reliable performance.

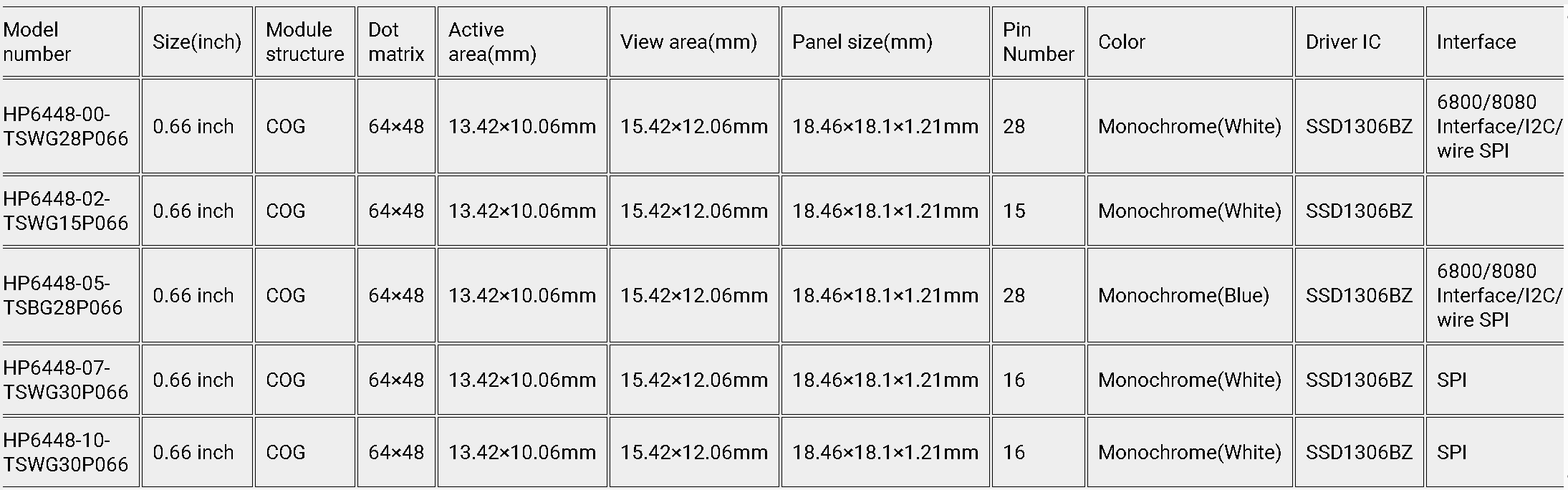

This OLED module currently has 4 different variations. Their same attributes are:

• Dot matrix: 64×48;

• Active Area: 13.42×10.06mm;

• View Area: 15.42×12.06mm;

• Panel Size: 18.46×18.1×1.21mm;

• Driver: SSD1306BZ.

Similarly, different customers have different needs, and this 0.66 inch OLED Display Module has different attributes:

• Pin Number: 15 Pins / 28 Pins / 30 Pins;

• Color: White / Blue;

• Interface: 6800/8080 Interface / 4-wire serial interface / I2C.
