• Size
• 0.42
• mm

• Resolution
• 72x40
• Dot

• Model No.
• HP7240-01-TSWG16P042

• Product Type
• Mono OLED

• Shape of Display
• Rectangular

• Outline Size
• 12x11x1.25mm
• mm

• Active Area
• 9.196x5.18mm
• mm

• View Angle
• All Angles

• Drive IC
• SSD1315

• Interface
• SPI

• Touch Screen
• Without

• OP
• -40°C~+70°C
• ℃

• Remark

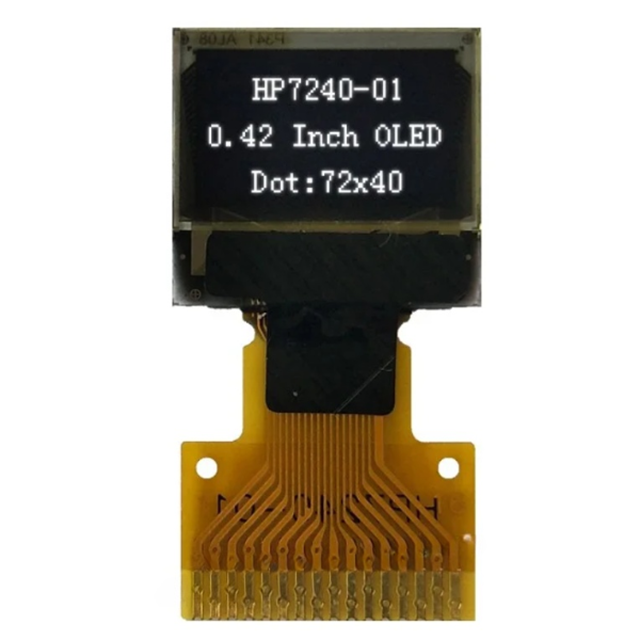

0.42 inch OLED Display Module resolution 72*40 driver IC SSD1315 White OLED display For Car Watch Medical Equipment

Similarly, HuaXianJing also provides a variety of options for customers with other needs. You can customize these attributes of the 0.42 inch TFT LCD Module:

•Resolution: Customization;

•Driver IC: Customization;

•Outline Size: Customization;

•View area: Customization;

•Pin Number: Customization;

•Interface: Customization.

Product Characteristics:

• Offers high contrast and vivid colors typical of OLED technology.

• The 72*40 resolution provides clear and clear visuals.

• The SSD1315 driver IC ensures stable performance and efficient power consumption.

• The yellow color gives a unique and eye-catching look.
