• Size
• 1.3
• mm

• Resolution
• 128x64
• Dot

• Model No.
• HP12864-02-KSWG30P130

• Product Type
• Mono OLED

• Shape of Display
• Rectangular

• Outline Size
• 34.5x23x1.5
• mm

• Active Area
• 29.42x14.7
• mm

• View Angle
• All Angles

• Drive IC
• SSD1316Z

• Interface
• I2C

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

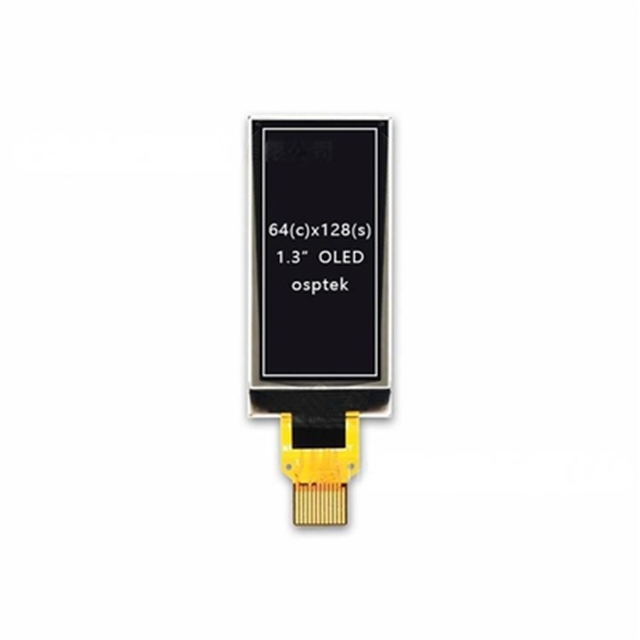

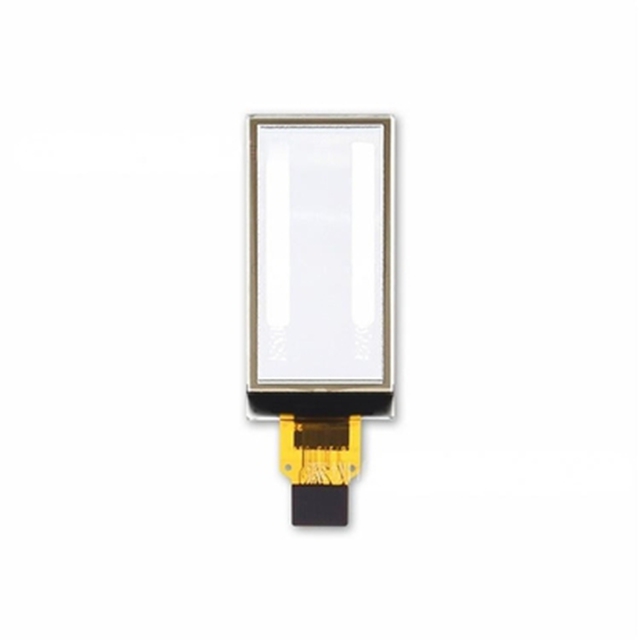

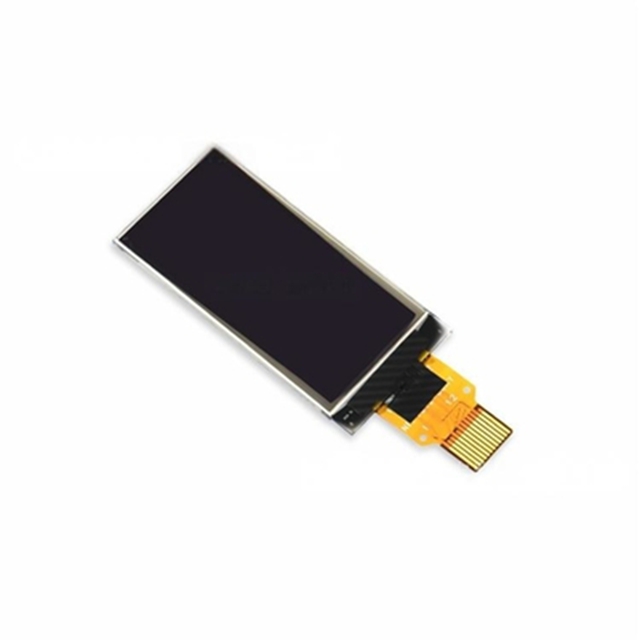

1.30-Inch 128×64 Monochrome OLED Display Module

This 1.30-inch monochrome OLED display module offers exceptional clarity, ultra-high contrast, and wide viewing angles, making it a premium choice for compact embedded interfaces. With a r

esolution of 128×64 dots and a sharp dot pitch of 0.23 × 0.23 mm, the display delivers crisp text and graphical symbols even in miniaturized layouts. The OLED’s self-emissive structure provides true black, high brightness, and outstanding readability under diverse lighting conditions without requiring a backlight, resulting in ultra-low power consumption.

The display is driven by the SH1106G controller, a widely adopted IC known for its strong compatibility with microcontrollers such as STM32, ESP32, Arduino, and many industrial-grade MCUs. It supports common serial and parallel communication modes, enabling flexible system integration. The module provides a generous active area of 29.42 × 14.70 mm within a compact outline of 34.5 × 23.0 mm, making it suitable for wearables, handheld instruments, smart appliances, and compact UI panels.

Thanks to OLED technology, the module achieves high contrast ratios, wide viewing angles approaching 180°, and instantaneous response times. The absence of backlight enables a very thin profile (~1.50 mm total thickness), which is ideal for space-critical applications. With a working temperature range from –20°C to +70°C and ROHS-compliant materials, the module is designed for reliability and environmental safety in industrial and consumer applications.

Features

1.30-inch white OLED panel with 128×64 resolution

Self-emissive technology with high brightness and deep contrast

SH1106G driver IC with flexible MCU compatibility

Ultra-thin profile without backlight

Excellent readability with 180° wide viewing angles

Low power consumption suitable for battery-powered devices

Compact outline and optimized active area for miniaturized designs

Applications

Wearable smart devices

Handheld measurement tools

IoT terminals and smart home interfaces

Industrial control displays

Medical portable devices

Compact consumer electronic displays

Technical Specifications
