Technical Specifications Table

• Size
• 3.5
• mm

• Resolution
• 480x320
• Dot

• Model No.
• TFT028B

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 54.48x84.7x8.7
• mm

• Active Area
• 48.96x73.44
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• RTP

• OP
• -20°C~+70°C
• ℃

• Remark

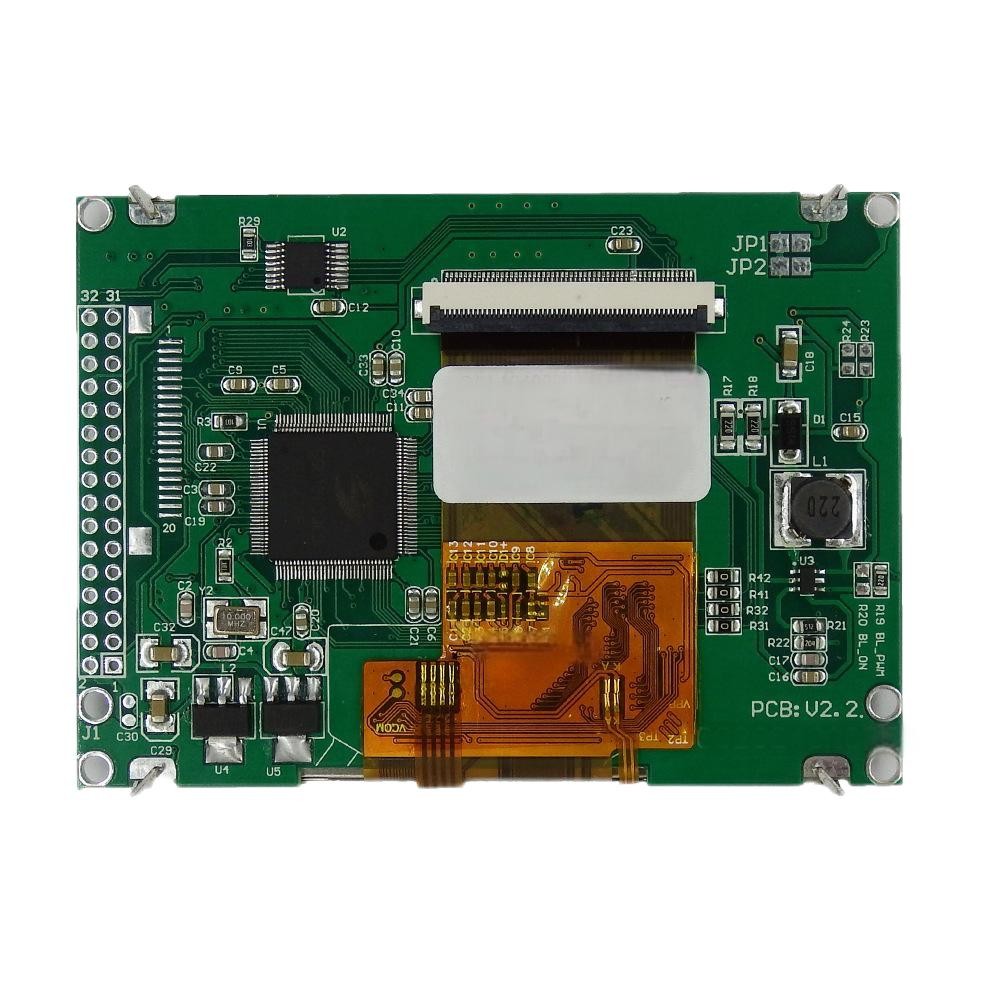

• With Control Board

Application field description

In industrial control panels. The compact 3.5-inch size fits well into the limited space available on control boxes, while the resistive touch allows operators to make quick adjustments and selections even with gloved hands. The SPI interface can communicate with microcontrollers easily, and the display resolution is sufficient to show important status information, such as temperature readings, pressure levels, and machine operating modes. For handheld gaming consoles. The 480 * 320 resolution can handle simple yet engaging game graphics, and the resistive touch enables responsive gameplay controls. The 300 brightness is adequate for indoor gaming sessions, and the SPI interface helps in keeping the device compact and cost-effective. In home automation control panels. Users can use the touch screen to control lights, thermostats, and other smart home devices. The clear display shows device status and settings, the resistive touch makes it easy for all family members to use, and the SPI interface allows for seamless connection to the home automation hub. The brightness is suitable for use in typical home lighting conditions.

Product Introduction

This is a high-quality product designed to meet the needs of businesses looking to 3.5 inch 480x320 UART  TFT LCD IPS display and touch module Industrial LCD modules. This product offers a range of features and benefits that make it an ideal choice for businesses of all sizes.

The 2.4 inch integrated serial port screen is a serial port screen module with resolution of 480x320. It use UI Editor software, it can display a variety of content on the screen. In hardware, it provides UART interface mode, easy to use. In software, it can design beautiful user UI, and the users don’t need expensive hardware cost and long development time for equipment instrument configuration LCD display screen. Integrated serial port screen rich on-chip resources and powerful UI design are the first choice for the customer’s display solution.

The MCU is embedded with a high-performance 32-bit RISC core operating at a maximum of 200MHz, high-speed memory, RTC timer, support Little VGL GUI graphics library, with good display fluency and excellent cost performance.

Smart intelligent HMI TFT serial port LCD module is based on the front-end technology "configuration technology" of the current LCD industry. Users only need to use a serial port and can easily realize text, picture, audio and video, curve, QR code, instrument, animation, progress bar, data record and touch, etc. Functional control and data transmission by RS485, RS232 or simpler 51 single-chip UART interface.

It does not need to occupy a large amount of resources such as the controller interface and storage space like the old-fashioned display screen, and also improves the anti-interference ability of the product.

3.5-inch TFT LCD Module is a 240xRGBx320 pixel color TFT LCD module. This LCD module currently has 4 different variations. Their same attributes are:

• LCD Type: IPS, Full Color;

• Pin Number: 24 Pins;

• Interface: MCU.

Similarly, because different customers have different needs, this 3.5-inch TFT LCD Module also has different attributes:

• Resolution: 240*320 /320*480;

• Driver IC: GC9307N / ILI9488;

• Outline Size: 54.5(H)*83(V)*2.15(T)mm /  54.46(H)*82.94(V)*2.15(T)mm / 54.46(H)*82.94(V)*2.3(T)mm;

• View Area: 51.27(H)*68.36(V)mm / 48.96(H)*73.44(V)mm.
