• Size
• mm

• Resolution
• 16x2
• Dot

• Model No.
• HSM1602B

• Product Type
• Mono COB

• Shape of Display
• Rectangular

• Outline Size
• 80×36×11mm
• mm

• Active Area
• 64.5×14.5mm
• mm

• View Angle
• 6/12 o'clock

• Drive IC
• AIP31066

• Interface

• Touch Screen
• Without

• OP
• -20°C~+70°C
• ℃

• Remark

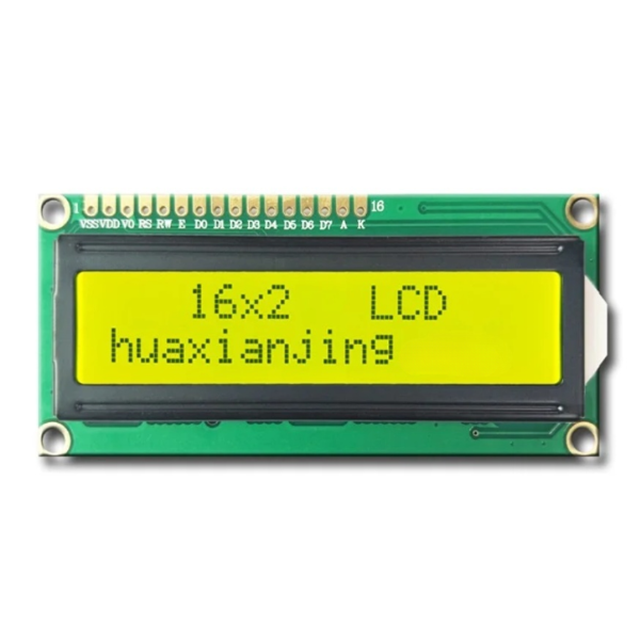

The 16×2 Monochrome Character LCD Module is a 16×2 yellow-green backlight LCD. This LCD module currently has 12 different variations. Their same attributes are:

• Driver IC: AIP31066.

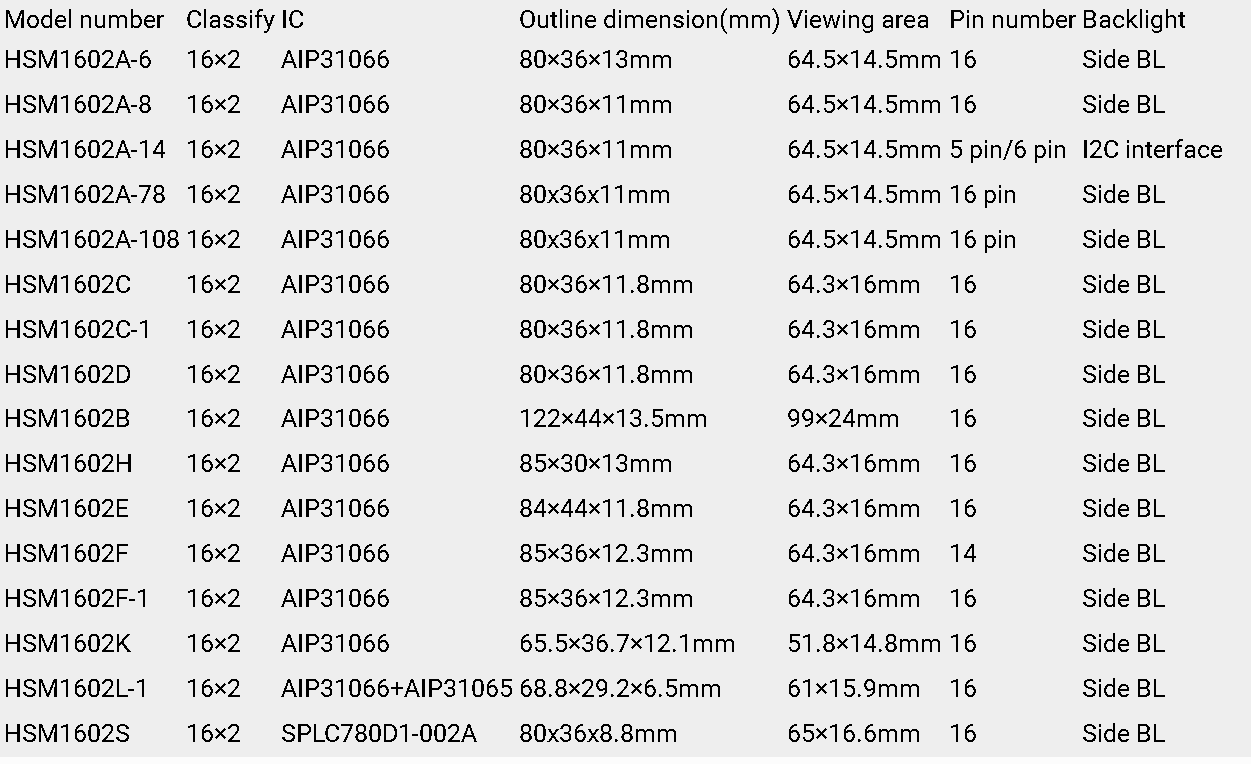

Similarly, different customers have different needs, this 16×2 Monochrome Character LCD Module has different attributes:

• Outline Dimension: 80×36×13mm / 80×36×11mm / 80×36×11.8mm / 122×44×13.5mm / 85×30×13mm / 84×44×11.8mm / 85×36×12.3mm / 65.5×36.7×12.1mm;

• View Area: 64.5×14.5mm / 64.5×14.5mm / 64.3×16mm;

• Pin Number: 14 Pins / 16 Pins / 5 Pins / 6 Pins;

• Backlight: Blue / Yellow Green / Grey.
