• Size
• 2.4
• mm

• Resolution
• 240x320
• Dot

• Model No.
• TFT024B

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 50x69.20x2.25
• mm

• Active Area
• 43.20x57.6
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• RTP

• OP
• -20°C~+70°C
• ℃

• Remark
• With Control Board

This 2.4 inch LCD is a high-quality product designed to meet the needs of businesses looking to 2.4 inch 240x320 UART  TFT LCD IPS display and touch module Industrial LCD modules. This product offers a range of features and benefits that make it an ideal choice for businesses of all sizes.

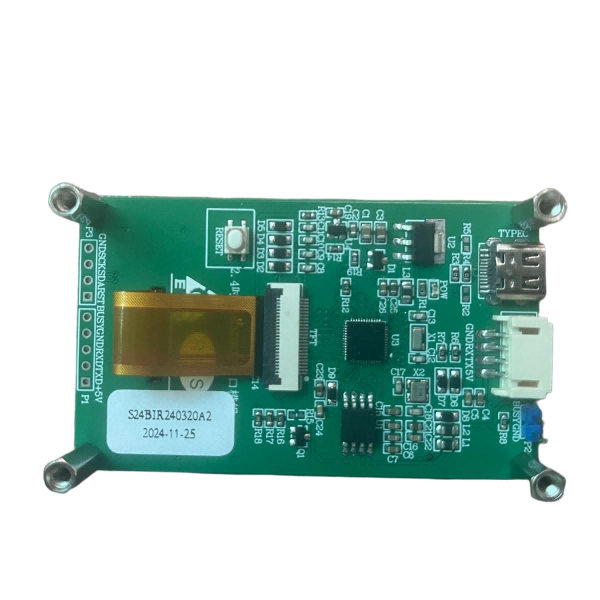

The 2.4 inch integrated serial port screen is a serial port screen module with resolution of 320x240. It use UI Editor software, it can display a variety of content on the screen. In hardware, it provides UART interface mode, easy to use. In software, it can design beautiful user UI, and the users don’t need expensive hardware cost and long development time for equipment instrument configuration LCD display screen. Integrated serial port screen rich on-chip resources and powerful UI design are the first choice for the customer’s display solution.

The MCU is embedded with a high-performance 32-bit RISC core operating at a maximum of 200MHz, high-speed memory, RTC timer, support Little VGL GUI graphics library, with good display fluency and excellent cost performance.

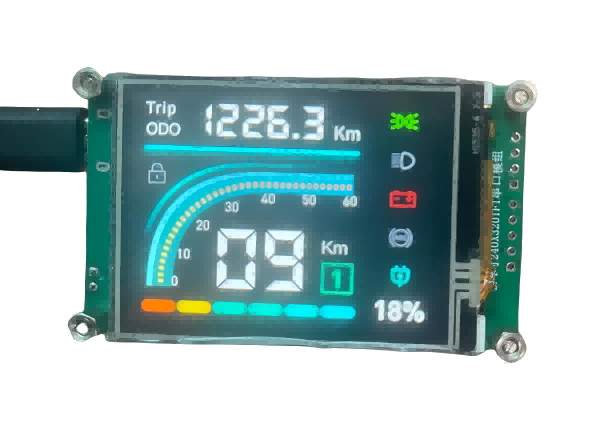

Smart intelligent HMI TFT serial port LCD module is based on the front-end technology "configuration technology" of the current LCD industry. Users only need to use a serial port and can easily realize text, picture, audio and video, curve, QR code, instrument, animation, progress bar, data record and touch, etc. Functional control and data transmission by RS485, RS232 or simpler 51 single-chip UART interface.

It does not need to occupy a large amount of resources such as the controller interface and storage space like the old-fashioned display screen, and also improves the anti-interference ability of the product.

UI_Editor development software is independently developed by our company and compatible with this TFT LCD module series. It is mainly designed for customers to quickly develop products and touch screen human-computer interaction interface. It has simple development, flexibility, no operating system and fast running speed. Extremely reliable and stable, it is highly praised by customers.

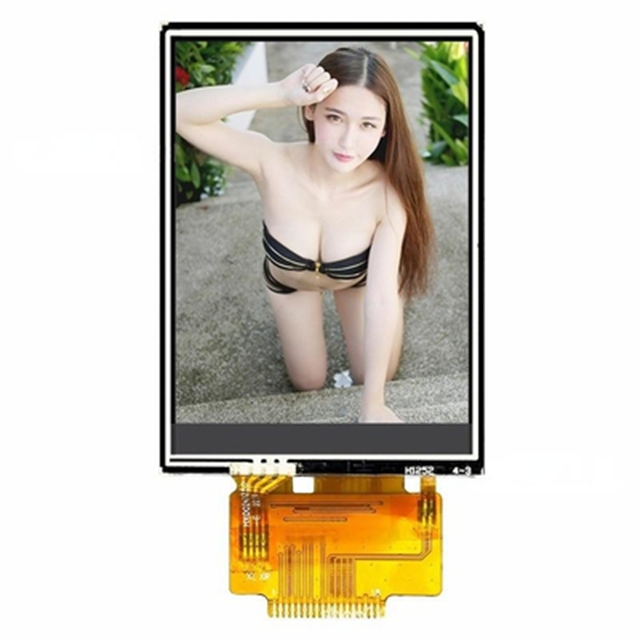

2.4 inch LCD touch screen SPI interface 300 brightness 240*320 resolution Driver IC ILI9340X

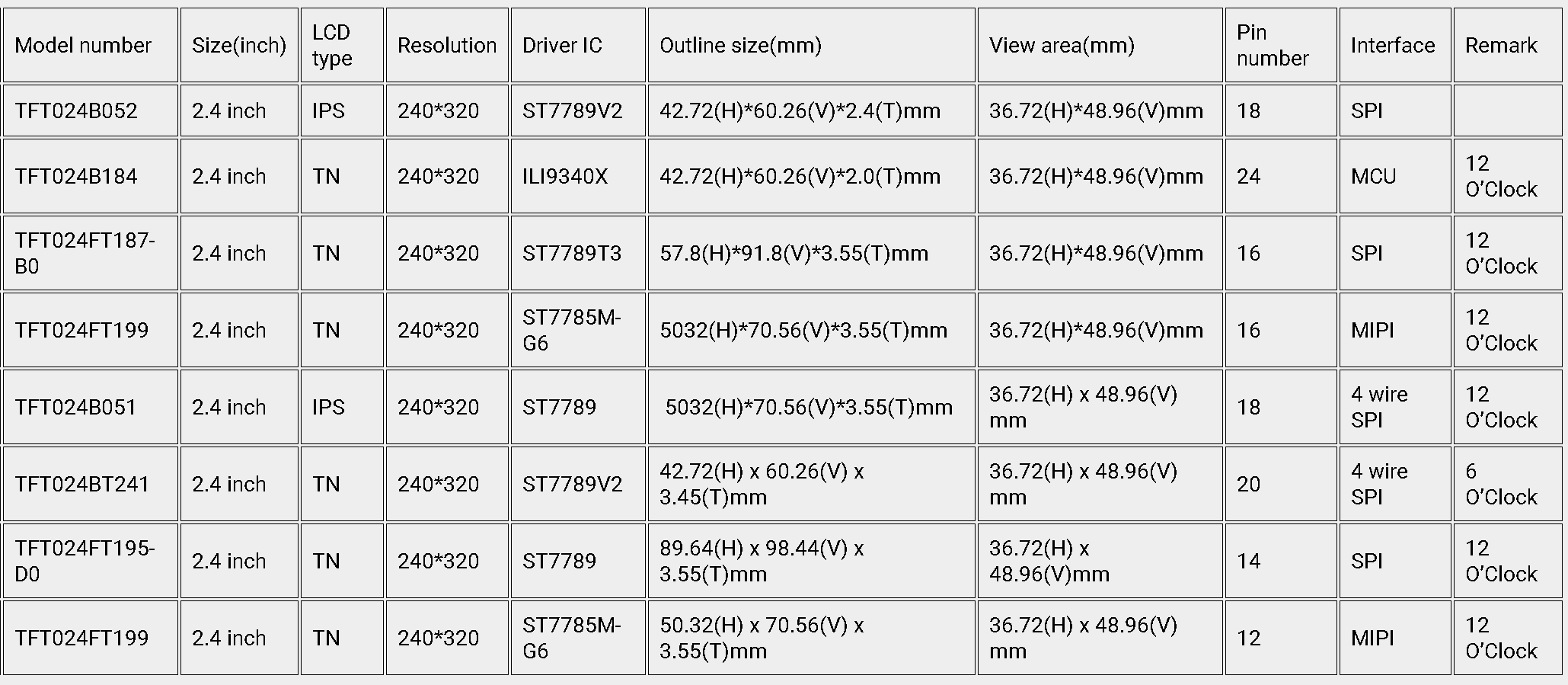

This LCD module currently has 4 different variations. Their same attributes are:

• Resolution: 240*320;

• View Area: 36.72(H)*48.96(V)mm.

Similarly, because different customers have different needs, this 2.4-inch TFT LCD Module also has different attributes:

• LCD Type: IPS / TN;

• Driver IC: ST7789V2 / ILI9340X / ST7789T3 / ST7785M-G6;

• Outline Size: 42.72(H)*60.26(V)*2.4(T)mm / 42.72(H)*60.26(V)*2.0(T)mm / 57.8(H)*91.8(V)*3.55(T)mm / 5032(H)*70.56(V)*3.55(T)mm;

• Pin Number: 16 Pins / 18 Pins / 24 Pins;

• Interface: MCU / SPI / MIPI.
