1.77 inch TFT LCD Module IPS 300 brightness 128x160 Pixels

Model No. TFT0177B

1.77-inch TFT LCD Module is a 128xRGBx160 pixel color TFT LCD module.

Product Features

· Model NO. : TFT0177B

· Size: 1.77

· Resolution: 128x160

· Shape of Display: Square

· Interface: SPI

· Driver IC: GC9107

· Touch Screen: NA

+ Add inquiry

Technical Specifications Table

Size
1.77
mm

Resolution
128x160
Dot

Model No.
TFT0177B

Product Type
TN

Shape of Display
Square

Outline Size
17.58x20.82x1.46
mm

Active Area
15.21x15.21
mm

View Angle
12H

Drive IC
GC9107

Interface
SPI

Touch Screen
NA

OP
-20°C~+70°C
℃

Remark

Application field description

Product Introduction

1.77-inch TFT LCD Module is a 128xRGBx160 pixel color TFT LCD module. This LCD module currently has 3 different variations. Their same attributes are:

•Interface: MCU.

Similarly, because different customers have different needs, this 1.77-inch TFT LCD Module also has different attributes:

•LCD Type: IPS / TN;

•Resolution: 128×160 / 240×284;

•Driver IC: ST7735S / GC9107 / NV3030B;

•Outline Size: 33.0(H)*42.0(V)*2.3(T)mm / 34.7(H)*46.7(V)*2.25(T)mm / 31.62(H)*39.02(V)*1.5(T)mm;

•View Area: 28.03(H)*35.04(V)mm / 29.52(H)*34.93(V)mm;

•Pin Number: 15 Pins / 20 Pins / 24 Pins.

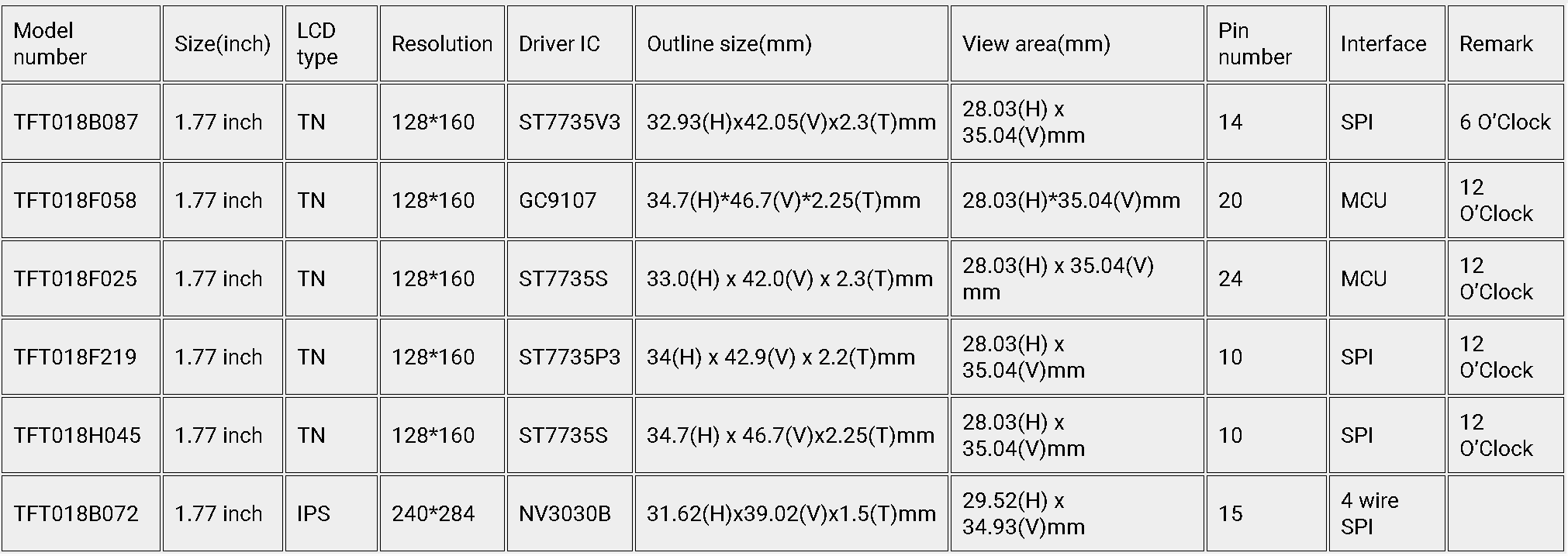

1.77 inch models.png

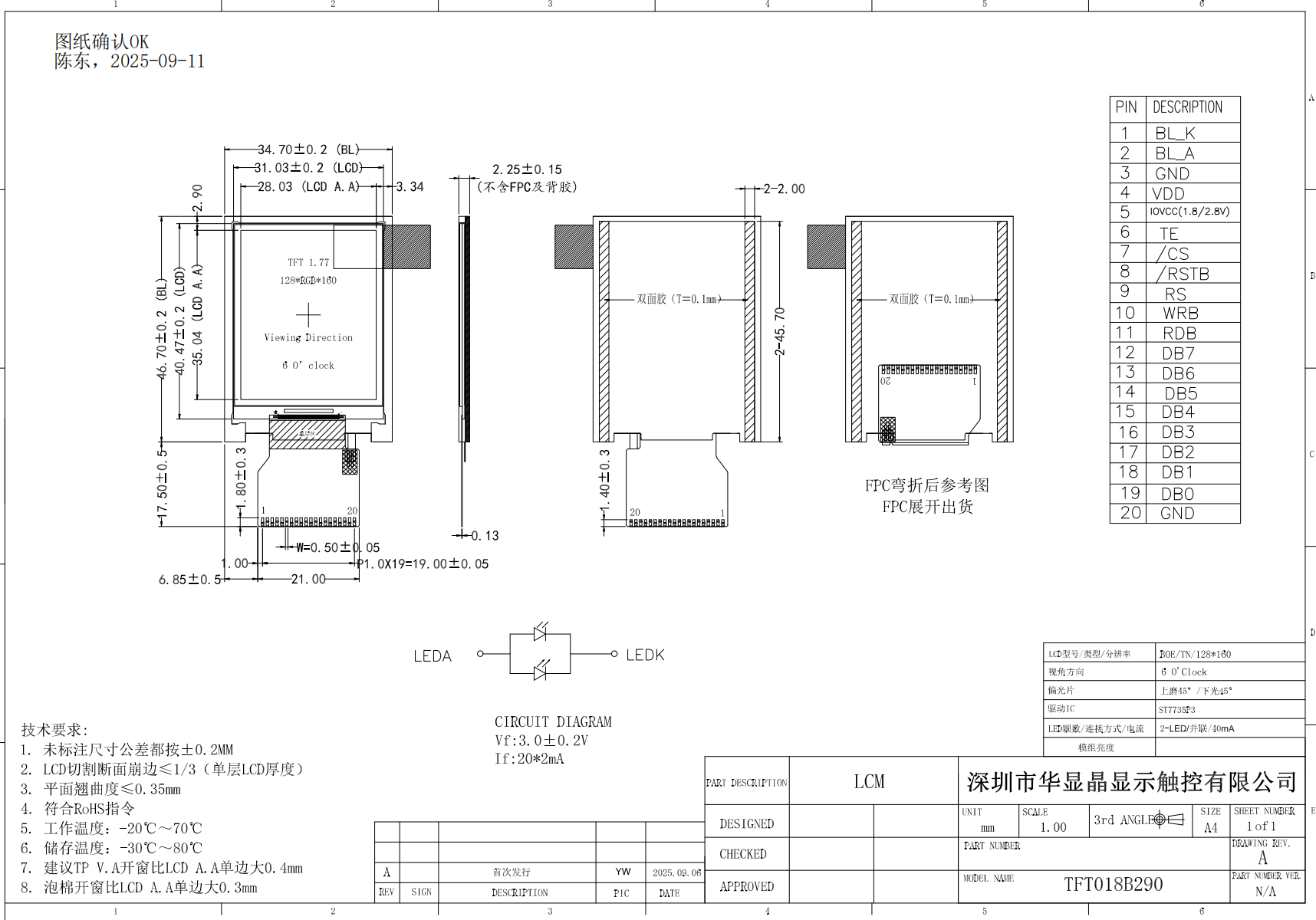

Drawing:

1.77 inch drawing.png
