• Size
• 2.0
• mm

• Resolution
• 240x320
• Dot

• Model No.
• WEO006445A

• Product Type
• IPS

• Shape of Display
• Rectangular

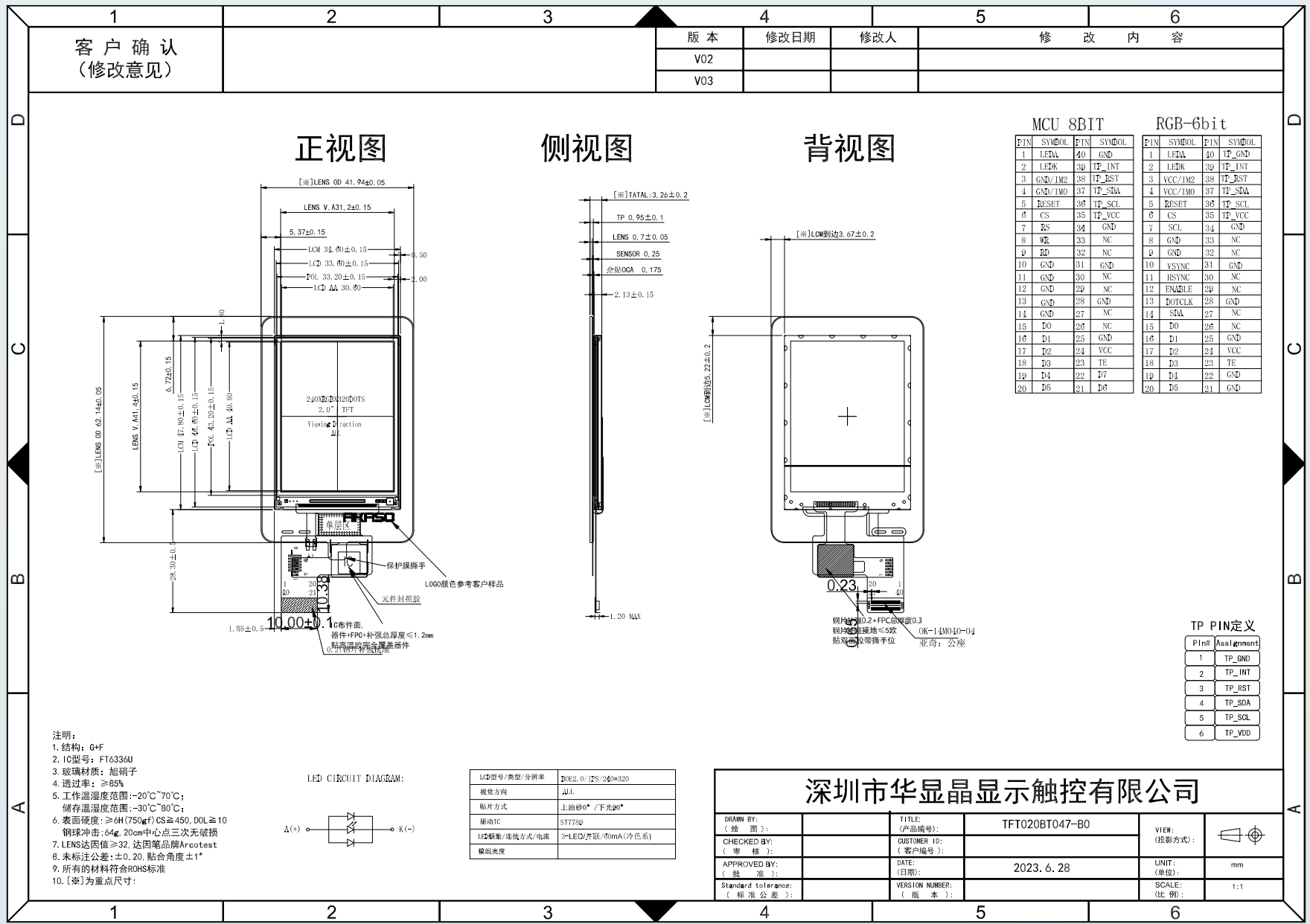

• Outline Size
• 34.6x47.8x2.05
• mm

• Active Area
• 30.6x40.8
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

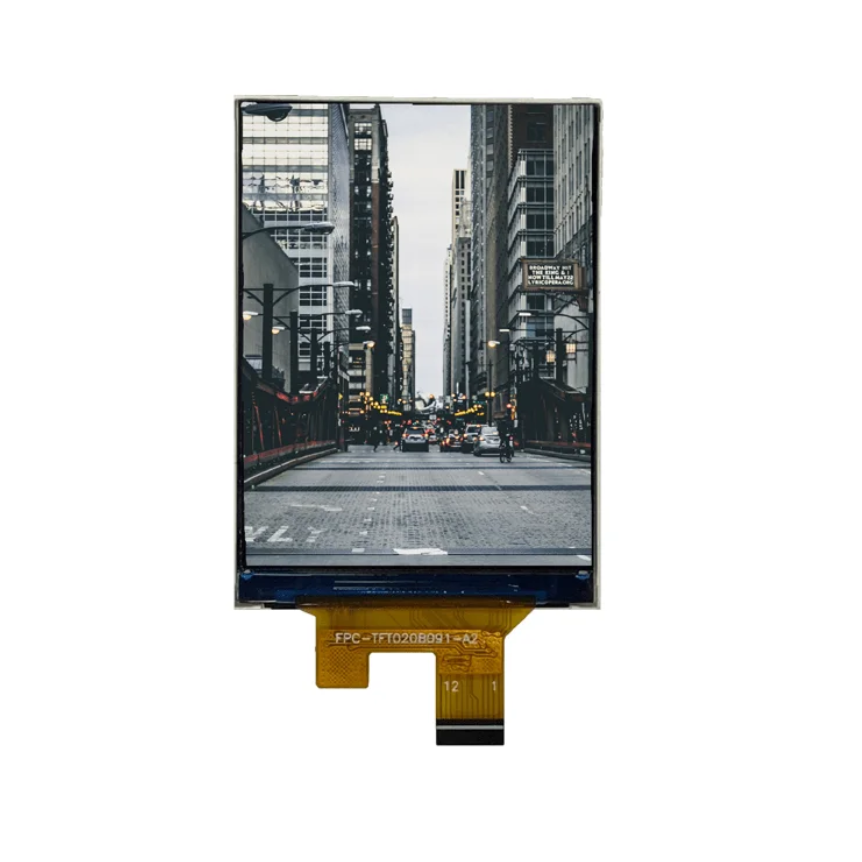

2.0 inch TFT LCD Module is a 320×240 pixel color TFT LCD module,  and it is equipped with RTP. This LCD module currently has 4 different variations.



Their same attributes are:

Interface: SPI/MCU

Similarly, because different customers have different needs, this 2.0-inch TFT LCD Module also has different attributes:

 LCD Type: IPS/TN;

Resolution: 320×240/240×320/176×220/240×320 Driver IC: ST7789V2/ST7775R/ST7789V;

Outline Size: 34.6(H)x47.8(V)x1.97(T)/34.6(H) x 47.8(V)x2.13(T)/37.68(H)x51.30(V)x2.35(T)/41.94(H) x 62.14(V) x 3.26(T)mm;

Active Size: 30.6(H)x40.8(V)/31.68(H)x39.60(V)mm;

Pin Number: 12 Pin/25 Pin/40 Pin.
