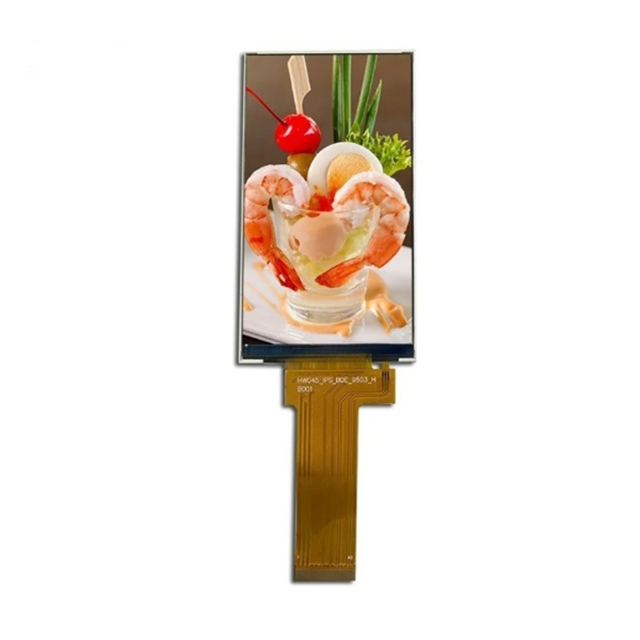

4.45 inch TFT LCD display 480*854 Pixels 300 Nits IC ST7701S

Model No. TFT030B

This is a 3 inch TFT LCD display featuring a resolution of 480*854 and a MIPI interface. It has a brightness of 300 and is driven by the GV9503V driver IC.

Product Features

· Model NO. : TFT030B

· Size: 4.45

· Resolution: 480X854

· Shape of Display: Bar

· Interface: RGB

· Driver IC: ST7701S

· Touch Screen: NA

PDF DOWNLOAD + Add inquiry

Technical Specifications Table

Size
4.45
mm

Resolution
480X854
Dot

Model No.
TFT030B

Product Type
IPS

Shape of Display
Bar

Outline Size
60x109x2.15
mm

Active Area
55.44X98.64
mm

View Angle
All Angles

Drive IC
ST7701S

Interface
RGB

Touch Screen
NA

OP
-20°C~+70°C
℃

Remark

Application field description

Smart Home
Medical Devices
Smart Home
Medical Devices
Smart Home

Product Introduction

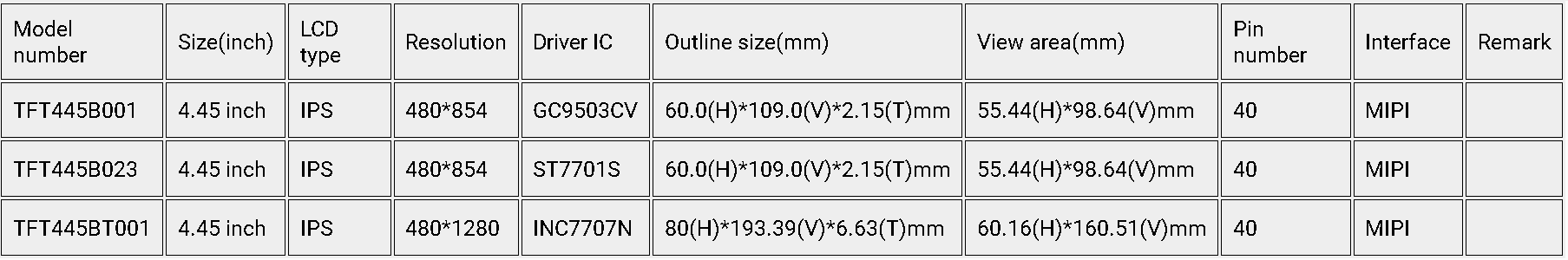

4.45 inch TFT LCD Module is a 480xRGBx854 pixel color TFT LCD module. This LCD module currently has 2 different variations.

Their same attributes are:

•Resolution: 480×854;

•Outline Size: 60.0(H)*109.0(V)*2.15(T)mm;

•View Area: 55.44(H)*98.64(V)mm;

•Pin Number: 40 Pins;

•Interface: MIPI.

Similarly, because different customers have different needs, this 4.45 inch TFT LCD Module also has different attributes:

•Driver IC: GC9503CV / ST7701S.

Product Features:

•Large and clear: The 4.45inch size combined with a high resolution of 480*854 offers clear and vivid visuals.

•MIPI interface: Ensures fast data transfer and reliable connectivity.

•Moderate brightness: With a brightness of 300, it is suitable for various lighting conditions.

•Efficient driver IC: The ST7701S provides stable and high-quality display performance.

Applicable Scenarios:

•Smartphones and tablets: As a secondary display or for specific applications.

•Industrial instruments: For displaying readings and controls.

•Automotive infotainment systems: To provide clear information and entertainment.

•Medical devices: For displaying patient data and diagnostic results.
