2.76 inch Round TFT LCD Display Module IPS 480x480 Pixels 400 Nits

Model No. TFT0276BT

This is a circular IPS capacitive touch TFT-LCD screen with a display diameter of 2.76 inches and a resolution of 480x480 pixels. This circular TFT display is composed of an IPS TFT-LCD panel with a built-in ST7701S driver IC.

Product Features

· Model NO. : TFT0276BT

· Size: 2.76

· Resolution: 480x480

· Shape of Display: Round

· Interface: RGB

· Driver IC: ST7701S

· Touch Screen: CTP

PDF DOWNLOAD + Add inquiry

Technical Specifications Table

Size
2.76
mm

Resolution
480x480
Dot

Model No.
TFT0276BT

Product Type
IPS

Shape of Display
Round

Outline Size
73.03x76.48x2.34
mm

Active Area
70.13x70.13
mm

View Angle
All Angles

Drive IC
ST7701S

Interface
RGB

Touch Screen
CTP

OP
-20°C~+70°C
℃

Remark

Application field description

Smart Home
Medical Devices
Smart Home
Medical Devices
Smart Home

Product Introduction

2.76 inch round LCD display screen 480*480 IPS Interface MIPI driver IC ST7701S

It a 2.76 inch round LCD with a resolution of 480*480. It features an IPS panel for full viewing angles, an RGB interface, a brightness of 400, and comes with a touch function. The display is driven by the ST7701S driver IC.

Product Features:

•Round shape design offers a unique and stylish look.

•High-resolution 480*480 IPS display provides excellent image quality and wide viewing angles.

•RGB interface for seamless connectivity.

•400 brightness ensures clear visibility in various lighting conditions.

•Touch function for intuitive interaction.

•Driven by the reliable ST7701S driver IC for stable performance.

Applicable Scenarios:

•Wearable devices such as smartwatches.

•Portable medical devices for easy monitoring.

•Industrial instrumentation for compact and functional displays.

•Consumer electronics with unique design requirements.

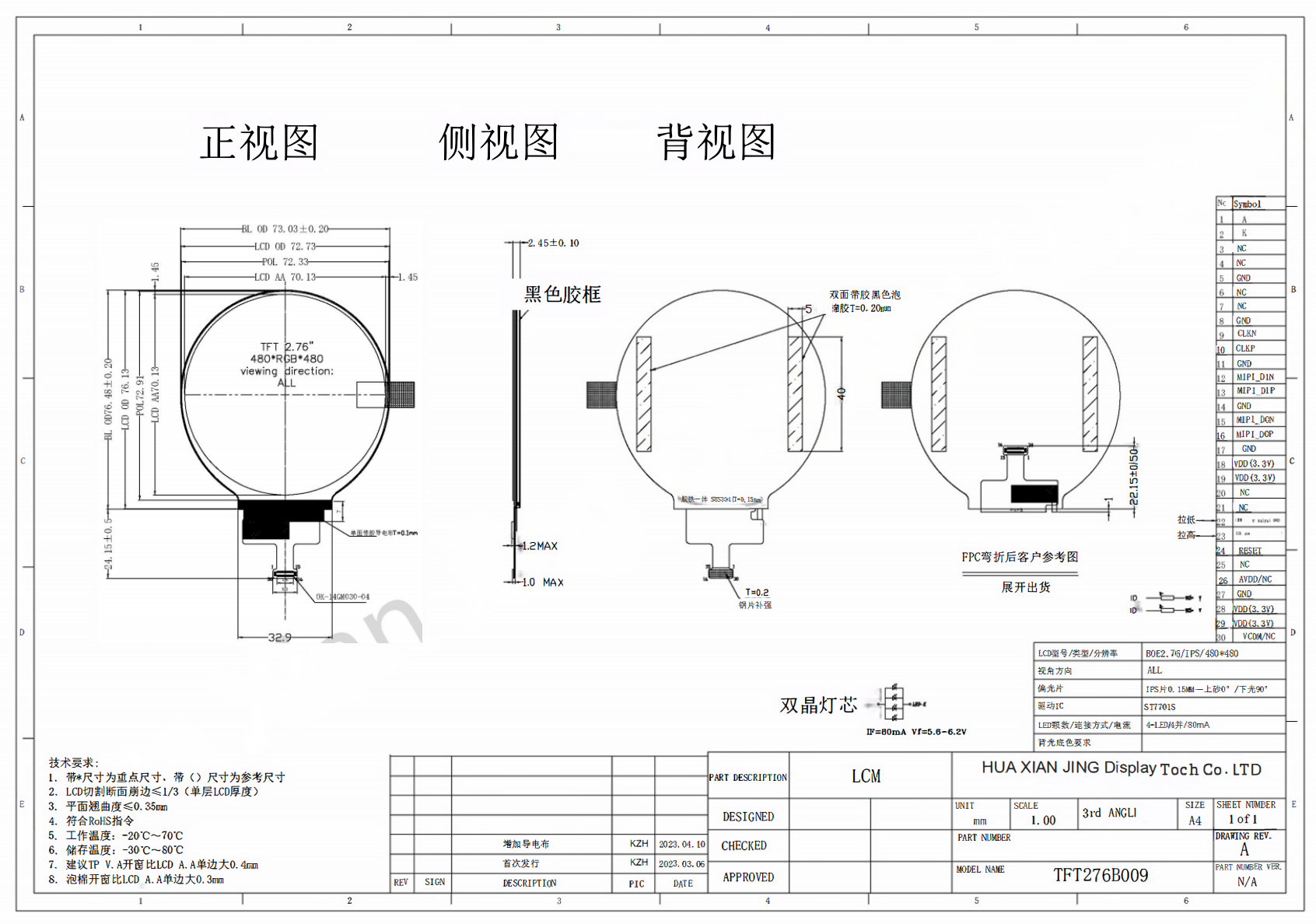

The drawing：
