• Size
• mm

• Resolution
• 16x1
• Dot

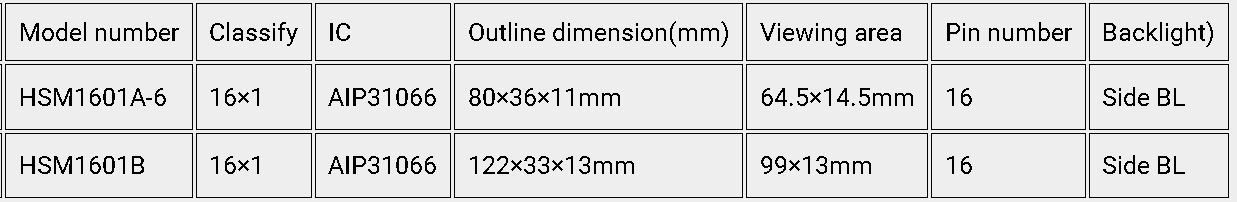

• Model No.
• HSM1601B

• Product Type
• Mono COB

• Shape of Display
• Rectangular

• Outline Size
• 122×33×13
• mm

• Active Area
• 93x13
• mm

• View Angle
• 6/12 o'clock

• Drive IC
• AIP31066

• Interface
• MCU

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

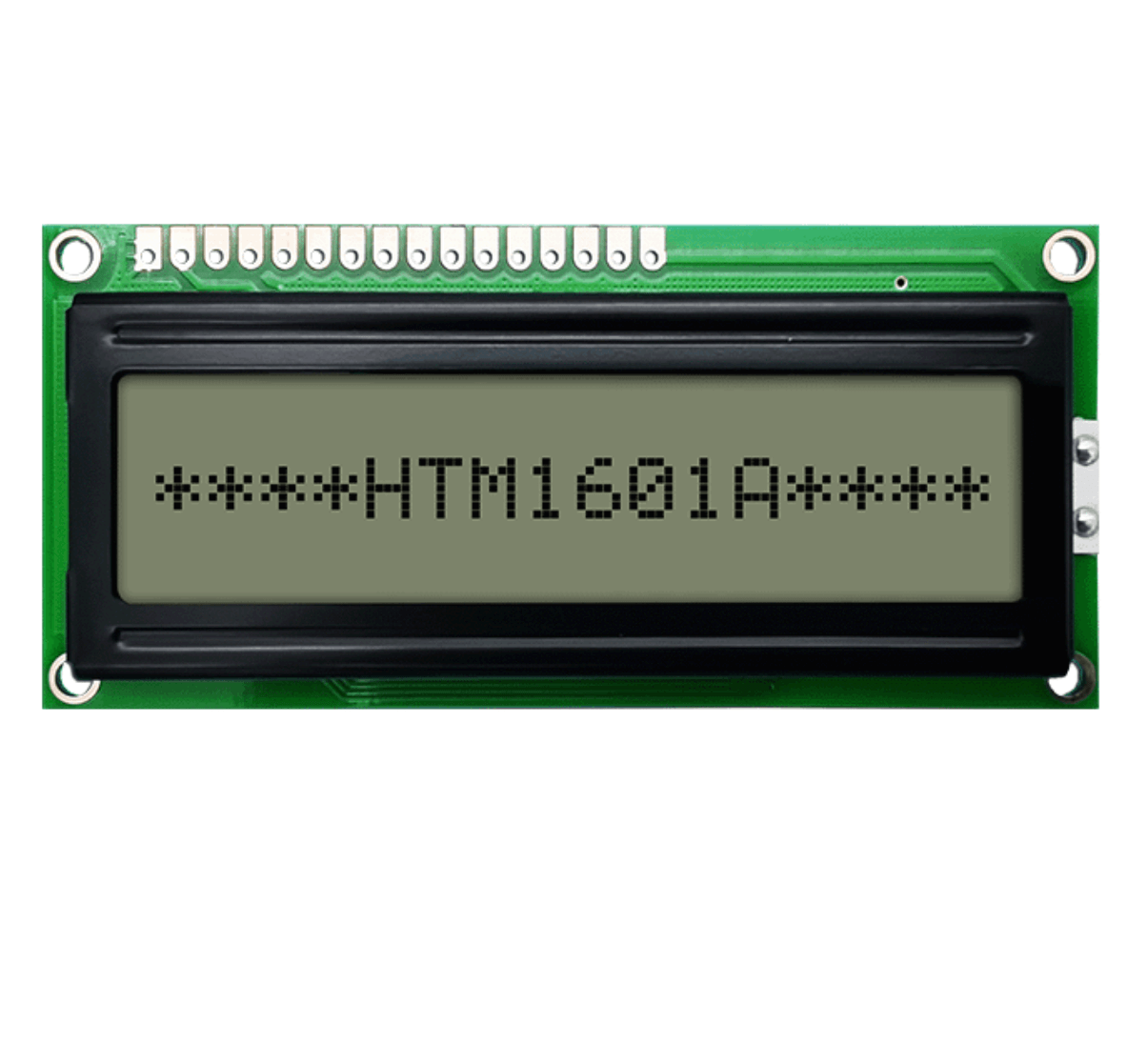

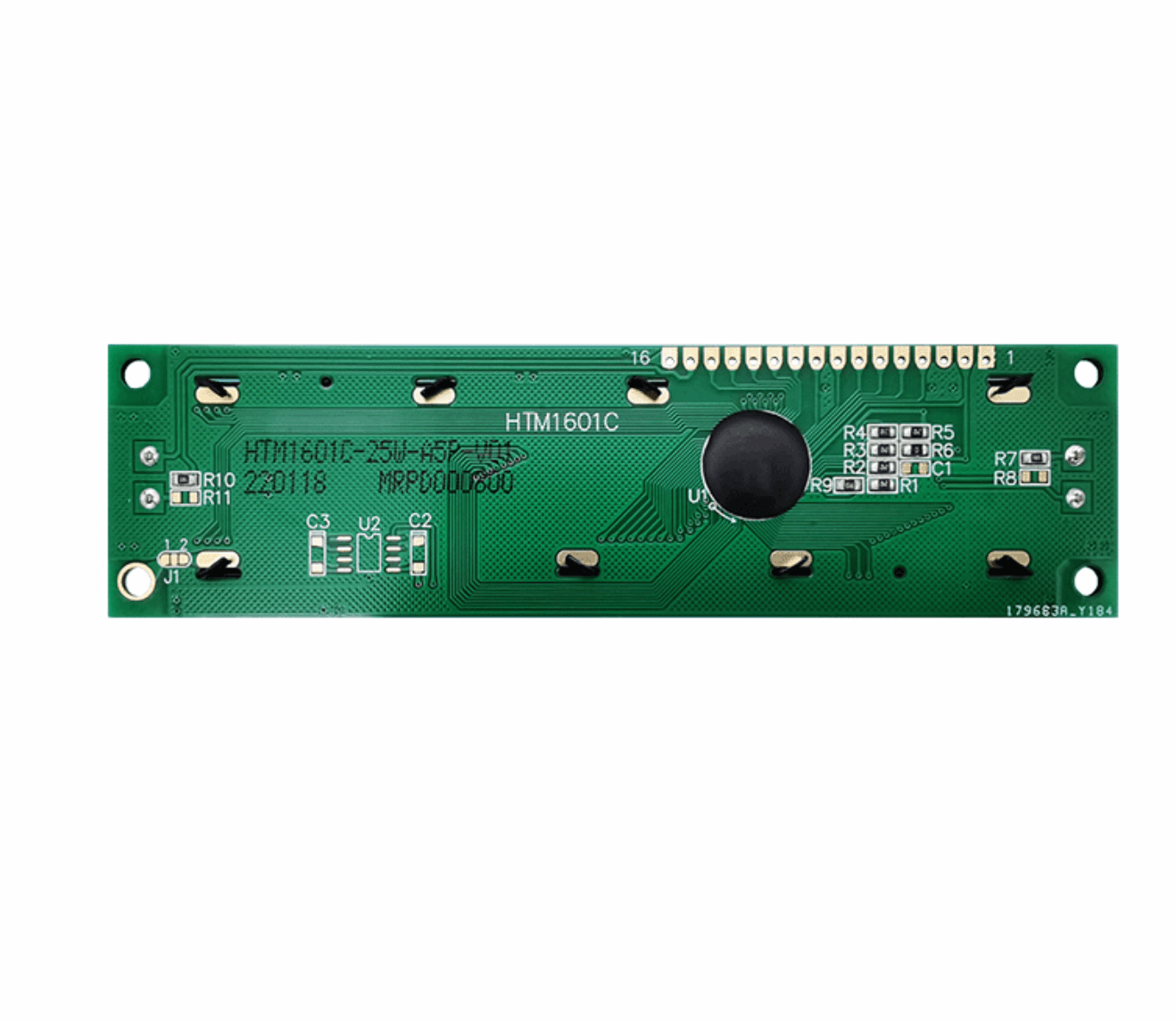

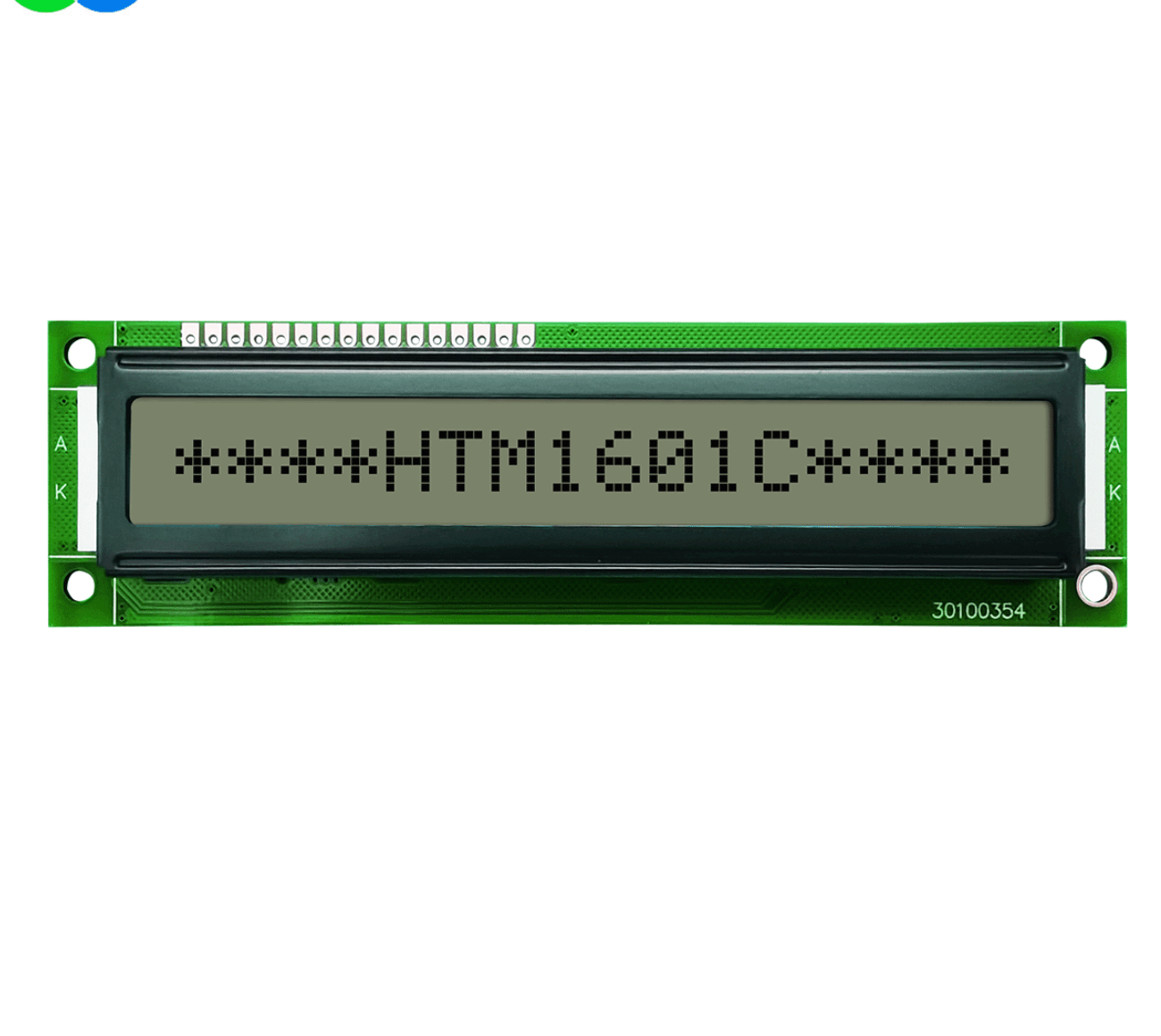

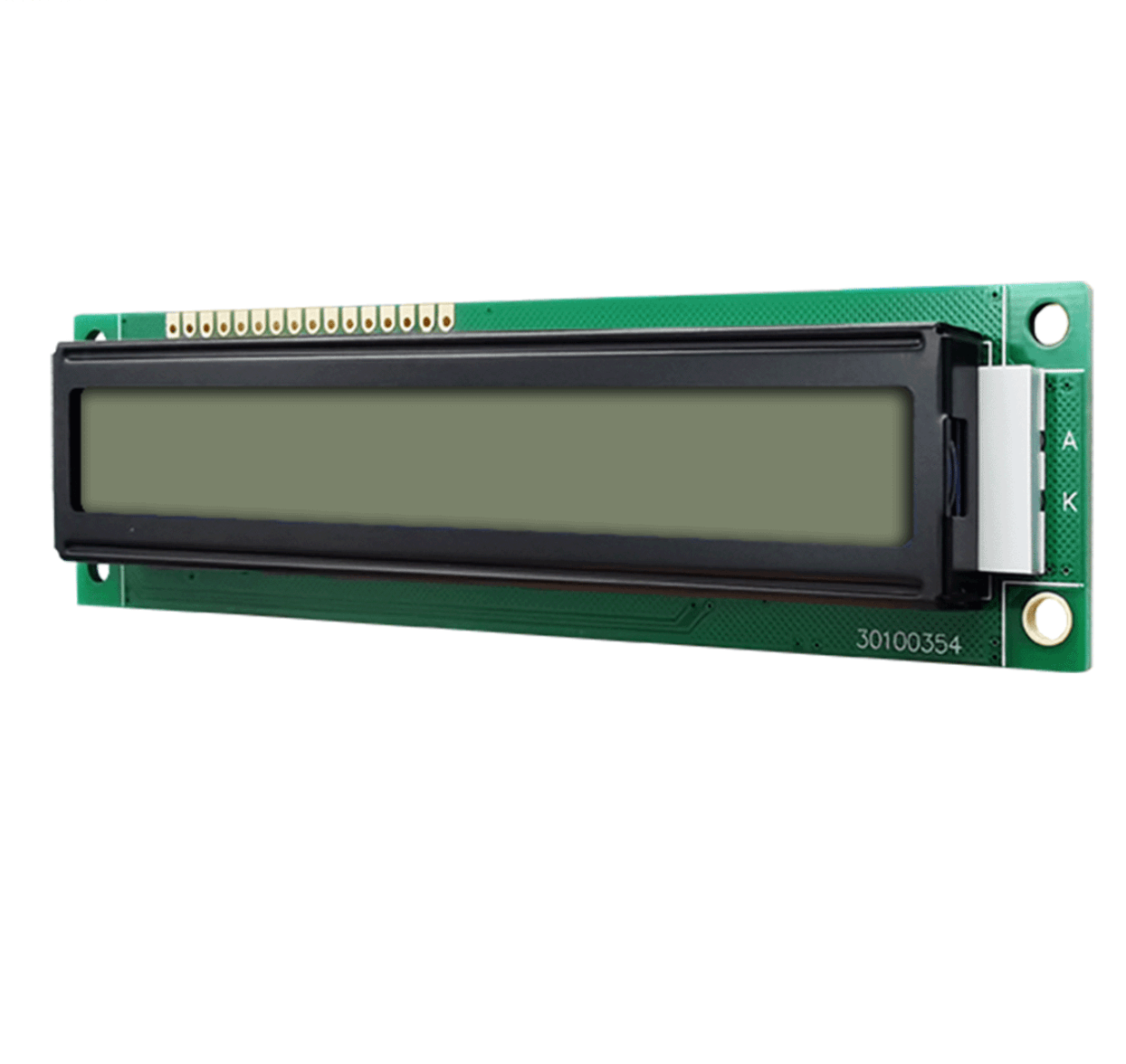

HTM1601A-24W-A5P – 16×1 Character LCD Display (STN-Blue Negative) with Parallel Interface

Product Overview

The HTM1601A-24W-A5P is a standard 16 characters × 1 line STN LCD module, adopting blue negative transmissive display mode with a white LED backlight for high visibility.

It is driven by an HD44780-compatible controller, using a 5V single power supply and 8-bit parallel interface, ensuring compatibility with most microcontrollers such as STM32, Arduino, and 8051.

The display features –20°C to +70°C operating temperat

ure and –30°C to +80°C storage range, suitable for industrial and outdoor equipment.

It includes a contrast adjustment pin (V0) that allows flexible contrast tuning through an external resistor (VR5K).

Key Features

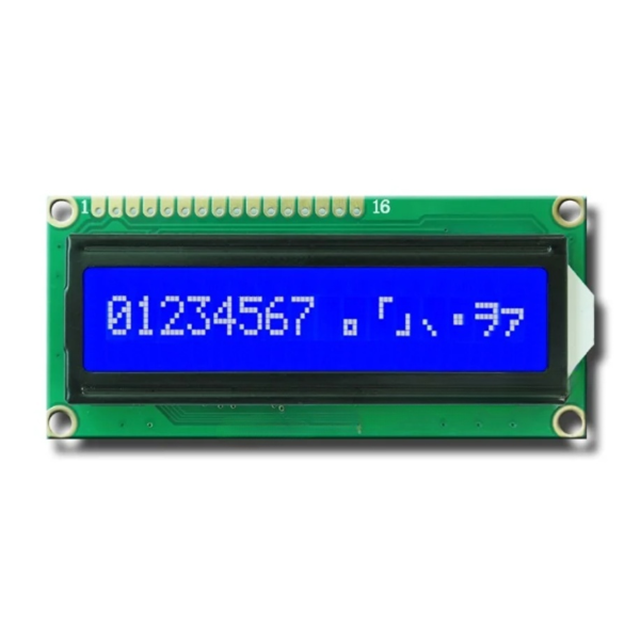

16×1 Character Display (STN-Blue Negative) – High-contrast text for dark-background displays.

HD44780-Compatible Driver – Wide MCU compatibility and easy programming.

White LED Backlight (5V) – Bright and energy-efficient illumination.

Standard 16-Pin Interface – Simple integration with controllers and development boards.

Operating Temperature: –20°C ~ +70°C – Reliable under industrial conditions.

Adjustable Contrast (VR5K External) – Flexible brightness and contrast control.

Compact Size: 80 × 36 mm PCB – Suitable for space-constrained systems.

Applications

Industrial Control Panels – Parameter and process display.

Measurement Devices – Compact text output for instruments.

Embedded Projects – Compatible with Arduino, STM32, and Raspberry Pi.

Office and Commercial Equipment – Timers, POS displays, and status monitors.

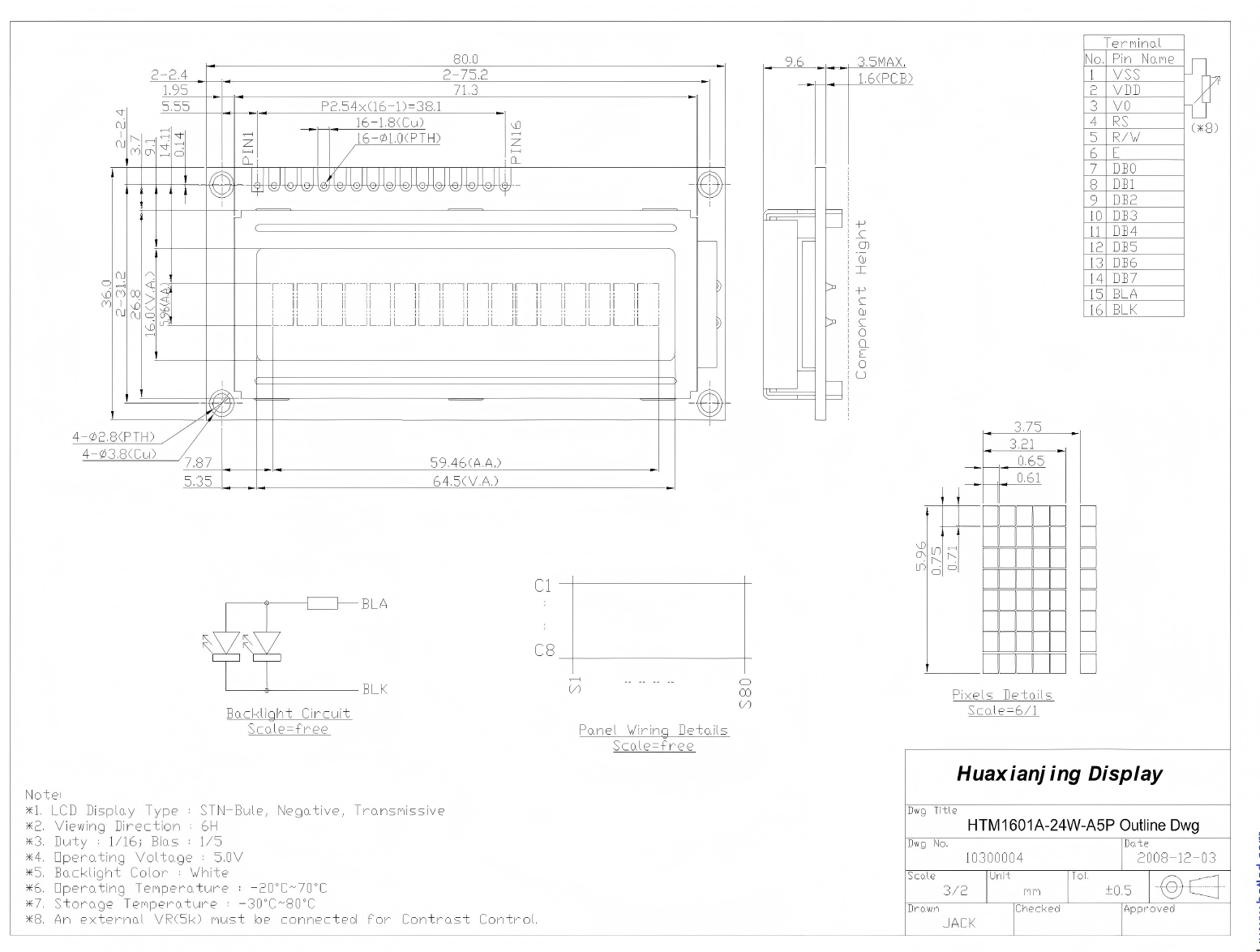

The drawing:
