• Size
• 3.6
• mm

• Resolution
• 544X506
• Dot

• Model No.
• TFT0360BT11

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 98.99X94.12X7.7
• mm

• Active Area
• 89.76X83.49
• mm

• View Angle
• All Angles

• Drive IC
• ST72566

• Interface
• RGB

• Touch Screen
• NA

• OP
• -30°C~+85°C
• ℃

• Remark
• For Vehicle/Industrial Control

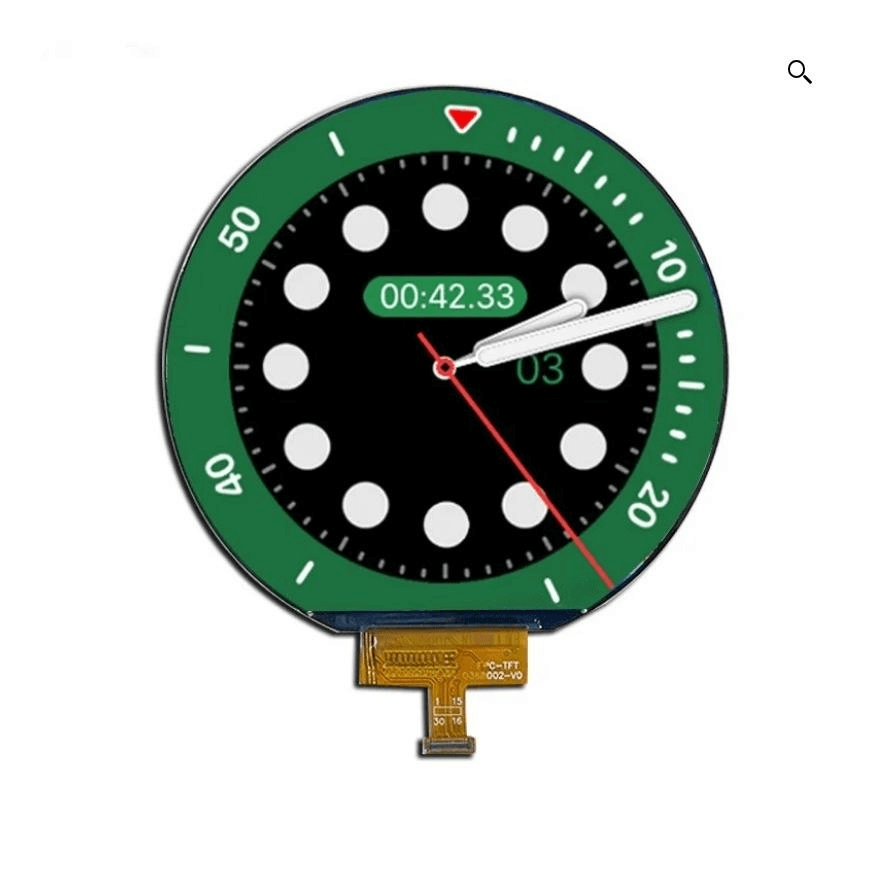

3.6 Inch Round TFT LCD Display Module, 544×500 Resolution, IPS Full Viewing Angle

Detailed Product Description

This 3.6 inch round TFT LCD display module is developed for high-end industrial, automotive, and smart device applications that require a distinctive circular design combined with stable performance and high brightness. With a native resolution of 544×500 pixels, the display delivers fine image detail, smooth curves, and accurate graphical presentation, making it ideal for modern user interfaces where aesthetics and readability are equally important.

The module adopts IPS TFT technology with full viewing direction, ensuring consistent color reproduction and luminance when viewed from any angle. This characteristic is particularly valuable in dashboard-style applications, control panels, and wearable or smart terminals where the viewing angle cannot be fixed. The active display area has a diameter of approximately 83.49 mm, while the visible area reaches about 89.76 mm, providing an immersive circular visual effect.

A high-performance TFT driver solution is used to support a 16.7 million color depth, enabling rich color gradients and smooth image transitions. The interface design supports RGB signal transmission and is compatible with a wide range of embedded processors and display controllers commonly used in industrial and automotive systems.

The backlight system consists of 20 white LEDs arranged in a balanced structure to ensure uniform brightness across the circular panel. With a typical backlight input current of 140 mA, the module achieves a luminance level of approximately 1000 cd/m², making it suitable for environments with strong ambient light. This level of brightness ensures excellent readability in vehicle interiors, outdoor equipment, and semi-open industrial installations.

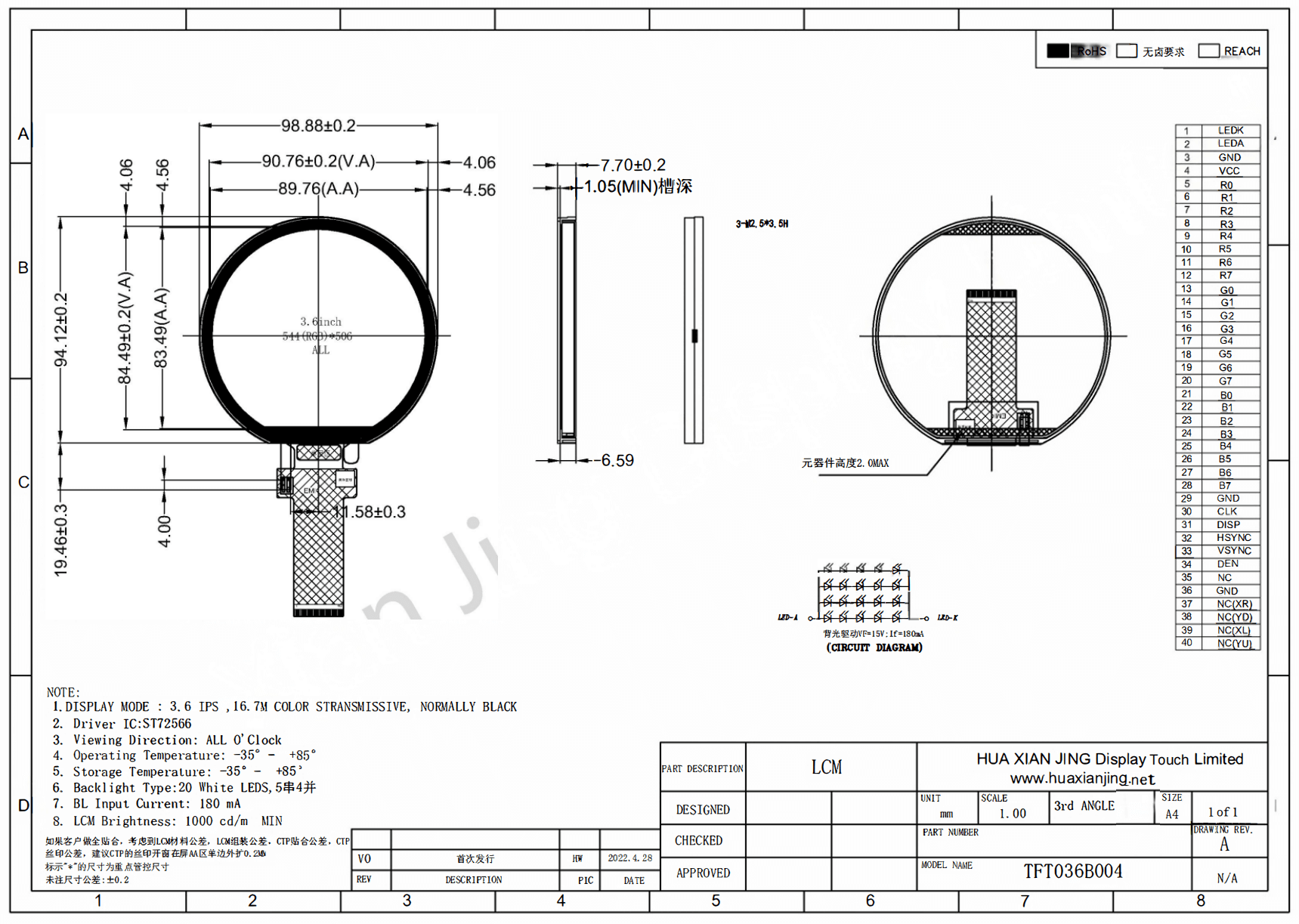

From a mechanical perspective, the module is designed with a compact and reliable structure. The overall LCM outline diameter is approximately 98.88 mm, with a typical module thickness of about 6.59 mm. The flexible printed circuit is designed for stable connection and controlled bending, supporting both prototyping and mass production. The module is engineered to operate reliably in a wide temperature range from -30°C to +85°C and complies with RoHS environmental standards, ensuring long-term supply suitability for professional projects.

Features

• 3.6 inch round TFT LCD display module

• 544×500 resolution with smooth circular graphics

• IPS panel technology with full viewing direction

• 16.7 million color depth for rich image performance

• High brightness backlight suitable for strong ambient light

• RGB interface compatible with common embedded platforms

• Robust mechanical design for industrial and automotive use

• Wide operating temperature range

• RoHS compliant and suitable for long-term supply




Applications

• Automotive instrument clusters and dashboard displays

• Industrial control panels and smart controllers

• Smart home central displays

• Medical and measurement equipment

• High-end consumer electronics with round display design




Technical Specifications
