6.1 inch Ultra Wide Temperature IPS TFT LCD Module 1000Nits 280x1424 Pixels

Model No. TFT061BT2

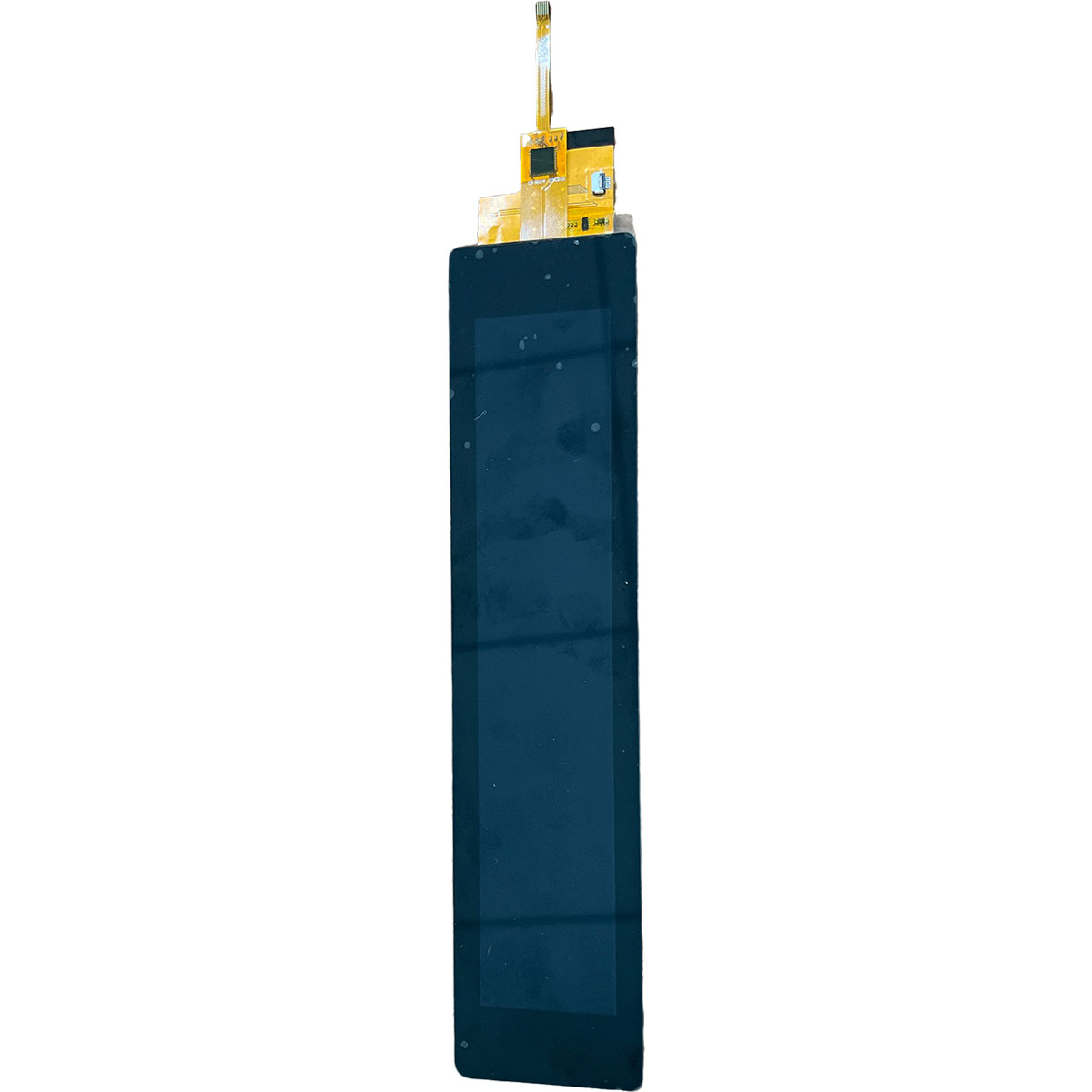

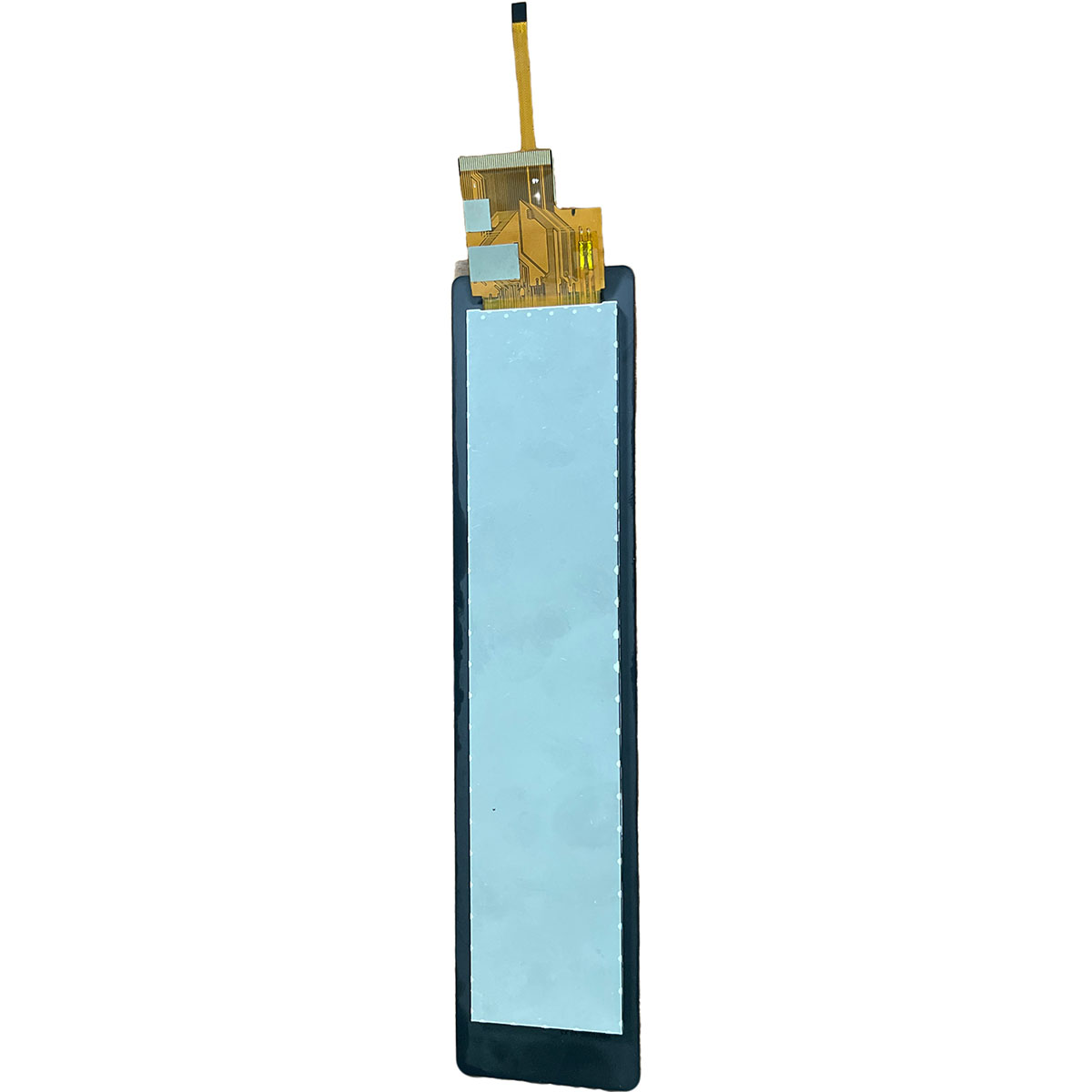

This is a automotive-grade circular IPS capacitive touch TFT-LCD screen with a display diameter of 6.1 inches and a resolution of 280x1424 pixels. This circular TFT display is composed of an IPS TFT-LCD panel with a built-in NV3047 driver IC

Product Features

· Model NO. : TFT061BT2

· Size: 6.1

· Resolution: 280x1424

· Shape of Display: Rectangular

· Interface: MIPI

· Driver IC: ST7703I

· Touch Screen: CTP

+ Add inquiry

Technical Specifications Table

Size
6.1
mm

Resolution
280x1424
Dot

Model No.
TFT061BT2

Product Type
IPS

Shape of Display
Rectangular

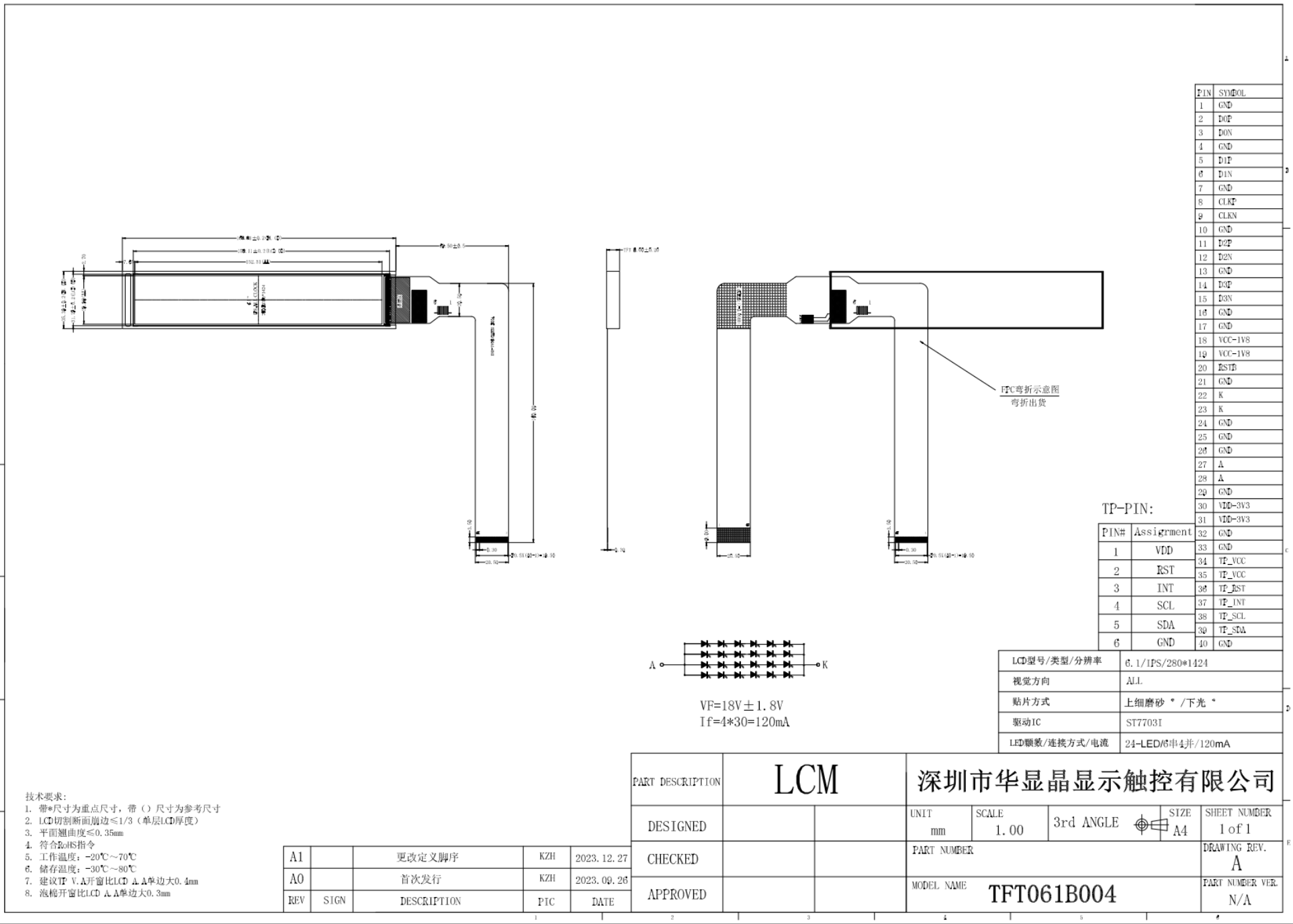

Outline Size
59.52X227.48X4.75
mm

Active Area
54.72X218.88
mm

View Angle
All Angles

Drive IC
ST7703I

Interface
MIPI

Touch Screen
CTP

OP
-30°C~+85°C
℃

Remark
For Vehicle/Industrial Control

Application field description

Product Introduction

5.0 inch round LCD display resolution MIPI interface IPS full viewing angle

It a 6.1 inch round LCD display with an 280x1424 resolution. It comes with a MIPI interface, features IPS technology for a full viewing angle, and has a brightness of 1000. The display is driven by the ST7703I driver IC.

Product Features:

•Unique round shape for a stylish and distinctive look.

•High-resolution 280x1424 display for clear and detailed visuals.

•RGB interface for efficient data transmission.

•IPS panel offers excellent color reproduction and wide viewing angles.

•1000 brightness ensures good visibility in various lighting conditions.

•Powered by the ST7703I driver IC for stable and reliable performance.
