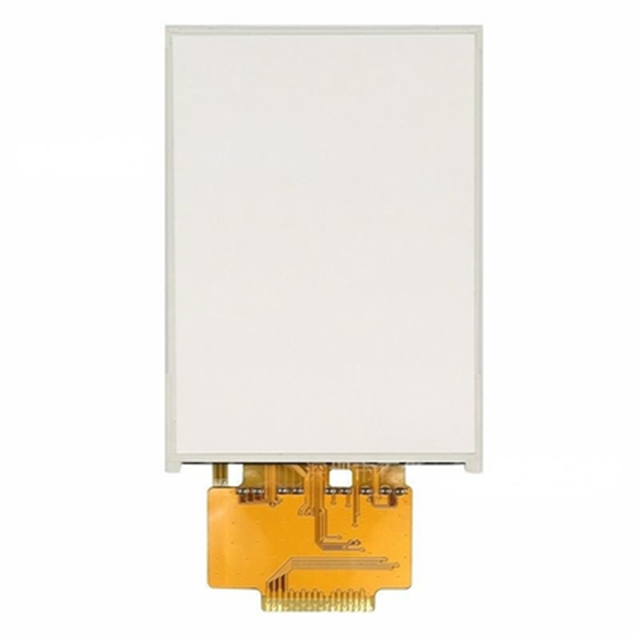

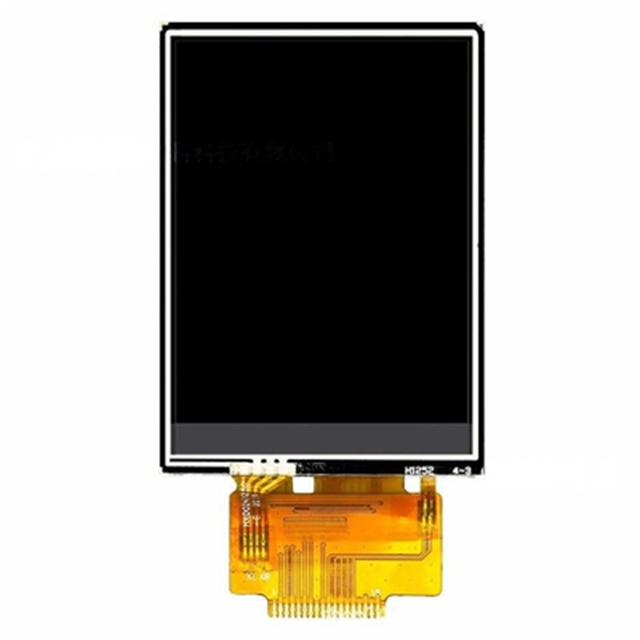

• Size
• 2.4
• mm

• Resolution
• 240x320
• Dot

• Model No.
• TFT024B398

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 50x69.20x2.25
• mm

• Active Area
• 43.20x57.6
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• CTP

• OP
• -20°C~+70°C
• ℃

• Remark

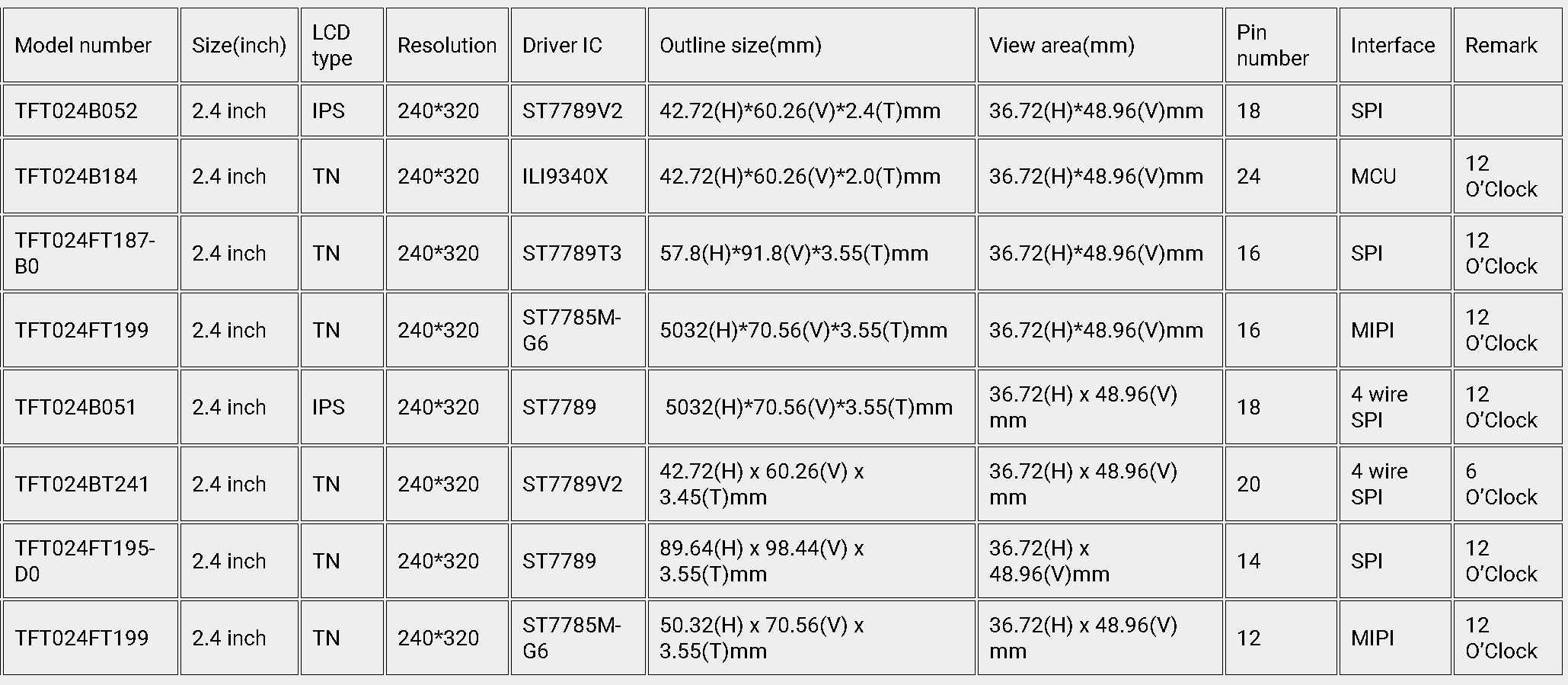

Product Overview

The 2.4-inch TFT024B398 LCD module is a compact yet high-performance display solution designed for embedded and handheld devices.

It adopts IPS technology for full viewing angles and excellent color consistency, while the ST7789V driver IC ensures fast refresh and low power consumption.

The SPI serial interface simplifies integration with MCUs such as STM32, ESP32, or Raspberry Pi, making it ideal for compact product designs.

A built-in metal frame with integrated backlight enhances strength and heat dissipation, extending product life.

Operating within –20°C to +70°C, it delivers stable performance even in demanding environments.

Key Features

• 2.4 Inch IPS Display – 240×320 pixel resolution with vivid colors and full viewing angles.

• SPI Serial Interface – Simplified wiring and easy MCU integration.

• ST7789V Driver IC – Ensures smooth refresh and high display stability.

• Compact and Durable Structure – Integrated metal frame with backlight, ideal for embedded use.

• Wide Temperature Range (–20°C ~ +70°C) – Suitable for both indoor and industrial equipment.

• RoHS Compliant & Energy Efficient – Eco-friendly and long-life LED backlight design.




Applications

• Smart Home Devices – Control panels, thermostats, and security systems.

• Portable Instruments – Handheld testers, scanners, and data loggers.

• Industrial Control Systems – Compact HMI terminals and monitoring units.

• Educational & DIY Electronics – Compatible with Arduino, Raspberry Pi, and embedded kits.

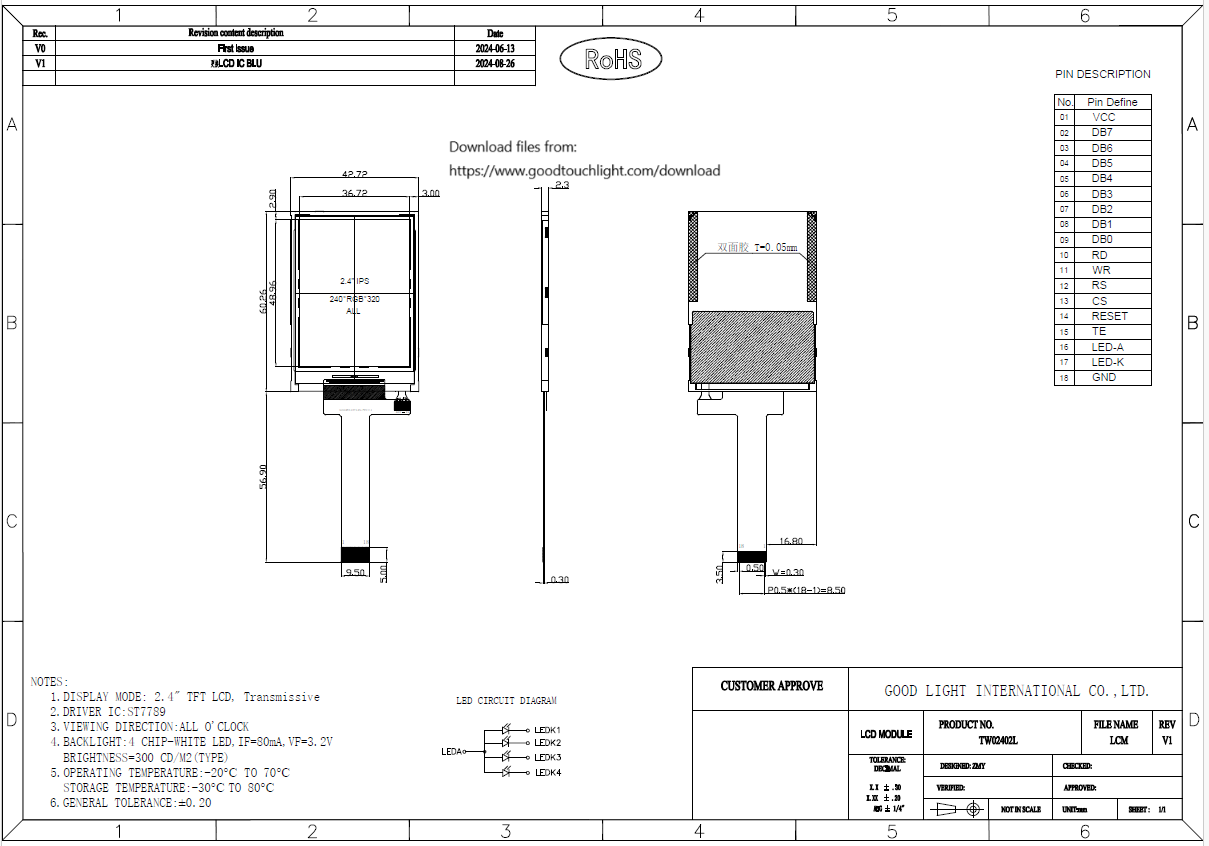

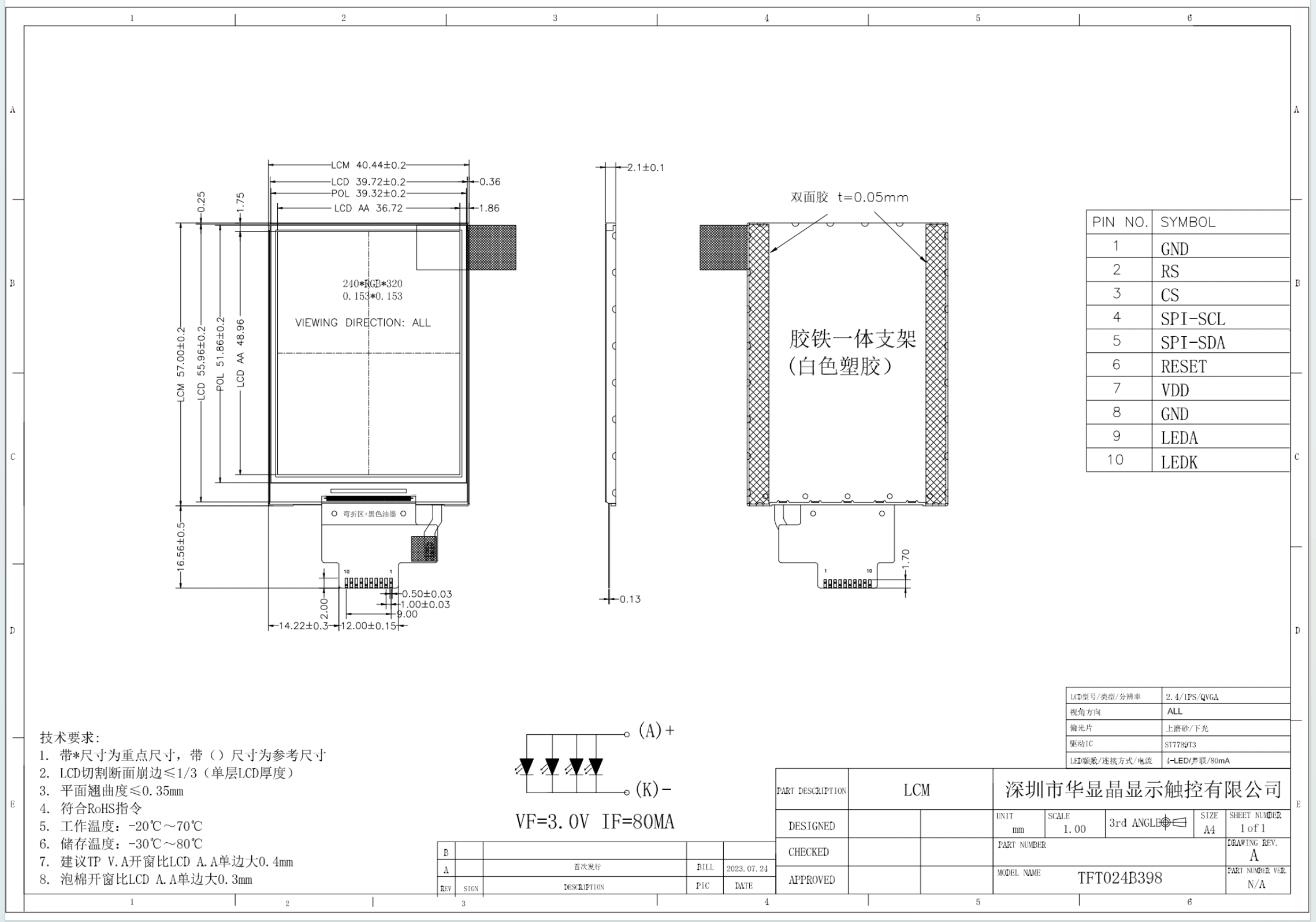

The drawing:
