• Size
• 10.1
• mm

• Resolution
• 800x1280
• Dot

• Model No.
• TFT101CL002

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 140.36×224.96×2.37
• mm

• Active Area
• 35.36×216.58
• mm

• View Angle
• All Angles

• Drive IC
• JD9366D

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+50°C
• ℃

• Remark

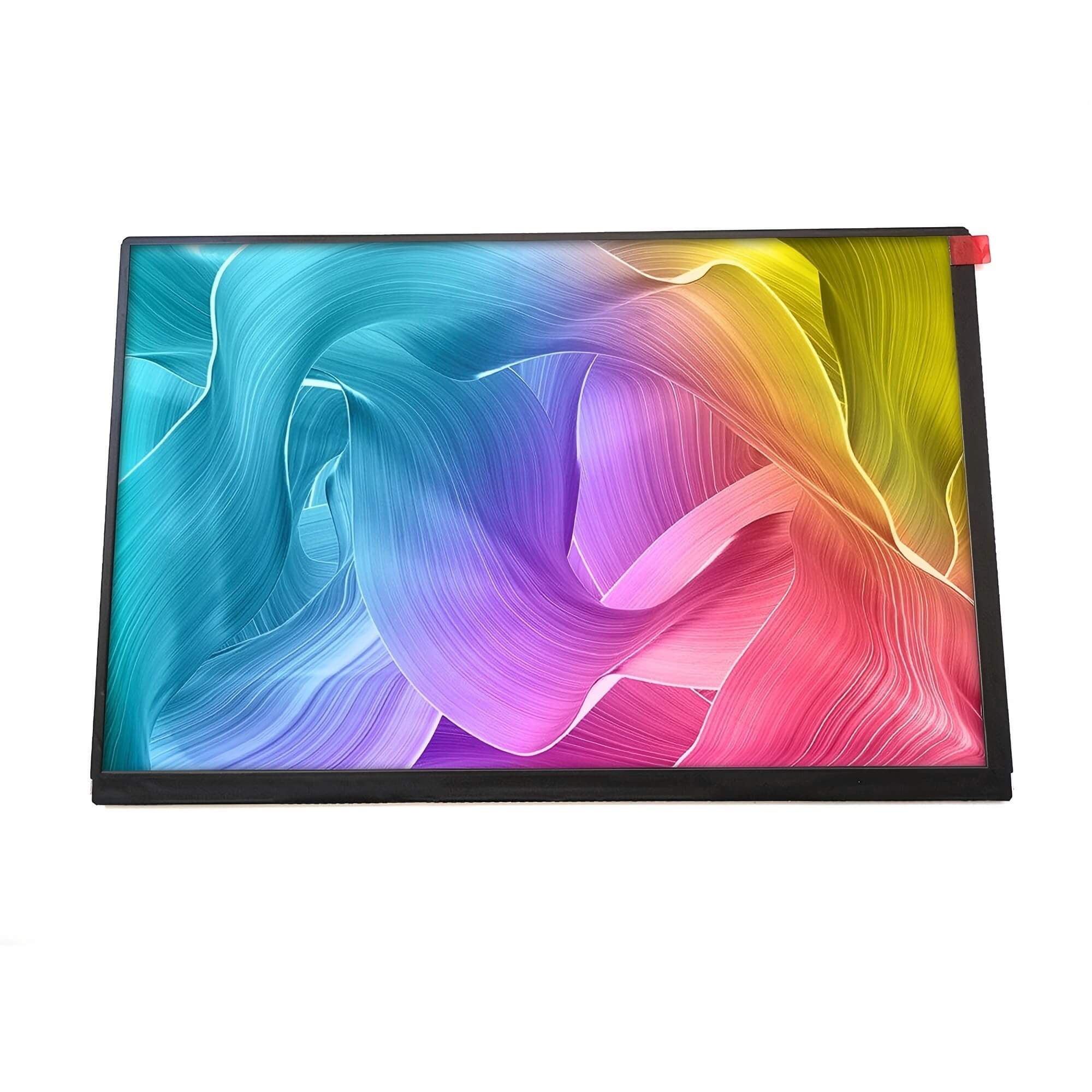

TFT101CL002-45IH-32A – 10.1 Inch IPS TFT LCD Display (800×1280) with MIPI Interface

Product Overview

The TFT101CL002-45IH-32A LCD module delivers exceptional visual performance with high contrast and color accuracy.

It adopts IPS technology for full viewing angles (80/80/80/80°), ensuring consistent brightness and color uniformity from any direction.

With an 800×1280 WXGA resolution and MIPI 4-lane interface, it supports fast data transfer and seamless integration with modern application processors.

The JD9366 driver IC ensures smooth refresh and stable operation, while the 350-nit backlight provides excellent visibility for indoor environments.

This display operates reliably between –10°C to +50°C, ideal for smart control terminals, tablets, and embedded visual systems.

Key Features

10.1 Inch In-cell IPS Display – Wide viewing angles and vivid color performance.

Resolution 800×1280 (WXGA) – High pixel density for clear image detail.

MIPI Interface (4 Lane) – High-speed data transmission and low EMI.

JD9366 Driver IC – Stable driving, low power consumption, and accurate color rendering.

Brightness 350 nits (typ.) – Perfect for indoor and semi-bright environments.

Operating Temperature: –10°C to +50°C – Reliable for various applications.

Slim 2.37 mm Thickness – Suitable for lightweight and compact device designs.

Applications

Tablet and Handheld Devices – High-definition display with wide viewing for multimedia or control.

Industrial Touch Panels – Used in automation and monitoring interfaces.

Smart Home Control Terminals – Ideal for wall-mounted or embedded touch panels.

Educational and Office Equipment – Suitable for e-learning, visual aids, and POS systems.

·

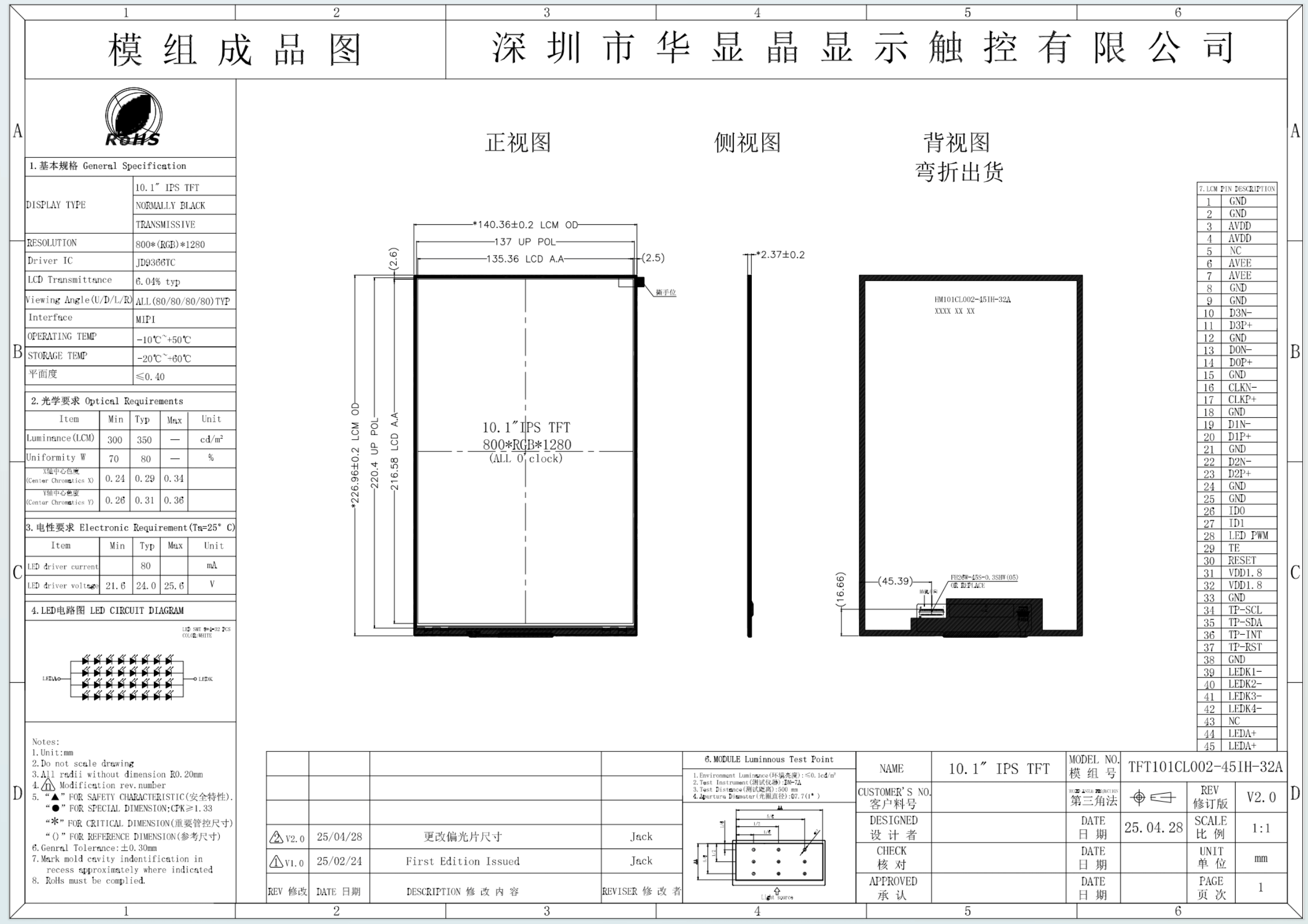

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
