• Size
• 3.2
• mm

• Resolution
• 240x320
• Dot

• Model No.
• TFT032B01

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 52.8x75x2.5
• mm

• Active Area
• 47.88x63.84
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

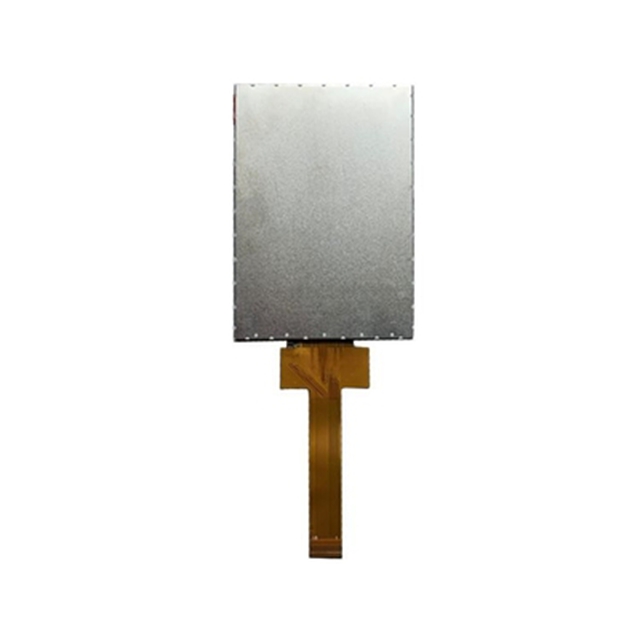

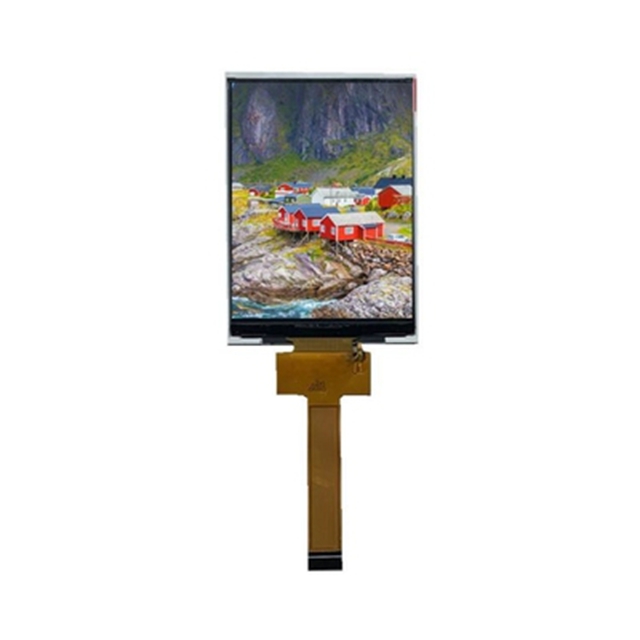

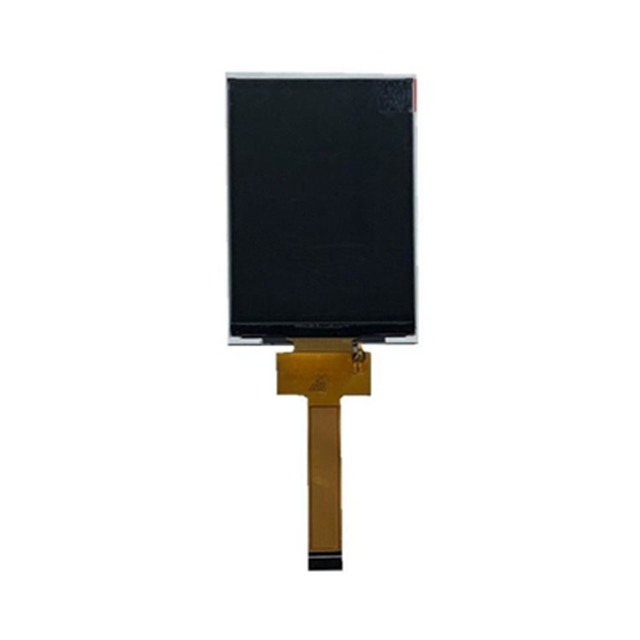

3.2 inch TFT LCD display SPI interface resolution 240X320 400 brightness driver IC ST7789V2

This is a 3.2 inch TFT LCD display with a SPI interface and a resolution of 240x320. It has a brightness of 400 and is driven by the ST7789V2 driver IC.

Product Characteristics:

The TFT display provides vivid colors and sharp images.

The 240x320 resolution offers clear and detailed visuals.

The SPI interface makes it easy to connect to various devices.

With a brightness of 400, it is suitable for different lighting conditions.

The ST7789V2 driver IC ensures reliable and efficient performance.

Applicable Scenarios:

Can be used in portable devices such as handheld game consoles and e-readers.

Ideal for industrial control panels and instrumentation displays.

Suitable for small-sized digital signage applications.

Useful in automotive infotainment systems for displaying information.

Product Parameter:

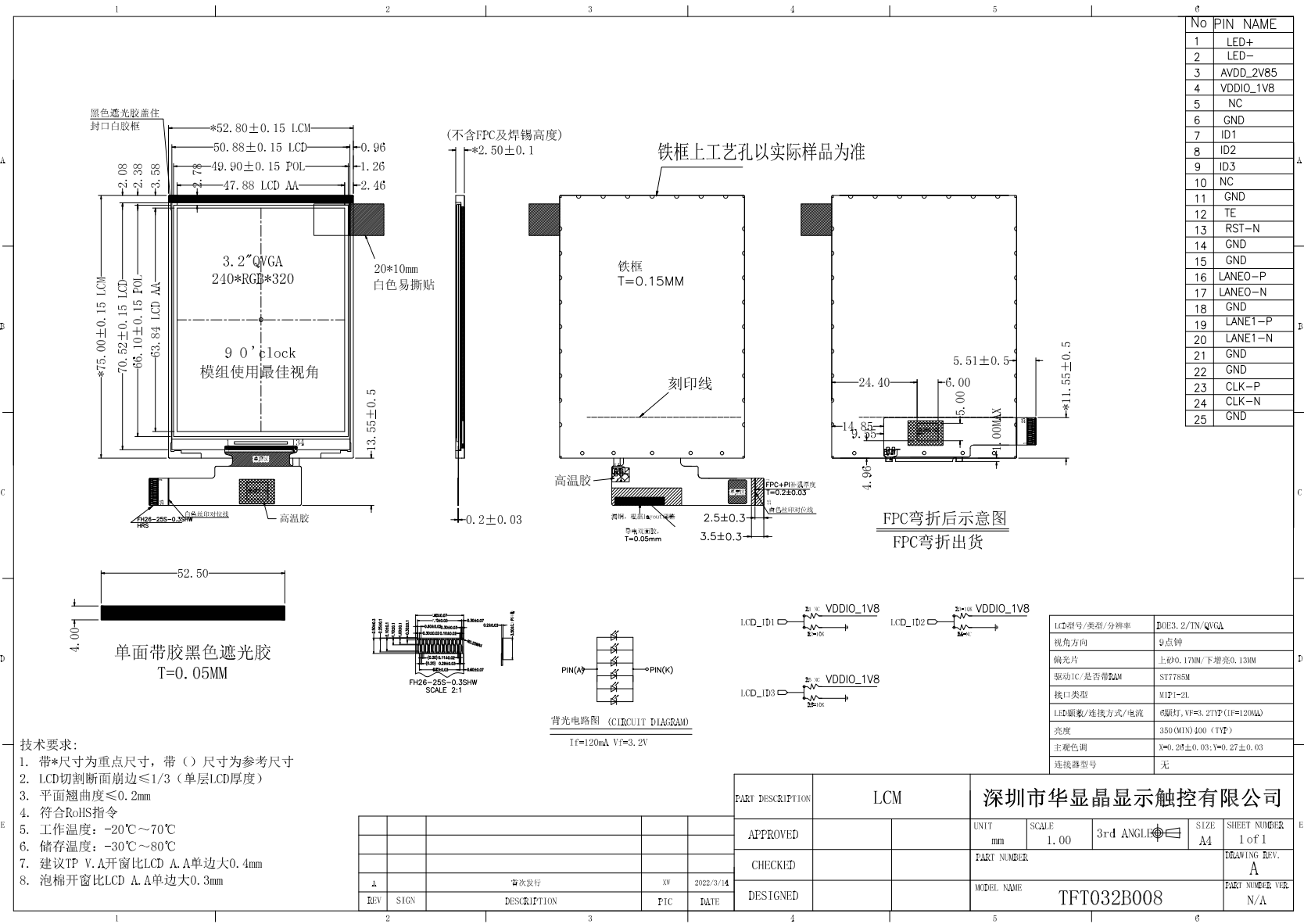

The drawing:
