• Size
• 3.2
• mm

• Resolution
• 480*800
• Dot

• Model No.
• TFT032B008

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 52.8x75x2.5
• mm

• Active Area
• 47.88x63.84
• mm

• View Angle
• All Angles

• Drive IC
• ST7701S

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

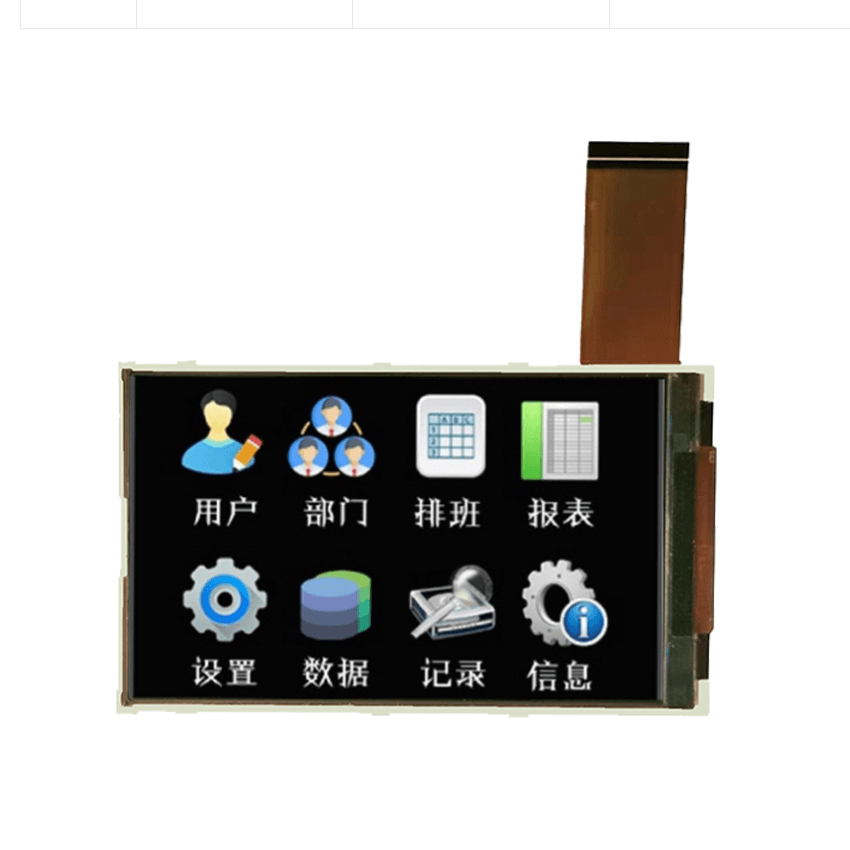

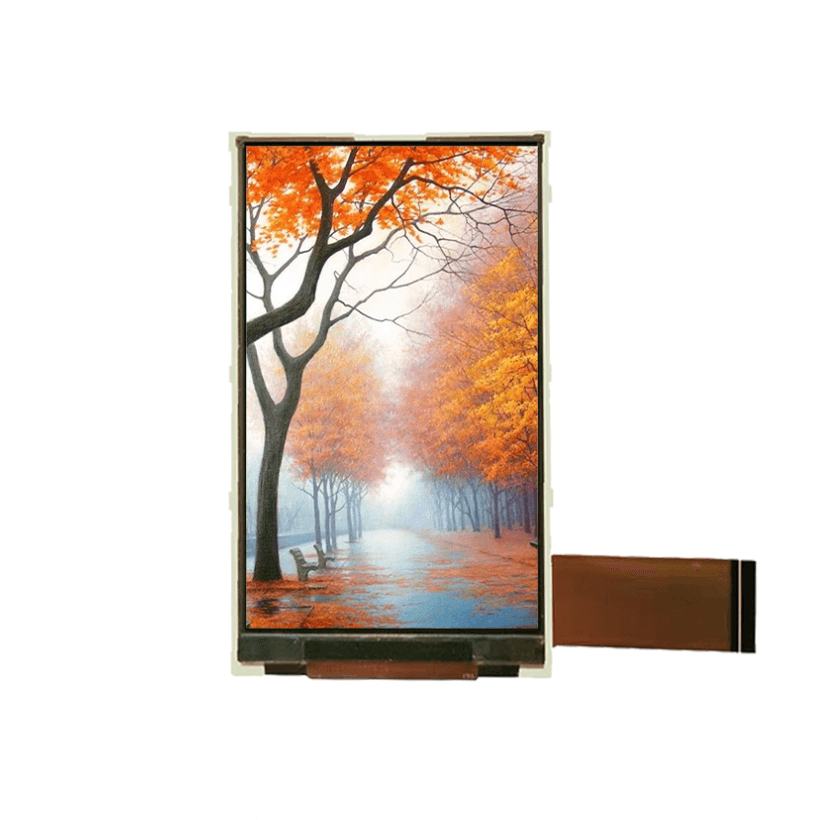

TFT032B008 – 3.2 Inch IPS TFT LCD Display (240×320) with MIPI Interface

Short Description

The TFT032B008 is a 3.2-inch IPS TFT LCD module with a 240×320 resolution and MIPI interface. It offers full viewing angles, excellent color reproduction, and stable performance, making it ideal for handheld terminals, control systems, and smart home devices.

Product Overview

The TFT032B008 display module from Hua Xian Jing Display Touch Limited delivers high-quality imaging in a compact form factor.
Featuring IPS technology for wide-angle viewing, it ensures vivid colors and consistent contrast from any direction.
The ST7701S driver IC provides smooth refresh rates, stable data transfer, and energy-efficient operation.
The MIPI interface supports high-speed communication, simplifying integration with modern processors.
Its metal frame with integrated backlight enhances structural strength, while the display operates reliably within a –20°C to +70°C range — perfect for embedded, portable, and industrial environments.

Key Features

3.2 Inch IPS Display (240×320) – Compact size with vibrant and sharp color reproduction.

MIPI Interface – High-speed data transmission and simplified wiring design.

ST7701S Driver IC – Ensures color stability and smooth display refresh.

Integrated Backlight (VF=2.8V, IF=120mA) – Uniform brightness and extended lifespan.

Wide Viewing Direction (All) – Excellent visibility from every angle.

Metal Frame Structure – Reinforced durability and heat dissipation.

Operating Temperature: –20°C ~ +70°C – Stable performance in various environments.

Applications

Smart Home Devices – Control panels, smart thermostats, and wall interfaces.

Industrial Control Terminals – Reliable performance for data display and control.

Handheld Equipment – Portable scanners, analyzers, and POS terminals.

Educational & IoT Devices – Compatible with STM32, Raspberry Pi, and similar boards.

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.

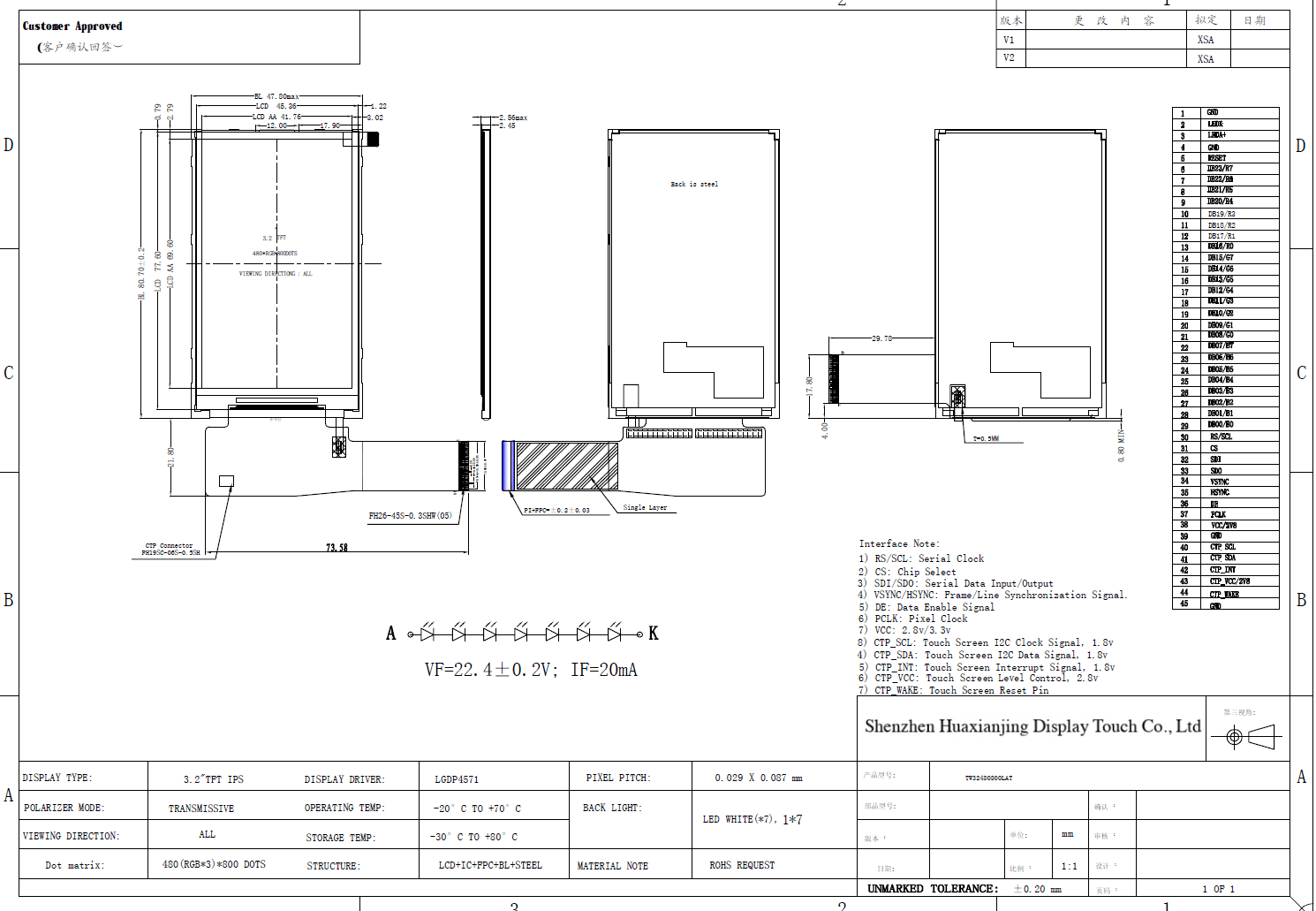

The drawing:
