• Size
• 3.5
• mm

• Resolution
• 320*480
• Dot

• Model No.
• TFT035B01

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 55.46x83.94x2.23
• mm

• Active Area
• 48.96x73.44
• mm

• View Angle
• All Angles

• Drive IC
• ILI9488

• Interface
• RGB

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

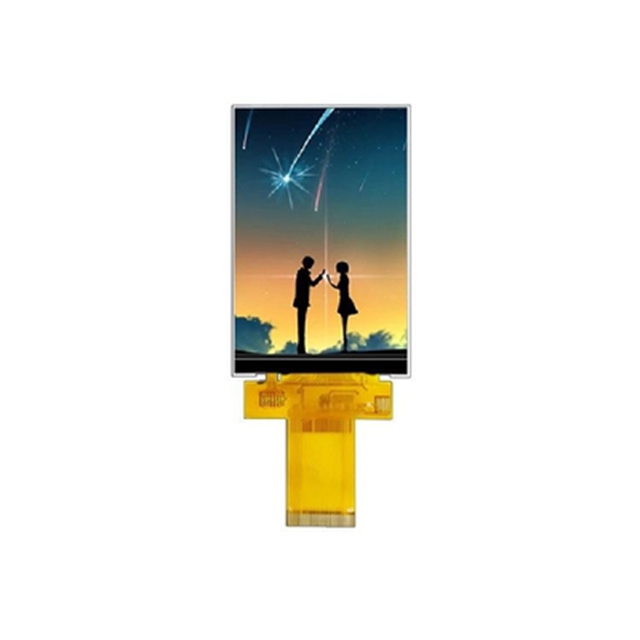

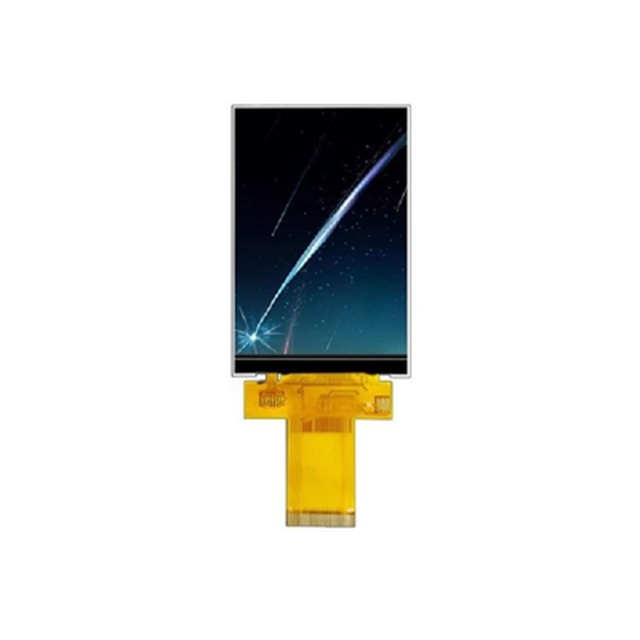

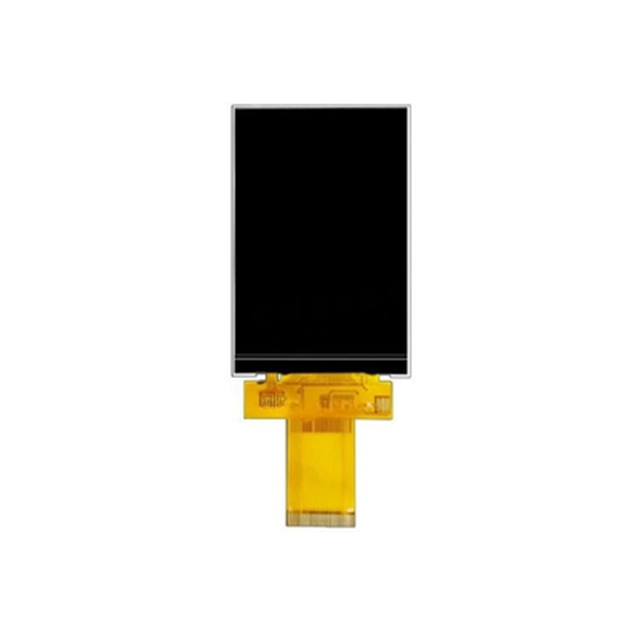

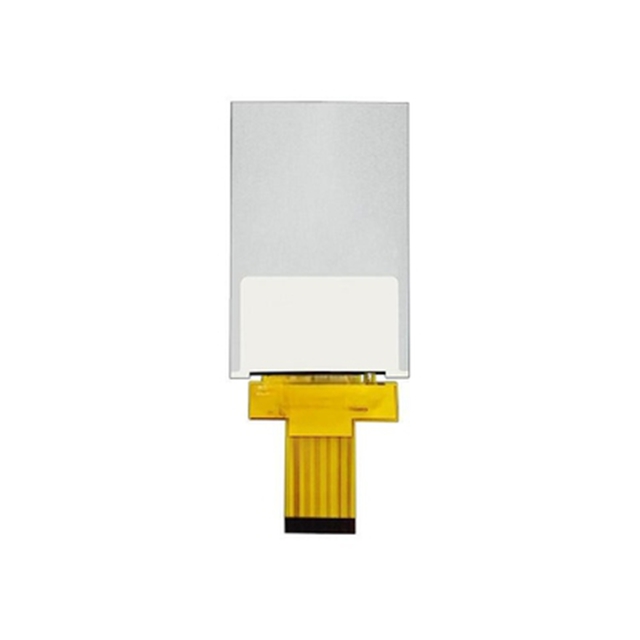

3.5 inch TFT Touch Screen 320*480 resolution SPI/RGB interface IPS full viewing angle driver IC ILI9488/FT5436

This is a 3.5 inch TFT Touch Screen with a resolution of 320*480. It offers SPI/RGB interfaces and features an IPS panel with a full viewing angle. The screen is driven by either the ILI9488 or FT5436 driver IC.

Product Characteristics:

3.5 inch display size, suitable for a variety of applications.

High-resolution 320*480 for sharp and vivid images.

SPI/RGB interfaces for flexible connectivity options.

IPS technology provides a full viewing angle, ensuring clear visibility from different directions.

Driven by reliable driver ICs (ILI9488/FT5436).

Applicable Scenarios:

Ideal for handheld gaming consoles for immersive gameplay.

Can be used in portable navigation devices for clear map display.

Suitable for industrial control panels for easy operation and monitoring.

Perfect for small medical devices for displaying patient information.

Applicable in home automation systems for user interfaces.

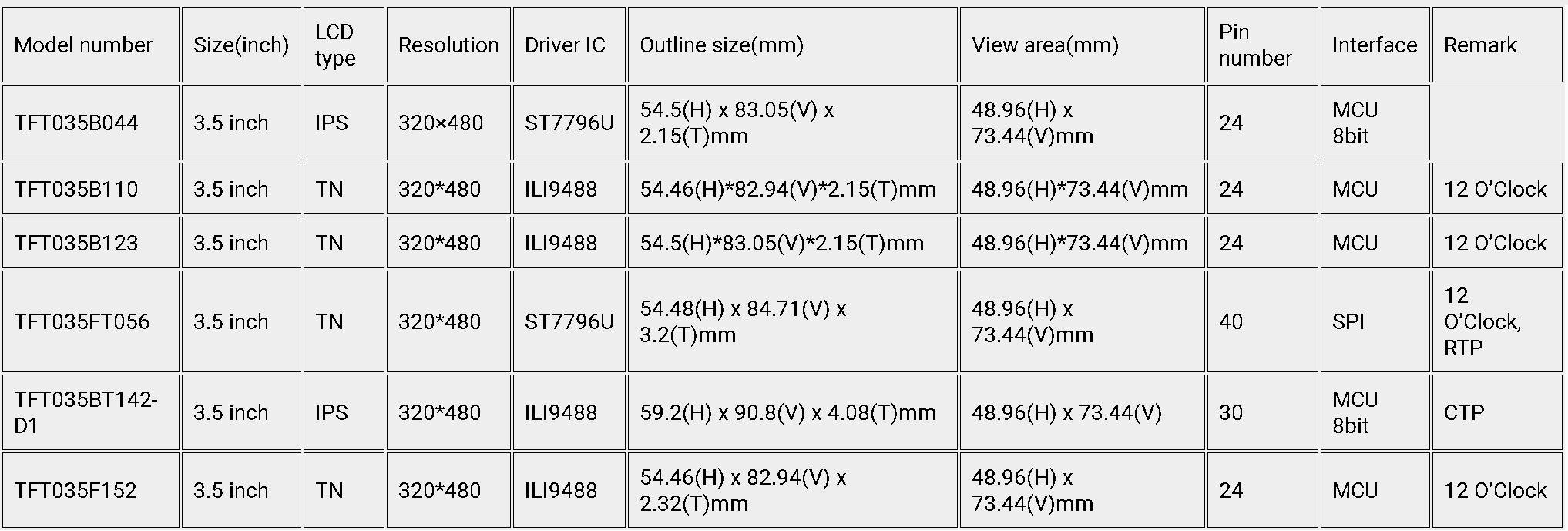

Product Parameter:

The drawing:
