• Size
• 5.0
• mm

• Resolution
• 800x480
• Dot

• Model No.
• TFT050B03

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 67.56x122.35x2.22
• mm

• Active Area
• 61.63x109.65
• mm

• View Angle
• All Angles

• Drive IC
• ST7701S

• Interface
• RGB

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

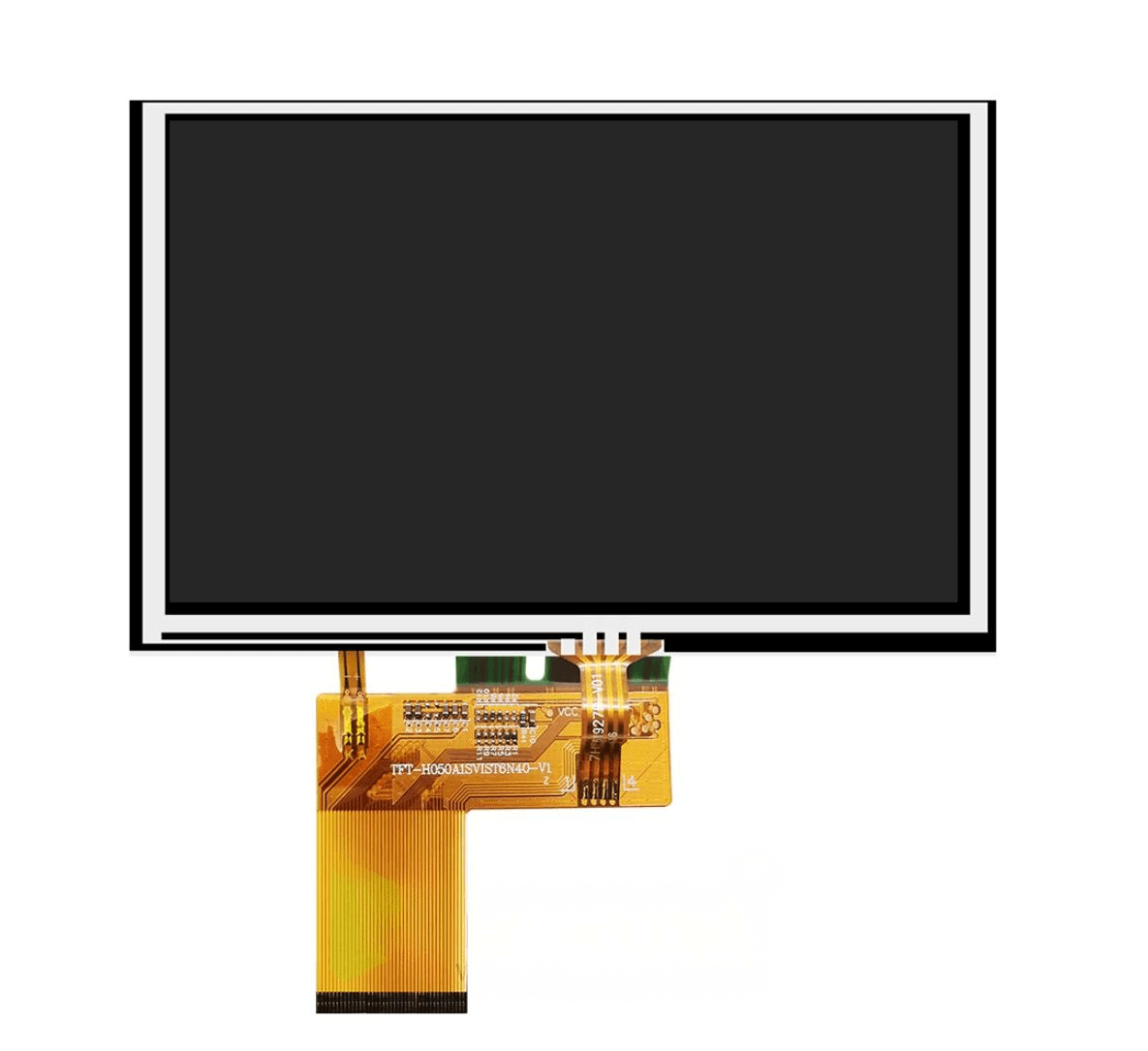

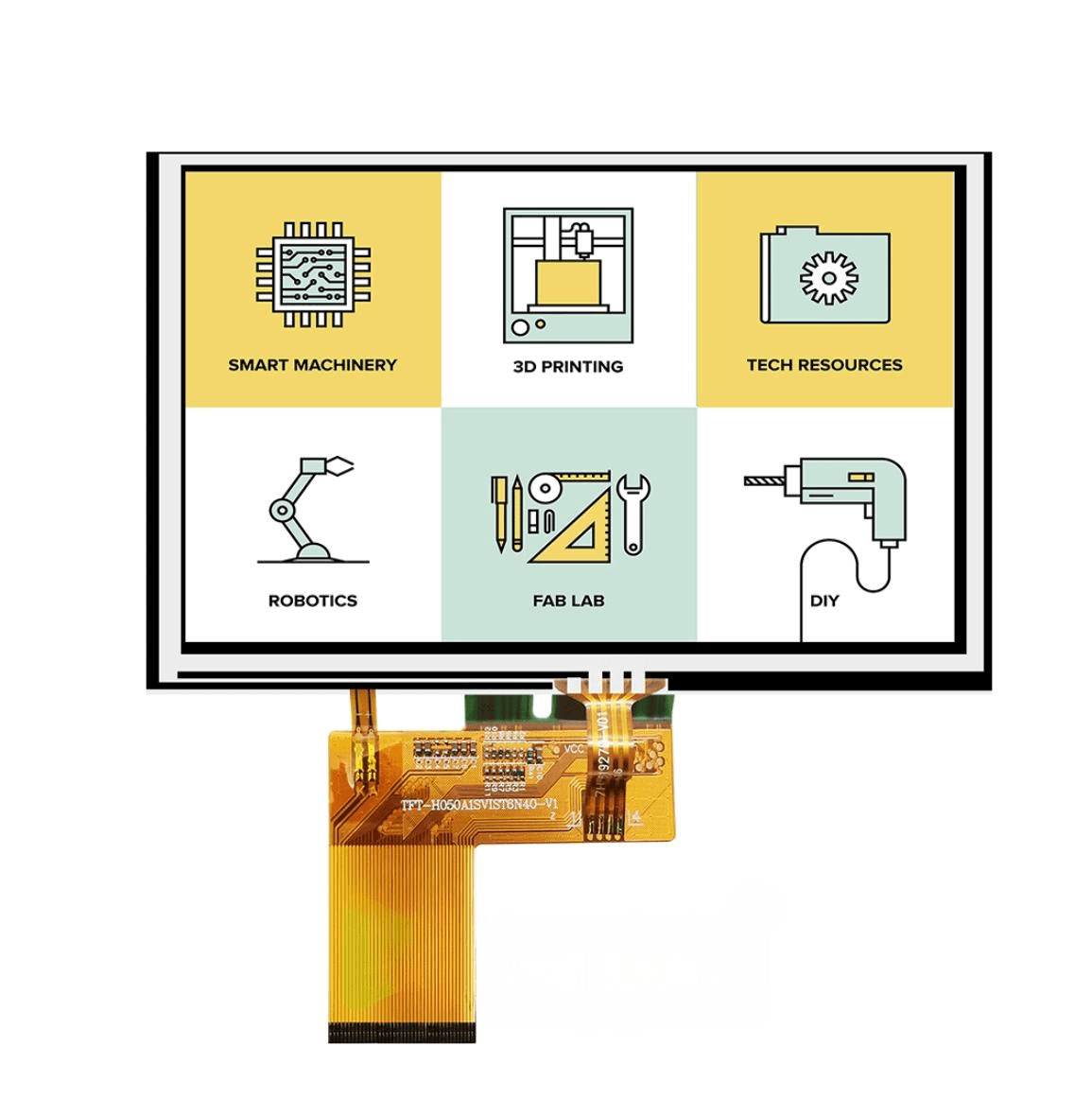

This is a high-quality 5 inch capacitive LCD touch display. With an RGB interface, it offers seamless connectivity.

The IPS panel provides a full viewing angle, ensuring clear visibility from any direction. Boasting a brightness of 350, it is suitable for various lighting conditions. With a resolution of 480x854, it presents clear and detailed images. Powered by the ST7701S driver IC, it guarantees stable and reliable performance.

This LCD module currently has 3 different variations. Their same attributes are:

•Resolution: 720×1280/800x480/480x854

•Pin Number: 40 Pins;

•Interface: RGB.

Similarly, because different customers have different needs, this 5.0-inch TFT LCD Module also has different attributes:

•LCD Type: IPS / TN;

•Driver IC: ILI9981C/ST7257 / ST7701S;

•Outline Size: 120.7(H)*75.8(V)*4.2(T)mm / 120.7(H)*75.3(V)*2.75(T)mm;

•View Area: 110.88(H)*62.83(V)mm / 108.0(H)*64.8(V)mm.

Product Features:

•Capacitive touch functionality for intuitive and responsive interaction.

•RGB interface for easy integration with different systems.

•IPS technology for excellent color reproduction and wide viewing angles.

•350 brightness for clear display even in moderate lighting.

•800x480 resolution for crisp and detailed visuals.

•ST7701S driver IC for enhanced stability and performance.

Application Scenarios:

•Industrial control interfaces for efficient operation and monitoring.

•Portable electronic devices such as tablets and handheld gaming consoles.

•Automotive dashboard displays for navigation and entertainment.

•Smart home control panels for convenient management of home systems.

•Medical devices for clear display of patient information and controls.
