• Size
• 10.1
• mm

• Resolution
• 400x1280
• Dot

• Model No.
• TFT101B

• Product Type
• IPS

• Shape of Display
• Bar

• Outline Size
• 258.4 × 79.3 × 3.0
• mm

• Active Area
• 237.6 × 74.25
• mm

• View Angle
• All Angles

• Drive IC
• FL7707N

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

•
  Smart Home
•
  Medical Devices
•
  Smart Home
•
  Medical Devices
•
  Smart Home

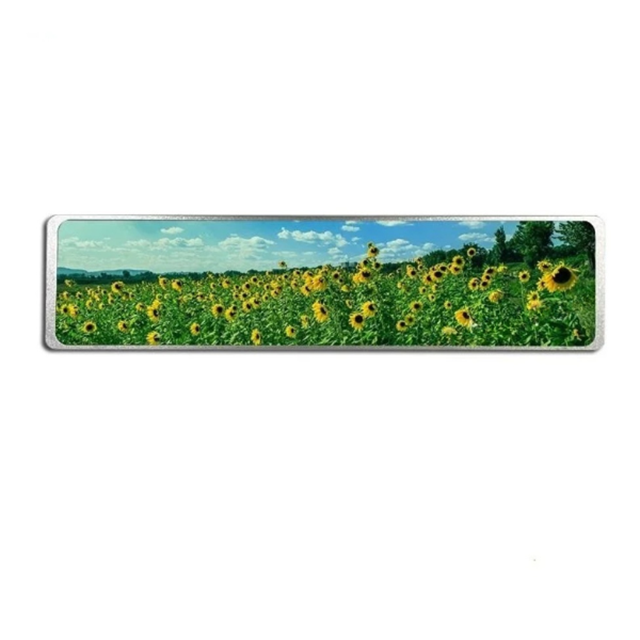

10.1 inch Bar Type TFT LCD Display 1280x400 Resolution with HX8297 Driver and LVDS Interface

The TFT101B001 is a high-performance 10.1-inch bar type TFT LCD module designed for professional and embedded applications requiring an elongated display format. With a 1280×400 resolution, this display offers crisp, vivid visuals suitable for dashboards, HMI systems, and digital signage. Its TFT active-matrix structure ensures consistent image quality, while the wide aspect ratio enhances user interface flexibility for horizontally oriented layouts.

Powered by the HX8297 driver IC and an LVDS interface, the module supports stable, high-speed image transmission, making it compatible with modern processors and industrial control systems. The 16-LED white backlight provides a brightness of approximately 500 cd/m², ensuring excellent readability under both indoor and outdoor conditions. The mechanical design adopts a slim 3.0 mm thickness, enabling integration in compact enclosures.

The TFT101B001 is engineered for durability and reliability, featuring an operating temperature range of -10°C to +60°C and a storage range of -20°C to +70°C. Its optical films, including diffuser and prism layers, optimize backlight uniformity, ensuring uniform brightness across the screen. This module is RoHS-compliant and supports long-life operation, ideal for applications demanding both aesthetic presentation and functional robustness.

Features

10.1-inch panoramic TFT LCD with 1280x400 resolution and vivid color reproduction

LVDS interface for stable, high-speed data transfer and EMI resistance

High brightness (500 nits) with 16-LED white backlight for superior visibility

Wide viewing direction suitable for dashboard and industrial display use

Robust mechanical design and wide temperature tolerance for demanding environments

Anti-glare, transmissive optical structure for enhanced clarity under ambient light

Applications

Automotive dashboards, control clusters, and infotainment displays

Industrial HMI panels, automation controllers, and rack systems

Smart vending machines and ticketing kiosks

Digital signage, retail shelf displays, and advertising terminals

Medical and laboratory equipment requiring panoramic visualization

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
