• Size
• 5.5
• mm

• Resolution
• 1080x1920
• Dot

• Model No.
• TFT043B02

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 70.65x129.2x1.52
• mm

• Active Area
• 68.04x120.94
• mm

• View Angle
• All Angles

• Drive IC
• HX8399C

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

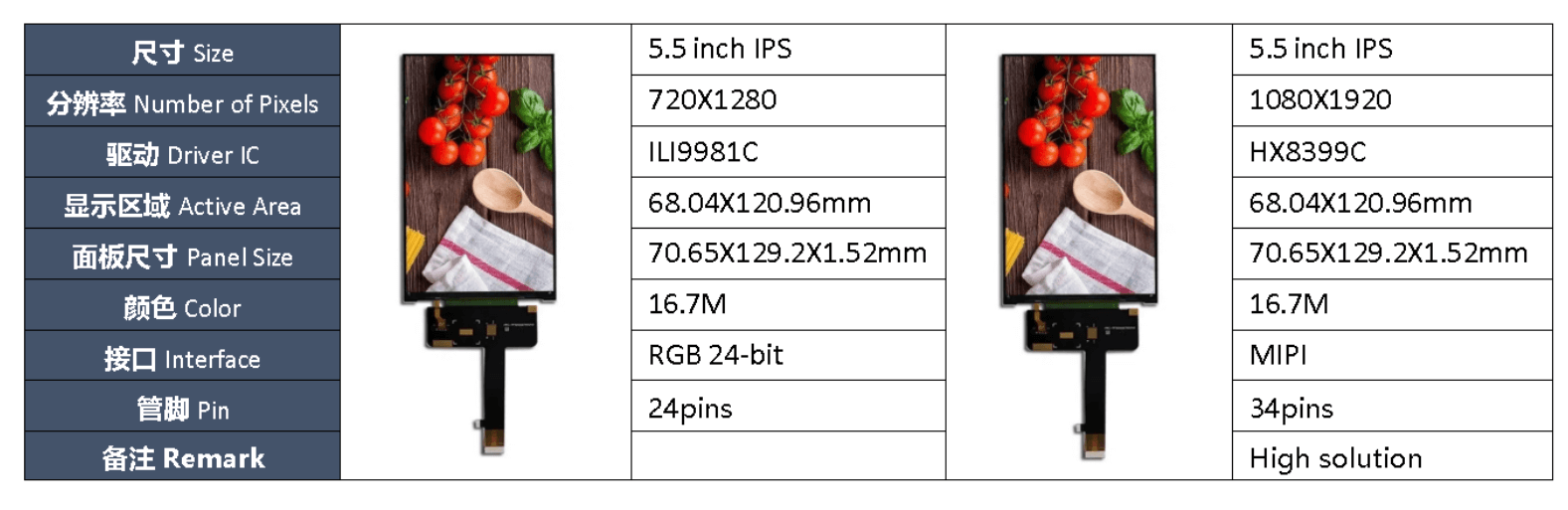

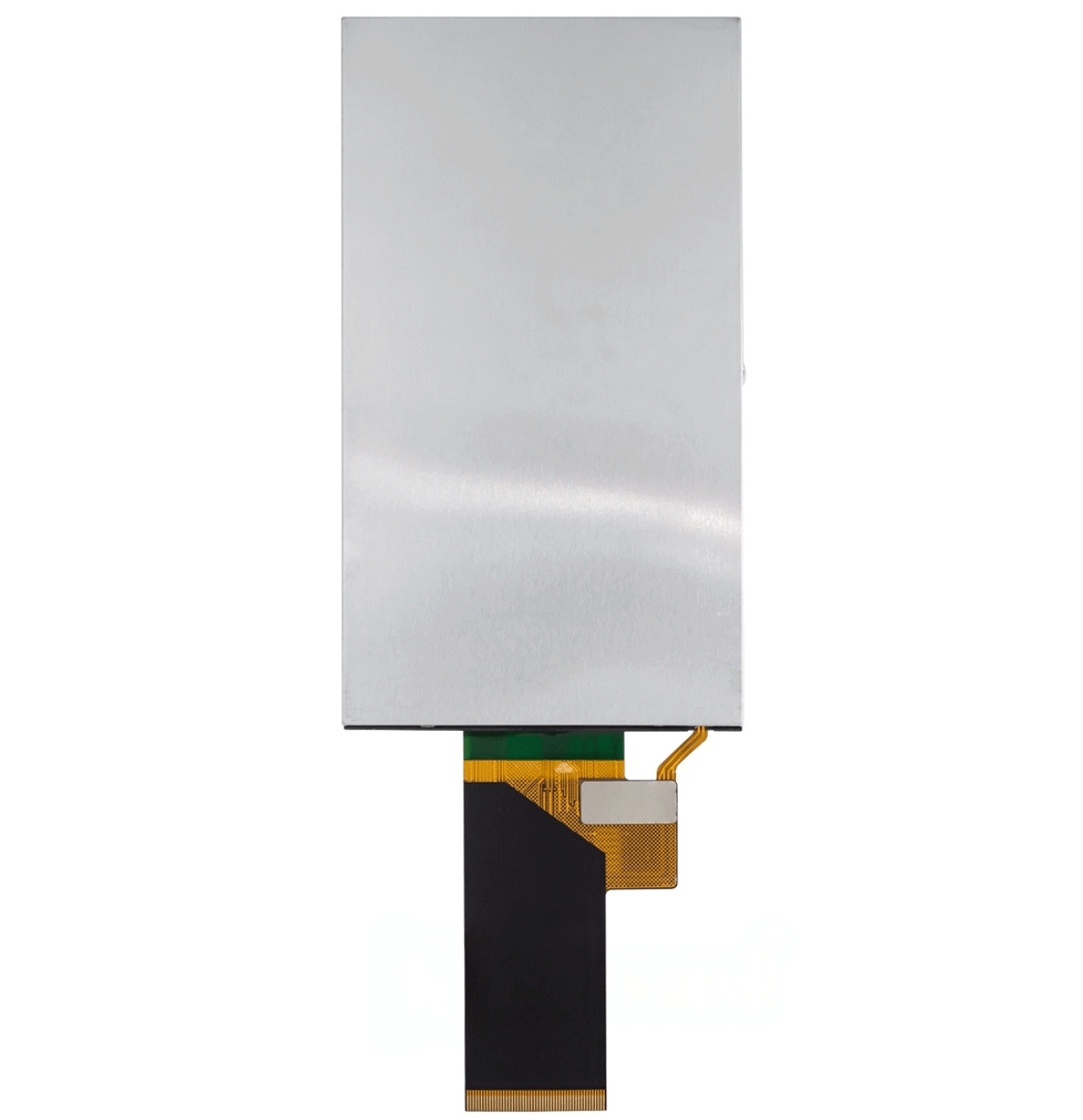

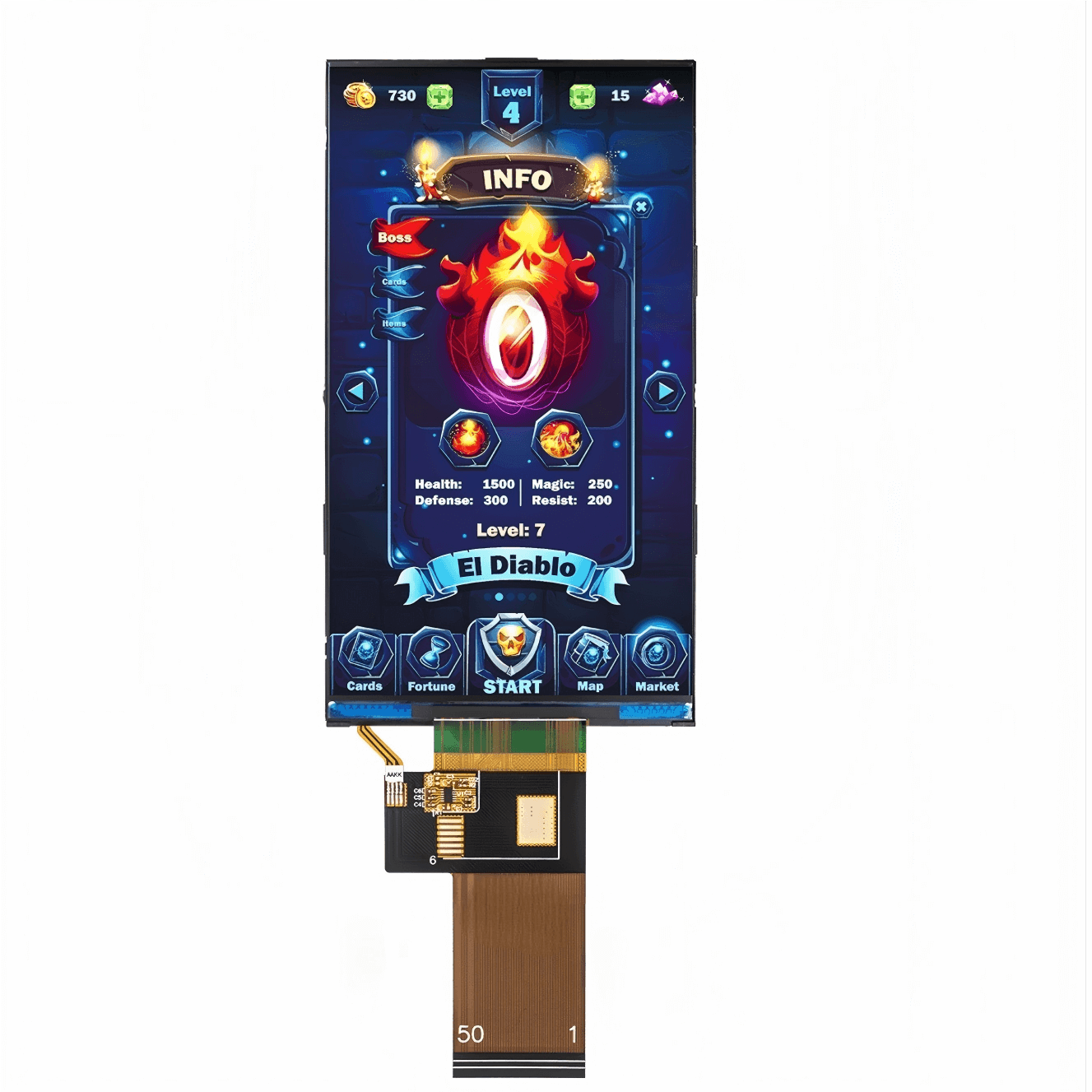

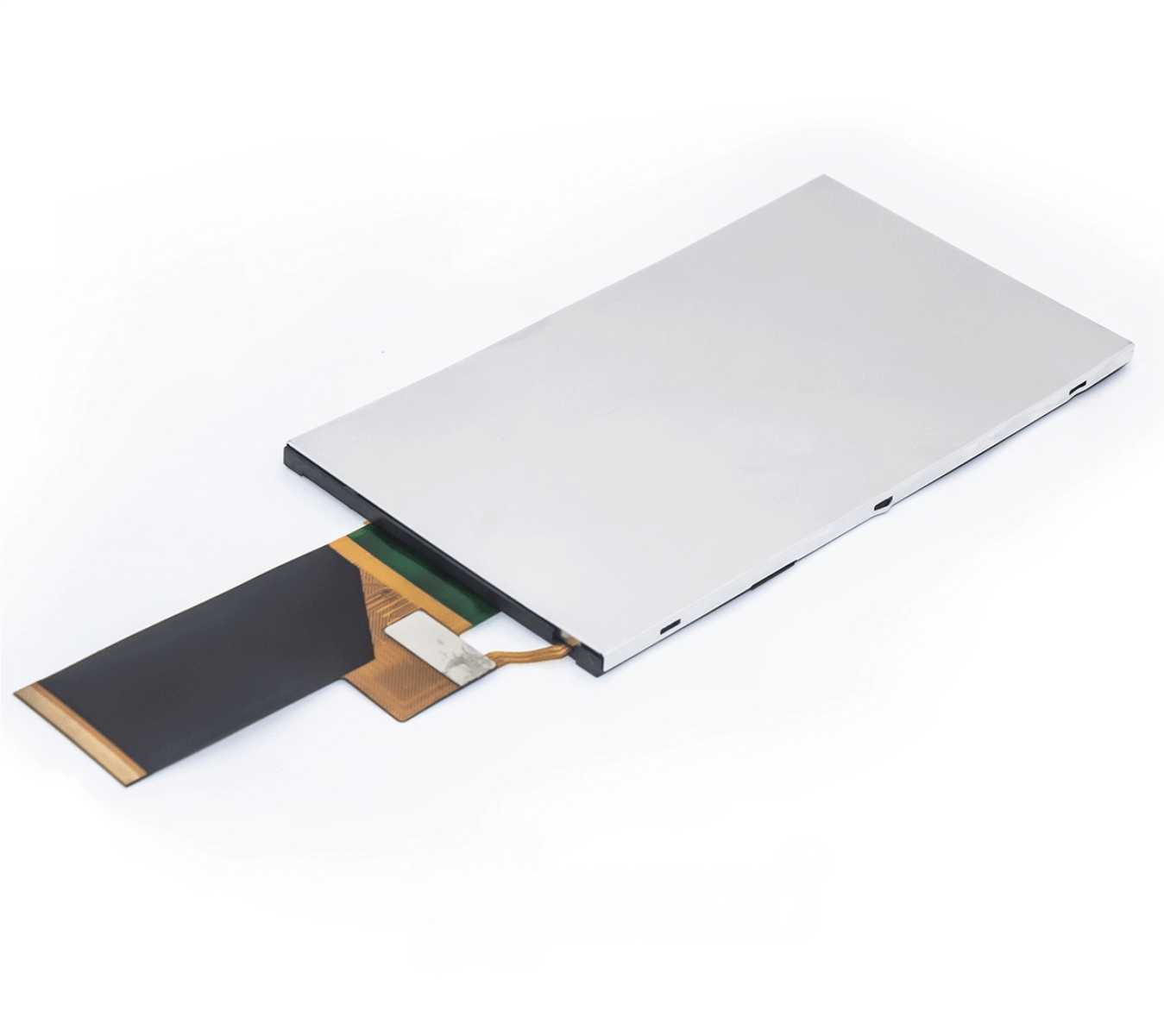

5.5 inch TFT Touch Screen 1080x1920 resolution MIPI interface IPS full viewing angle driver HX8399C

This is a 5.5 inch TFT Touch Screen with a resolution of 1080x1920. It offers SPI/RGB interfaces and features an IPS panel with a full viewing angle. The screen is driven by either the HX8399C driver IC.

Product Characteristics:

5.5 inch display size, suitable for a variety of applications.

High-resolution 1080x1920 for sharp and vivid images.

MIPI interfaces for flexible connectivity options.

IPS technology provides a full viewing angle, ensuring clear visibility from different directions.

Driven by reliable driver ICs (HX8399C ).

Applicable Scenarios:

Ideal for handheld gaming consoles for immersive gameplay.

Can be used in portable navigation devices for clear map display.

Suitable for industrial control panels for easy operation and monitoring.

Perfect for small medical devices for displaying patient information.

Applicable in home automation systems for user interfaces.

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
