• Size
• 7.0
• mm

• Resolution
• 800x480
• Dot

• Model No.
• TFT070B02

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 165x100x3.5
• mm

• Active Area
• 154.08x85.92
• mm

• View Angle
• All Angles

• Drive IC
• TC76680

• Interface
• RGB

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

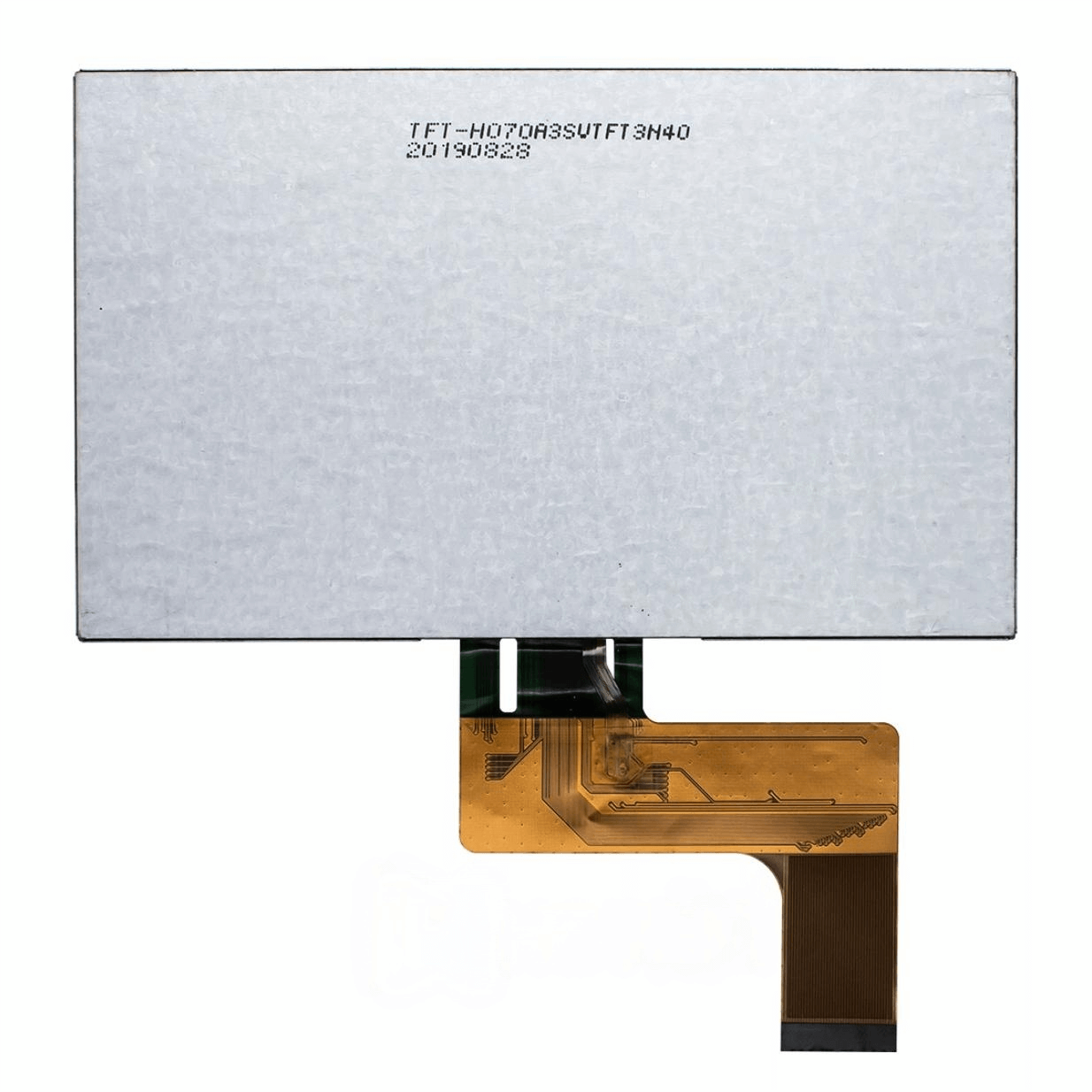

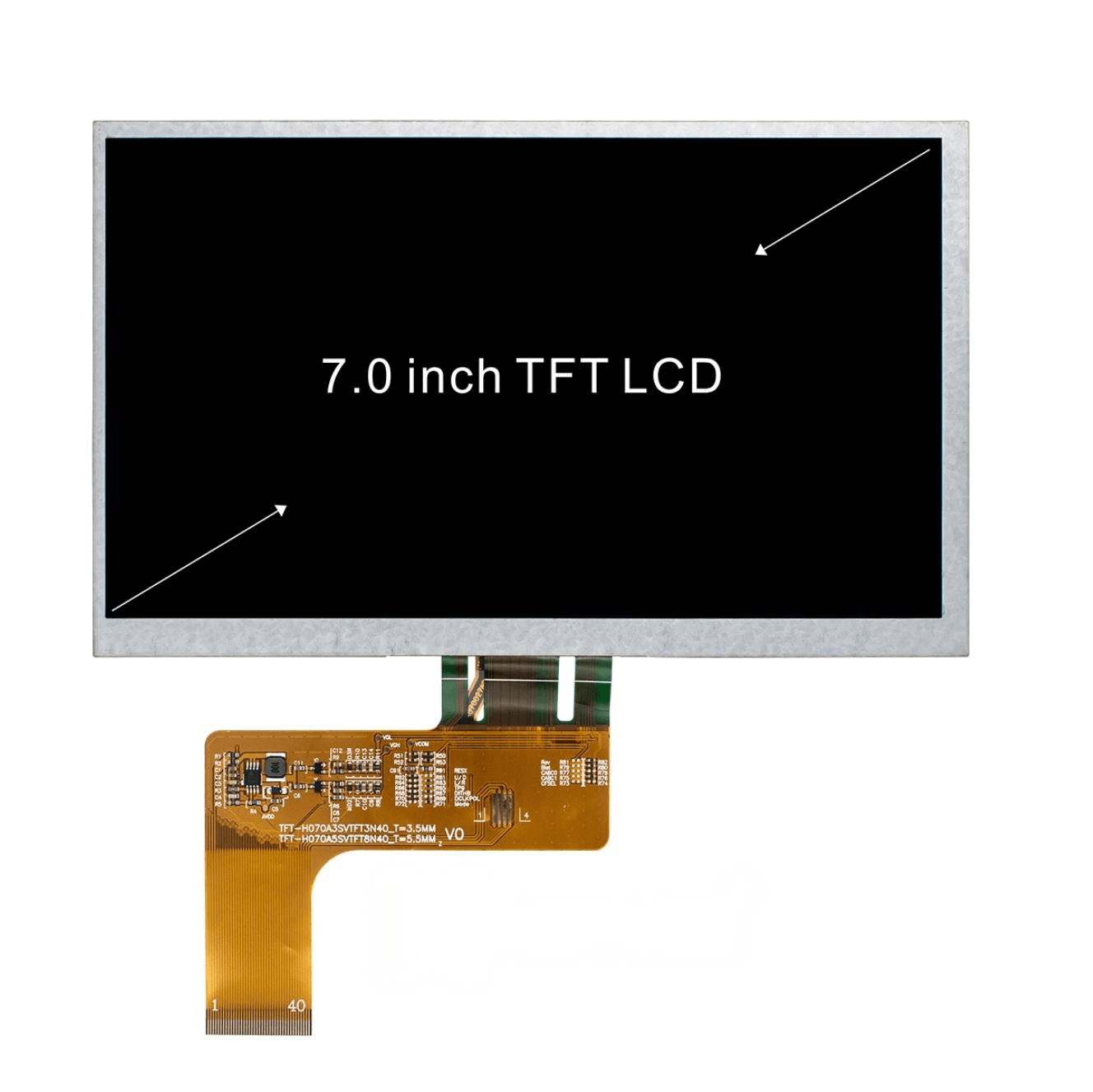

7.0 inch LCD display RGB interface 800X480 Pixels 350 brightness driver IC TC76680

This 7 inch LCD display module with RGB interface offers a high-resolution viewing experience. With a resolution of 800x480 and a brightness of 350, it provides clear and vivid visuals. Driven by the TC76680 driver IC, it ensures reliable performance. Ideal for a variety of applications including portable game consoles (simple type), industrial handheld data collectors, small medical device data loggers, and smart sockets/switch control panels.

Product Features:

7 inch large display size for enhanced visibility.

RGB interface for flexible connectivity.

High resolution of 800x480 for sharp images and text.

350 brightness for good visibility in different lighting conditions.

TC76680 driver IC for stable and efficient operation.

Application Scenarios:

Portable game consoles (simple type): Provides an immersive gaming experience with its clear display and suitable size.

Industrial handheld data collectors: Enables easy data viewing and input in industrial environments.

Small medical device data loggers: Displays important medical data for accurate monitoring.

Smart sockets/switch control panels: Allows for intuitive control and status display.

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
