• Size
• 7.0
• mm

• Resolution
• 1024x600
• Dot

• Model No.
• TFT070BT021

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 165x100x4.4
• mm

• Active Area
• 154.08x85.92
• mm

• View Angle
• All Angles

• Drive IC
• ILI6110

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

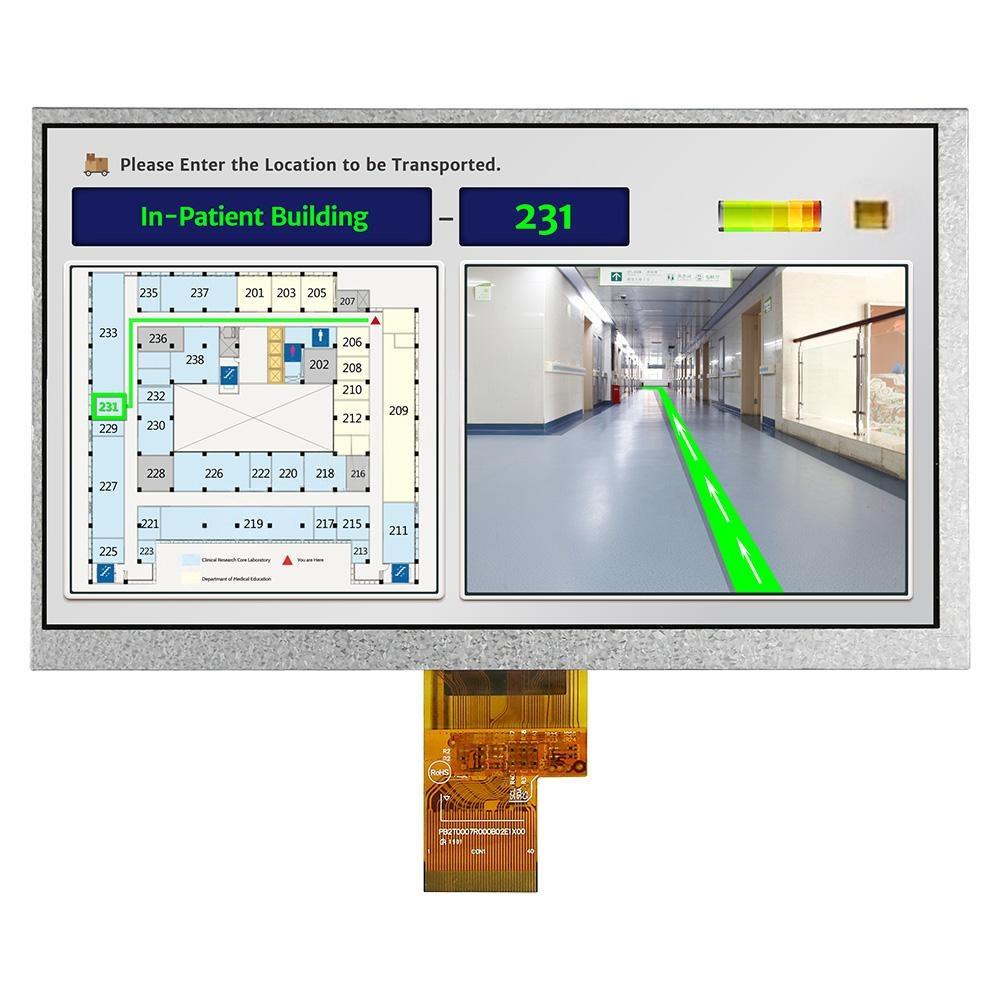

TFT070BT021-Q0 – 7.0 Inch IPS LCD Display (1024×600) with Capacitive Touch & RGB Interface

Product Overview

The TFT070BT021-Q0 from Hua Xian Jing Display Touch Limited is a high-performance 7.0-inch IPS display module that combines clear visuals, touch sensitivity, and robust build quality.

Using IC ILI6110 as the driver IC, this display supports RGB 24-bit data input and provides vivid color reproduction with a wide 16:9 aspect ratio.

The integrated G+G capacitive touch panel (cover glass + sensor) ensures smooth, multi-point touch operation with high transmittance and scratch resistance.

Its LED backlight (9V, 180mA) provides uniform brightness across the display, making it suitable for both indoor and semi-outdoor environments.

With a wide operating temperature range (-20°C to +70°C), it performs reliably under various environmental conditions.

Key Features

• 7.0 Inch IPS Display with Touch Panel – Combines visual clarity and smooth capacitive touch operation.

• High-Resolution 1024×600 – Provides clear, detailed, and sharp images for GUIs, menus, and multimedia.

• RGB Interface – Simple integration for embedded systems, compatible with many MCU and SBC platforms.

• Wide Operating Temperature – From -20°C to +70°C, suitable for industrial and outdoor systems.

• High Brightness and Uniformity – LED backlight (9V / 180mA) ensures stable luminance and excellent visibility.

• Electrostatic Protection – 8KV air discharge and 6.5KV contact protection ensure reliable performance in harsh environments.




Applications

• Industrial Control Systems – Ideal for PLCs, HMI panels, and data acquisition terminals.

• Smart Home & IoT Devices – Used in smart thermostats, home automation panels, and wall-mounted interfaces.

• Educational & Learning Devices – Suitable for teaching tablets and e-learning control systems.

• Medical Equipment – Provides precise color and responsive touch for portable diagnostic and display devices.




Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
