• Size
• 9.35
• mm

• Resolution
• 800x1280
• Dot

• Model No.
• TFT935k009

• Product Type
• IPS

• Shape of Display
• Bar

• Outline Size
• 65.0x229.1x2.6
• mm

• Active Area
• 62.4x166
• mm

• View Angle
• All Angles

• Drive IC
• ICN9707

• Interface
• MIPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

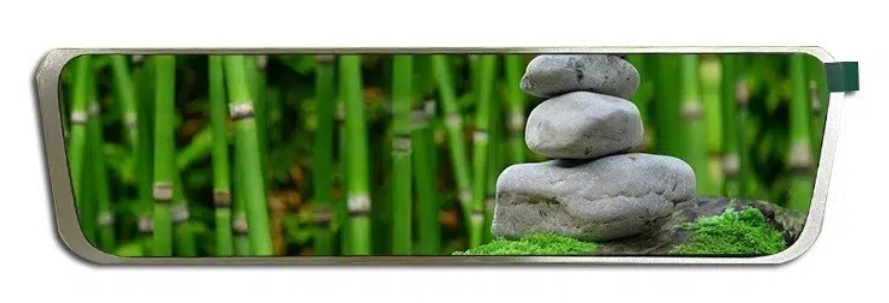

TFT935K009 – 9.35 Inch IPS LCD Display (480×1280) with MIPI Interface

Product Overview

The 9.35-inch TFT LCD module from Hua Xian Jing Display Touch Limited offers an ultra-wide aspect ratio design and high-definition performance, ideal for modern embedded displays.
With IPS technology, it provides consistent image quality from all angles. The MIPI interface ensures fast data transmission and easy integration with advanced processors.
Driven by the ICN9707 driver IC, the display guarantees color accuracy, stability, and smooth refresh performance.
A 400-nit LED backlight (14 LEDs, 40 mA, 7×2 array) ensures excellent brightness and uniformity in various indoor environments.

Key Features

• Wide Viewing Angle (IPS Full Viewing) – Consistent color and contrast from 0° to 70°, ideal for horizontal and vertical viewing.

• High-Resolution 480×1280 Display – Clear and crisp images suitable for GUI-rich applications and text displays.

• MIPI Interface – Simplified connection, high-speed transmission, and reduced wiring complexity.

• ICN9707 Driver IC – Ensures color accuracy, low power consumption, and stable operation.

• 400 nits Brightness with 14-LED Backlight – Excellent uniformity (≥80%), ideal for indoor and semi-outdoor environments.




Applications

• Automotive Displays – Perfect for rear-view systems, infotainment, and dashboard panels.

• Industrial Control Equipment – Reliable performance and visibility in various working conditions.

• Smart Home & IoT Devices – Sleek, narrow form factor fits smart control panels and wall-mounted systems.

• Medical Instruments – Accurate color and stable display for diagnostic and monitoring devices.




Technical Specifications
