• Size
• mm

• Resolution
• 20x2
• Dot

• Model No.
• HSM02002A

• Product Type
• Mono COB

• Shape of Display
• Bar

• Outline Size
• 116 × 37 × 12.9
• mm

• Active Area
• 85 × 18.6
• mm

• View Angle
• 6/12 o'clock

• Drive IC
• AIP31066

• Interface
• Parallel

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

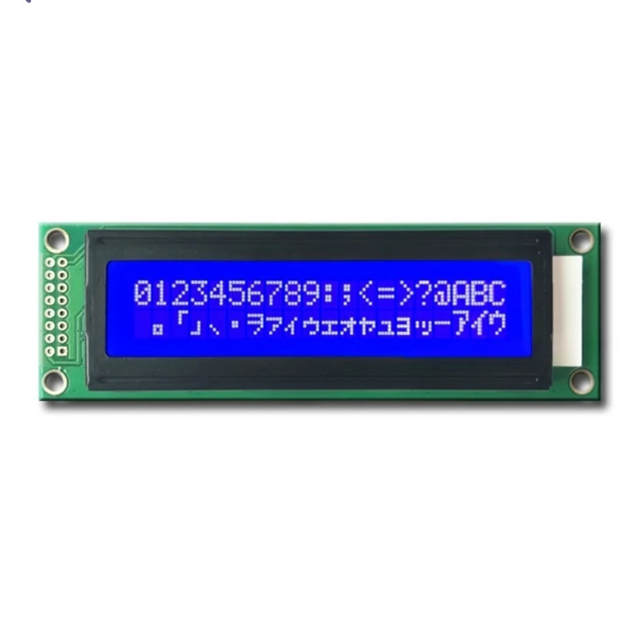

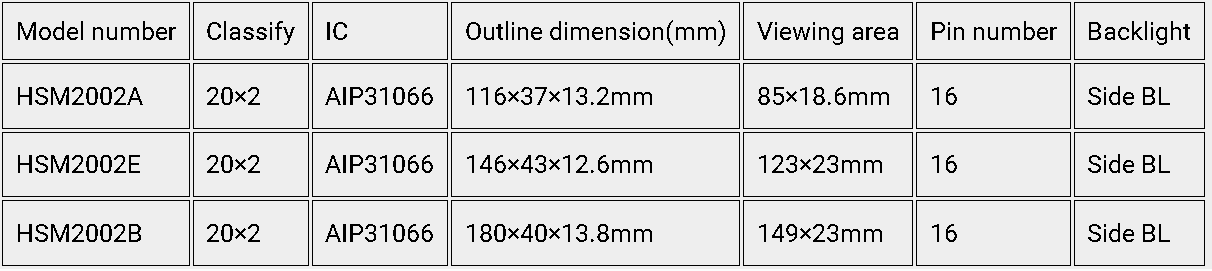

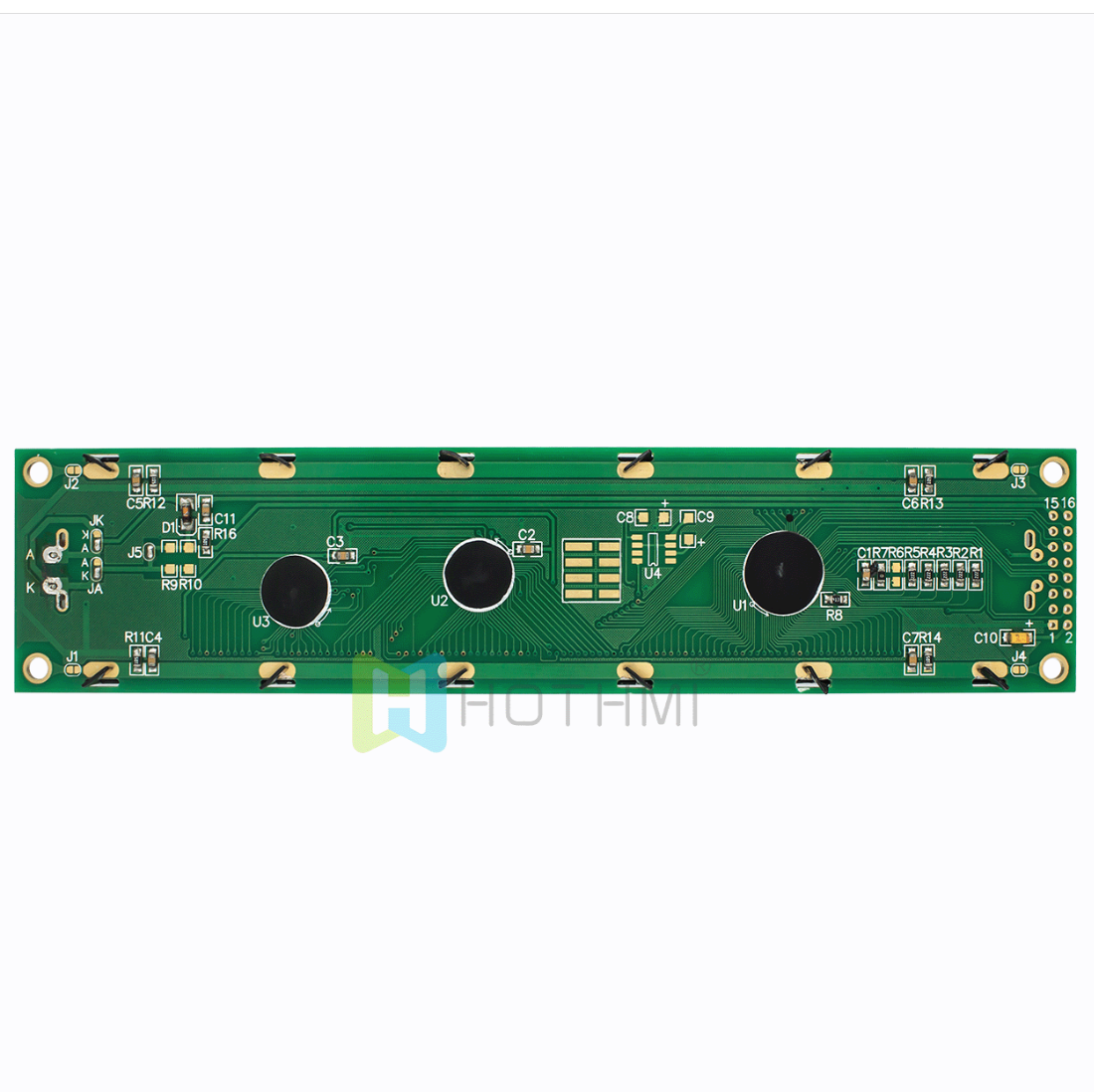

HSM2002A – 20×2 Character LCD Display (STN-Blue Negative) with Parallel Interface

Product Overview

The HSM2002A LCD module offers a 20 characters × 2 lines display configuration, using STN-blue negative transmissive technology to ensure excellent contrast and readability in dim or indoor environments.
It is driven by an HD44780-compatible controller, supporting a 5V single power supply and 8-bit parallel interface for easy integration with common MCUs such as STM32, Arduino, and 8051.
The white LED backlight provides uniform brightness with low power consumption (5V / 40mA).
With a –20°C to +70°C operating range, this module is designed for long-term reliability in industrial and commercial environments.

Key Features

20×2 Character Display (STN-Blue Negative) – Clear text and stable contrast.

HD44780-Compatible Controller – Industry standard for wide MCU compatibility.

White LED Backlight (5V / 40mA) – Energy-efficient and bright illumination.

Standard 16-Pin Parallel Interface – Easy to connect and program.

Operating Temperature: –20°C ~ +70°C – Suitable for industrial and outdoor applications.

Compact Size: 116 × 37 mm PCB – Fits in compact system housings.

RoHS Compliant – Environmentally friendly and durable design.

Applications

Industrial Control Panels – Displaying process data and status messages.

Test & Measurement Instruments – Reliable text readouts.

Embedded Systems – Compatible with Arduino, Raspberry Pi, and STM32 projects.

Home & Office Equipment – Used in timers, automation controllers, and POS systems.

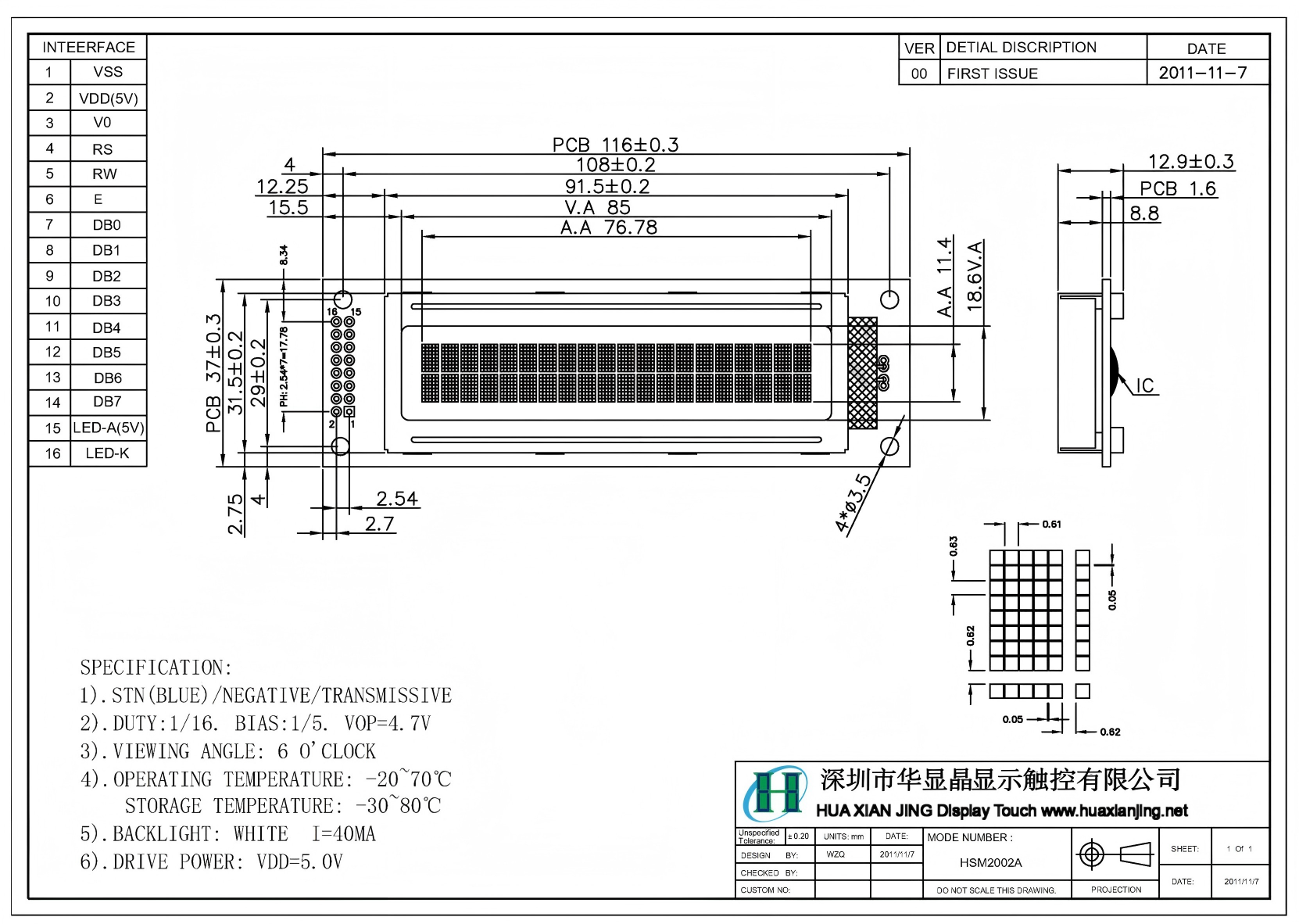

The drawing:
