• Size
• mm

• Resolution
• 24x2
• Dot

• Model No.
• HSM02004A

• Product Type
• Mono COB

• Shape of Display
• Bar

• Outline Size
• 118 × 36 × 12.9
• mm

• Active Area
• 94.5x18
• mm

• View Angle
• 6o'clock

• Drive IC
• AIP31066

• Interface
• Parallel

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

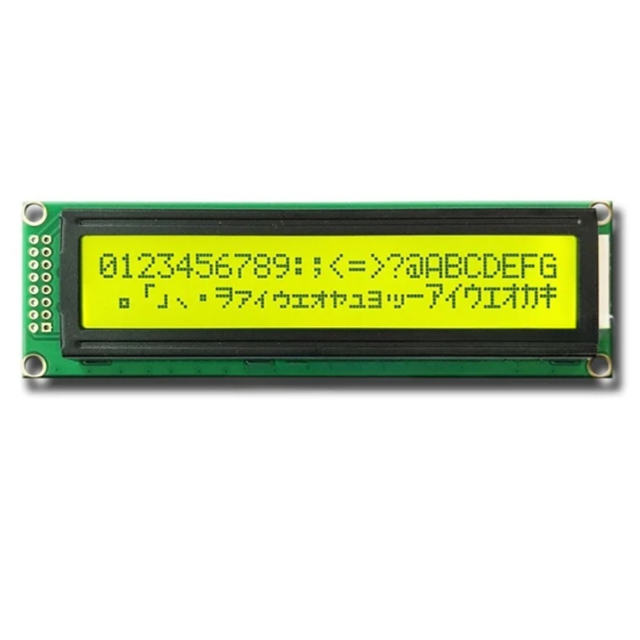

HSM2402A – 24×2 Character LCD Display (STN Yellow-Green Positive) with Parallel Interface

Product Overview

The HSM2402A is a 24 characters × 2 lines STN LCD display that offers clear text presentation and stable contrast in diverse lighting environments.

It adopts a yellow-green positive transflective mode, making it readable under natural light and backlit conditions.

Driven by an HD44780-compatible controller, this module uses a 5V single power supply and a standard 8-bit parallel interface, ensuring broad compatibility with MCUs such as STM32, Arduino, and Raspberry Pi.

Its Y-G LED backlight ensures consistent brightness and low power consumption (5V / 40mA).

With an operating range from –20°C to +70°C, the HSM2402A is widely used in industrial control panels, laboratory instruments, and automation systems.

Key Features

24×2 Character Display (STN-Y/G Positive) – Clear visibility in indoor and daylight conditions.

Transflective Type – Readable under ambient light or backlight illumination.

HD44780-Compatible Controller – Standard parallel interface for easy MCU integration.

Wide Temperature Range: –20°C ~ +70°C – Suitable for industrial environments.

5V Power Supply – Simple and universal power compatibility.

Y-G LED Backlight (5V / 40mA) – Uniform brightness and long lifespan.

Durable Construction – Compact PCB with reinforced edges for stable mounting.

Applications

Industrial Automation Panels – Real-time status and parameter display.

Measurement Equipment – Text output for test instruments and analyzers.

Smart Home Controllers – Displays for thermostat or appliance interfaces.

Embedded Devices – MCU-based control modules and educational kits.

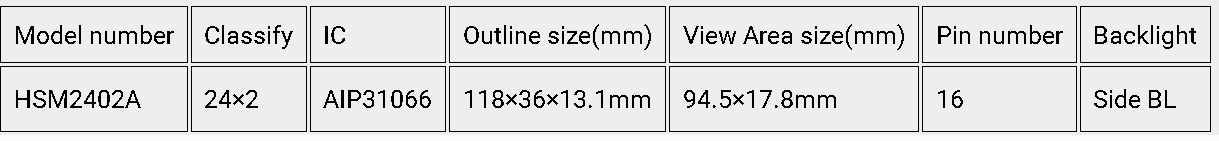

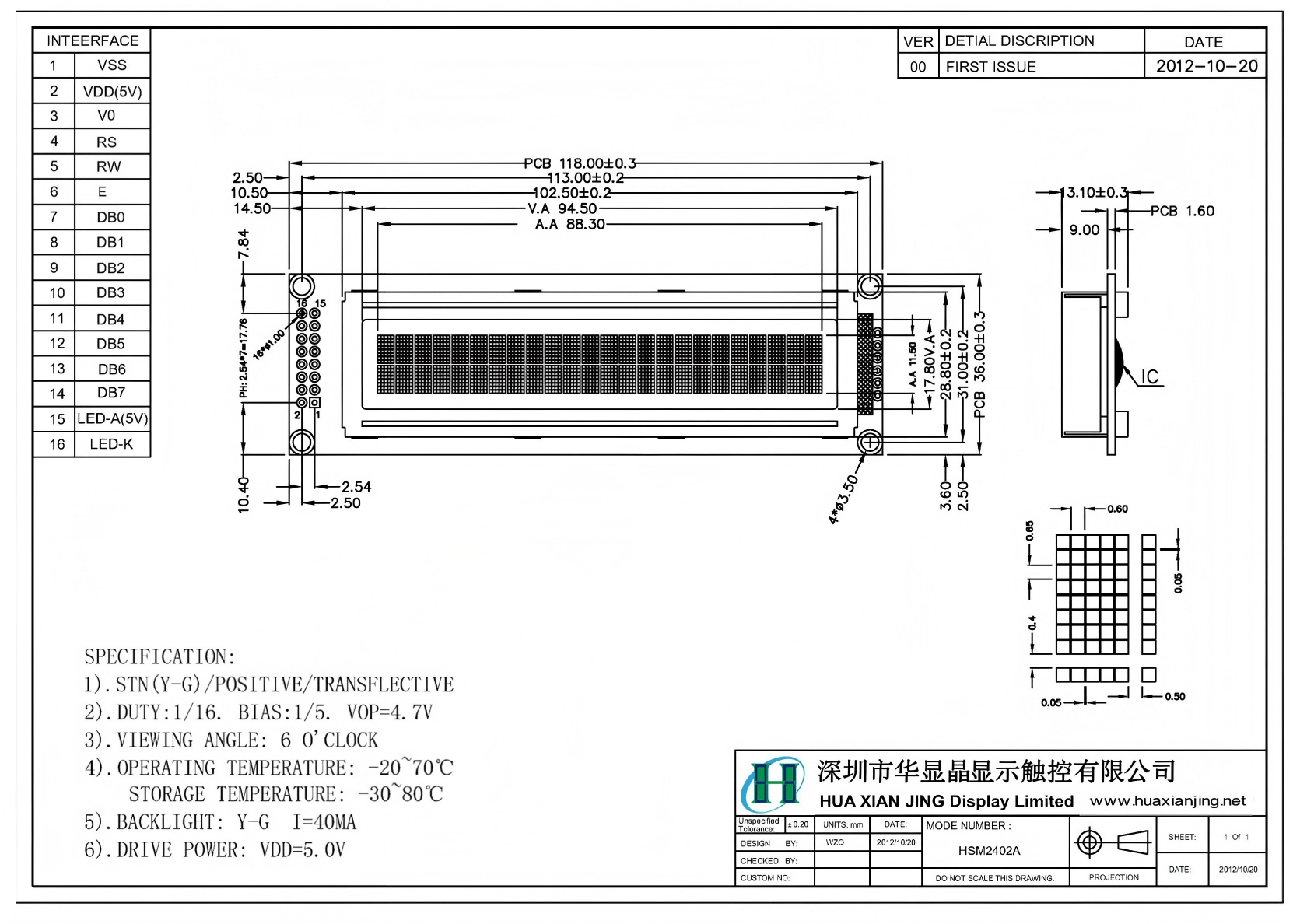

The drawing:
