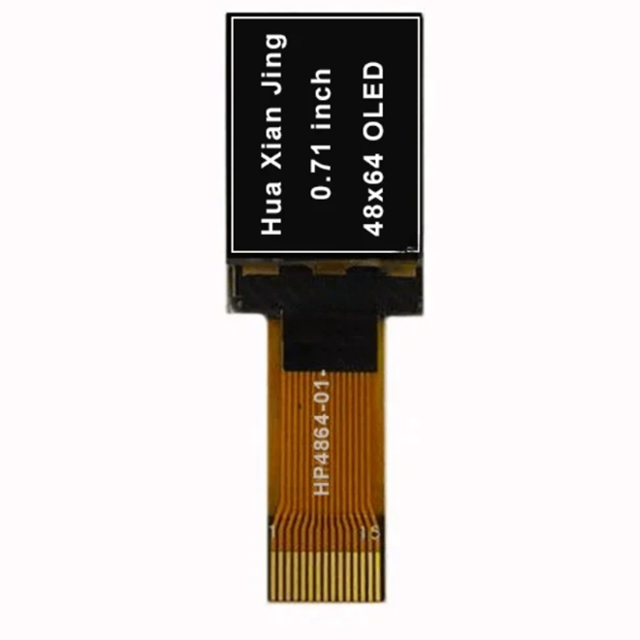

0.71 inch OLED Display Module White 48X64 Pixels

Model No. HP4864-01-TSWG14P071

0.71 inch OLED Display Module 48*64 driver IC SSD1306 White Monochrome OLED display IC I2C

Product Features

· Model NO. : HP4864-01-TSWG14P071

· Size: 0.71

· Resolution: 48X64

· Shape of Display: Rectangular

· Interface: SPI

· Driver IC: SSD1306

· Touch Screen: Without

+ Add inquiry

Technical Specifications Table

Size
0.71
mm

Resolution
48X64
Dot

Model No.
HP4864-01-TSWG14P071

Product Type
Mono OLED

Shape of Display
Rectangular

Outline Size
13.9x22.0x1.23mm
mm

Active Area
10.54x14.7mm
mm

View Angle
All Angles

Drive IC
SSD1306

Interface
SPI

Touch Screen
Without

OP
-40°C~+70°C
℃

Remark

Application field description

Perfect for wearable devices where a compact and colorful display is needed. Can be used in portable music players for a sleek user interface. Suitable for small home automation displays to show status and controls. Ideal for low-power applications where energy efficiency is crucial.

Product Introduction

0.71 inch OLED Display Module 48*64 driver IC SSD1306 White Monochrome OLED display IC I2C

This OLED module currently has 2 different variations. Their same attributes are:

Dot matrix: 48×64;
Color: White / Blue;
Active Area: 10.54×14.7mm;
View Area: 15.42×12.06mm;
Panel Size: 13.9x22x1.227mm.

Similarly, different customers have different needs, and this 0.71 inch OLED Display Module has different attributes:

Pin Number: 15 Pins / 14 Pins;
Interface: I2C / SPI;
Driver: SSD1306 / SSD1306BZ.

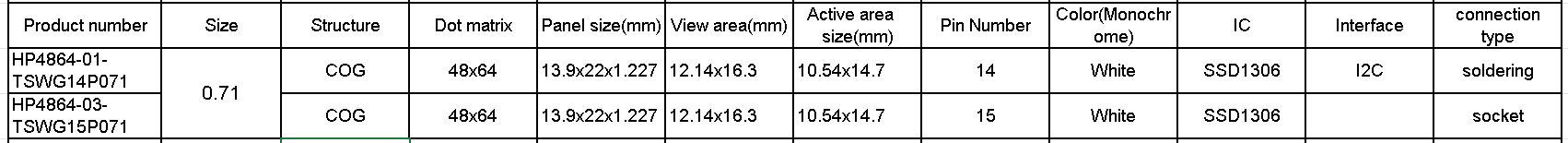

0.71 inch 4864 models.png
