• Size
• 3.0
• mm

• Resolution
• 128x64
• Dot

• Model No.
• HSM12864A30

• Product Type
• Mono COB

• Shape of Display
• Rectangular

• Outline Size
• 113.0 × 65.0 × 12.6
• mm

• Active Area
• 73.40 × 38.08
• mm

• View Angle
• 6 o'clock

• Drive IC
• ST7567

• Interface
• MCU

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

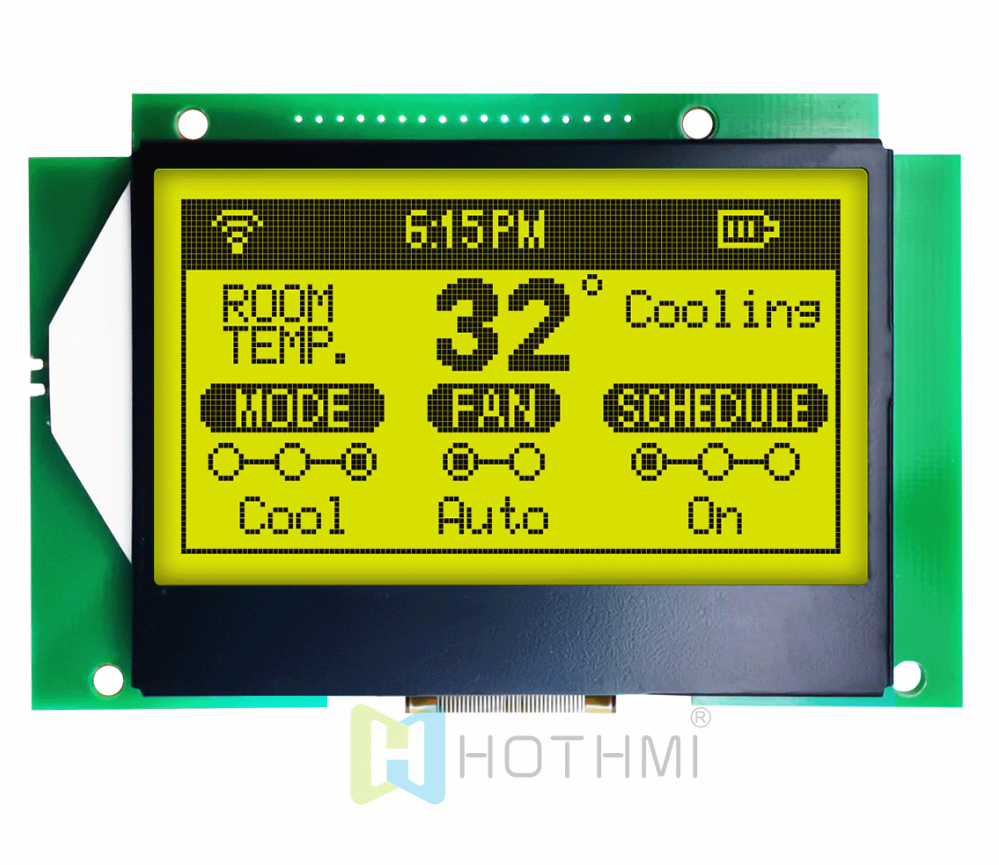

128×64 STN Yellow-Green Positive Transmissive LCD Module (3.0 V Operation)

This 128×64 dot-matrix monochrome LCD module is designed with STN yellow-green positive transmissive technology, delivering high contrast and clear visibility for compact embedded devices and industrial applications.

Operating at a low 3.0 V supply, it is ideal for portable, battery-powered equipment requiring low power consumption and stable visual performance. Its wide temperature tolerance (–10 °C to 60 °C) and robust mechanical structure ensure dependable operation in demanding environments.

With a viewing direction of 6 o’clock and a 1/64 duty, 1/9 bias driving scheme, the display provides stable contrast and uniformity. The module supports an 8080-type parallel interface via a 17-pin connector, making it easy to integrate into various control systems.

Features

128 × 64 dot STN yellow-green display with high readability

Positive transmissive mode suitable for indoor instrumentation

Low-voltage operation at 3.0 V, ideal for portable devices

6 o’clock viewing direction optimized for handheld vertical use

Wide operating temperature: –10 °C ~ 60 °C

Robust PCB and frame structure with 90 mm total width

1/64 duty, 1/9 bias drive mode for stable graphic rendering

White LED backlight for bright and uniform illumination

Applications

Industrial meters and measurement devices

Smart home controllers and wall-mounted interfaces

Medical and laboratory handheld equipment

Communication devices and terminals

Consumer electronics with monochrome display requirements

Portable diagnostic or monitoring instruments

Technical Specifications
