• Size
• 3.2
• mm

• Resolution
• 128x64
• Dot

• Model No.
• HSM12864B

• Product Type
• Mono COB

• Shape of Display
• Rectangular

• Outline Size
• 113.0 × 65.0 × 12.6
• mm

• Active Area
• 73.40 × 38.08
• mm

• View Angle
• 6 o'clock

• Drive IC
• AIP31520

• Interface
• MCU

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

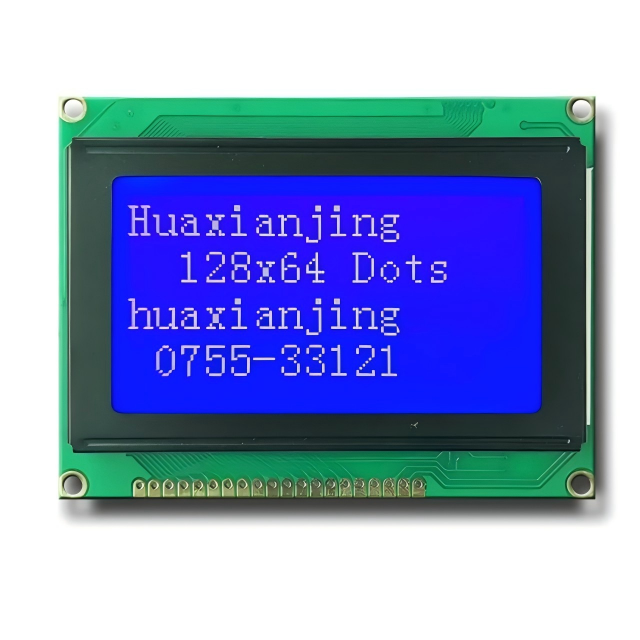

3.2 Inch 128×64 STN Blue Negative Transmissive LCD Module

The HSM12864A is a 128×64 dot-matrix monochrome LCD module built with STN Blue Negative Transmissive technology, offering sharp, high-contrast white characters against a deep blue background. This display is optimized for professional devices requiring clear graphical output in a compact form factor. With a 5.0 V operating voltage, 0107/0108 driver ICs, and stable 1/64 duty, 1/9 bias driving scheme, the module delivers consistent performance suitable for industrial control panels, handheld instruments, and embedded systems. The wide operating temperature range of –20 °C to 70 °C, along with a robust metal frame construction, ensures long-term durability even in demanding environments. A bright white LED backlight (I = 80 mA) provides excellent visibility under various lighting conditions.

Features

128 × 64 dot STN blue negative transmissive LCD

High-contrast white-on-blue display ideal for data and graphics

Integrated 0107 / 0108 driver ICs for stable rendering

5.0 V drive voltage with Vop = 10.5 V

1/64 duty, 1/9 bias drive method for excellent uniformity

Wide operating temperature range: –20 °C to 70 °C

White LED backlight with high brightness (I = 80 mA)

Sturdy metal frame and 113 × 65 mm PCB for reliable installation

Applications

Industrial control panels and factory automation

Handheld electronic measuring instruments

Smart home control terminal displays

Medical diagnostic systems and laboratory devices

Communication and networking equipment

Consumer electronics with monochrome graphic interfaces

Technical Specifications
