• Size
• 3.4
• mm

• Resolution
• 160x64
• Dot

• Model No.
• HSM16064D

• Product Type
• Mono COB

• Shape of Display
• Rectangular

• Outline Size
• 116x36x8.5
• mm

• Active Area
• 83x18.8
• mm

• View Angle
• 6 o'clock

• Drive IC
• ST7920

• Interface
• MCU

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

160×32 STN Yellow-Green Positive Transflective LCD Module (HSM16032D)

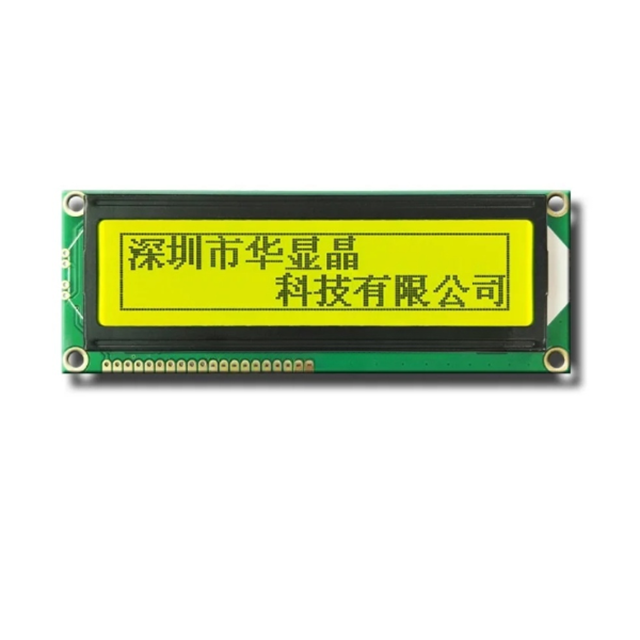

The HSM16032D is a 160×32 dot-matrix LCD module built with STN Yellow-Green Positive Transflective technology, offering excellent readability under both indoor lighting and bright outdoor conditions.

 Its transflective structure allows ambient light to enhance visibility, making it well suited for instruments and industrial interfaces. Powered by a 5.0 V supply and integrated with the ST7920 driver IC, this module provides reliable performance with stable contrast through a 1/32 duty and 1/5 bias driving scheme.

The wide operating temperature range of –20 °C to 70 °C, combined with a durable metal frame and compact mechanical layout (PCB width 116 mm), ensures long-term stability even in demanding operational environments.

 The yellow-green LED backlight (I = 40 mA) offers bright and uniform illumination for clear data and graphic output.

Features

160 × 32 dot graphic display with crisp yellow-green visuals

STN positive transflective technology for strong ambient-light readability

Integrated ST7920 driver IC supporting stable 1/32 duty, 1/5 bias operation

5.0 V drive voltage with low power consumption

Wide operating temperature range from –20 °C to 70 °C

High-brightness yellow-green LED backlight (I = 40 mA)

Robust metal-frame structure for industrial durability

Flexible parallel interface with easy system integration

Applications

Industrial equipment and automation interfaces

Test and measurement instruments

Medical and laboratory diagnostic devices

Smart meters and environmental monitoring equipment

Consumer appliances and home control panels

Communication terminals and embedded systems

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
