• Size
• 4.96
• mm

• Resolution
• 480X960
• Dot

• Model No.
• TFT050B012

• Product Type
• IPS

• Shape of Display
• Bar

• Outline Size
• 76.69x120.65x2.0
• mm

• Active Area
• 66.16x112.32
• mm

• View Angle
• All Angles

• Drive IC
• GC9503C

• Interface
• RGB

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

•
  Smart Home
•
  Medical Devices
•
  Smart Home
•
  Medical Devices
•
  Smart Home

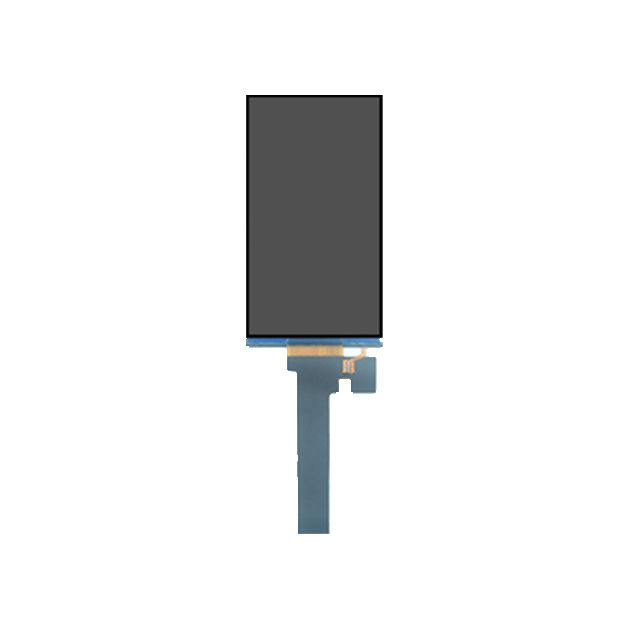

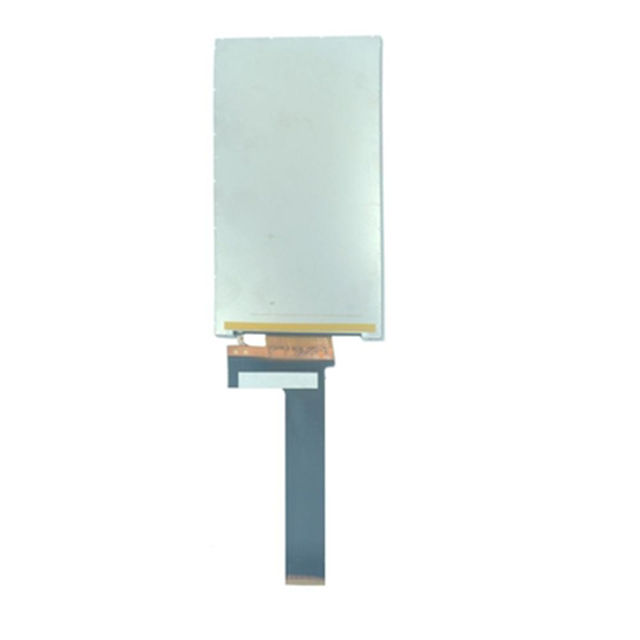

4.95-Inch TFT LCD Display Module (480×960 Resolution)

The TFT050B012 is a 4.95-inch high-resolution TFT LCD module designed for modern handheld, industrial, and smart home applications requiring a slim, high-brightness, and vertically oriented display. Featuring a crisp 480×960 RGB resolution, this module delivers sharp text, vivid graphics, and excellent color uniformity across the entire viewing area.

Built with the GC9503C display driver IC, it supports stable RGB interface signaling and smooth image rendering. With a robust operating temperature range of –20 °C to 70 °C, a thin mechanical structure, and a flexible FPC tail suitable for bending during assembly, the module integrates seamlessly into compact embedded devices. Its 12-LED backlight (19.2 V, 20 mA × 2 strings = 40 mA) ensures high brightness and clear visibility even in challenging lighting environments.

Features

4.95-inch TFT display with 480×960 resolution

GC9503C driver IC for smooth and stable image performance

Slim mechanical profile with bendable FPC for flexible installation

Wide operating temperature range: –20 °C to 70 °C

High-brightness LED backlight using 12 LEDs (two parallel strings)

Suitable for vertical UI layouts and narrow-format designs

40-pin FPC interface compatible with MCU or display controllers

41-

Excellent display uniformity and color reproduction for modern UIs

Applications

Smart home wall panels and control terminals

Handheld industrial instruments and scanners

Medical diagnostic handheld devices

Vending equipment and POS systems

Fitness devices, smart appliances, and control dashboards

IoT devices requiring a compact full-color display

Technical Specifications
