• Size
• 2.66
• mm

• Resolution
• 180X480
• Dot

• Model No.
• TFT0286B

• Product Type
• IPS

• Shape of Display
• Bar

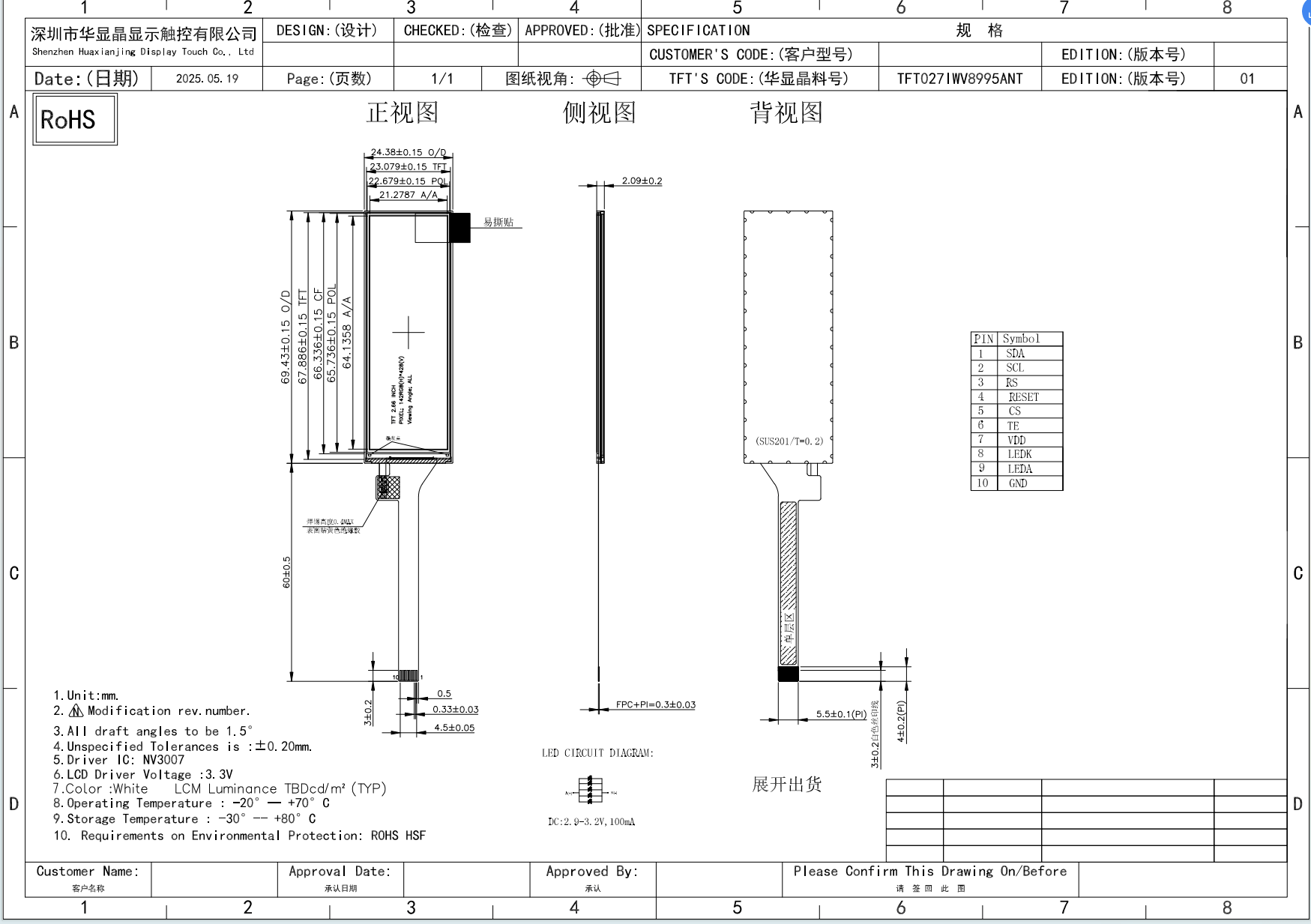

• Outline Size
• 24.38x62.94x2.1
• mm

• Active Area
• 21.28x64.14
• mm

• View Angle
• All Angles

• Drive IC
• NV3030T

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

•
  Smart Home
•
  Medical Devices
•
  Smart Home
•
  Medical Devices
•
  Smart Home

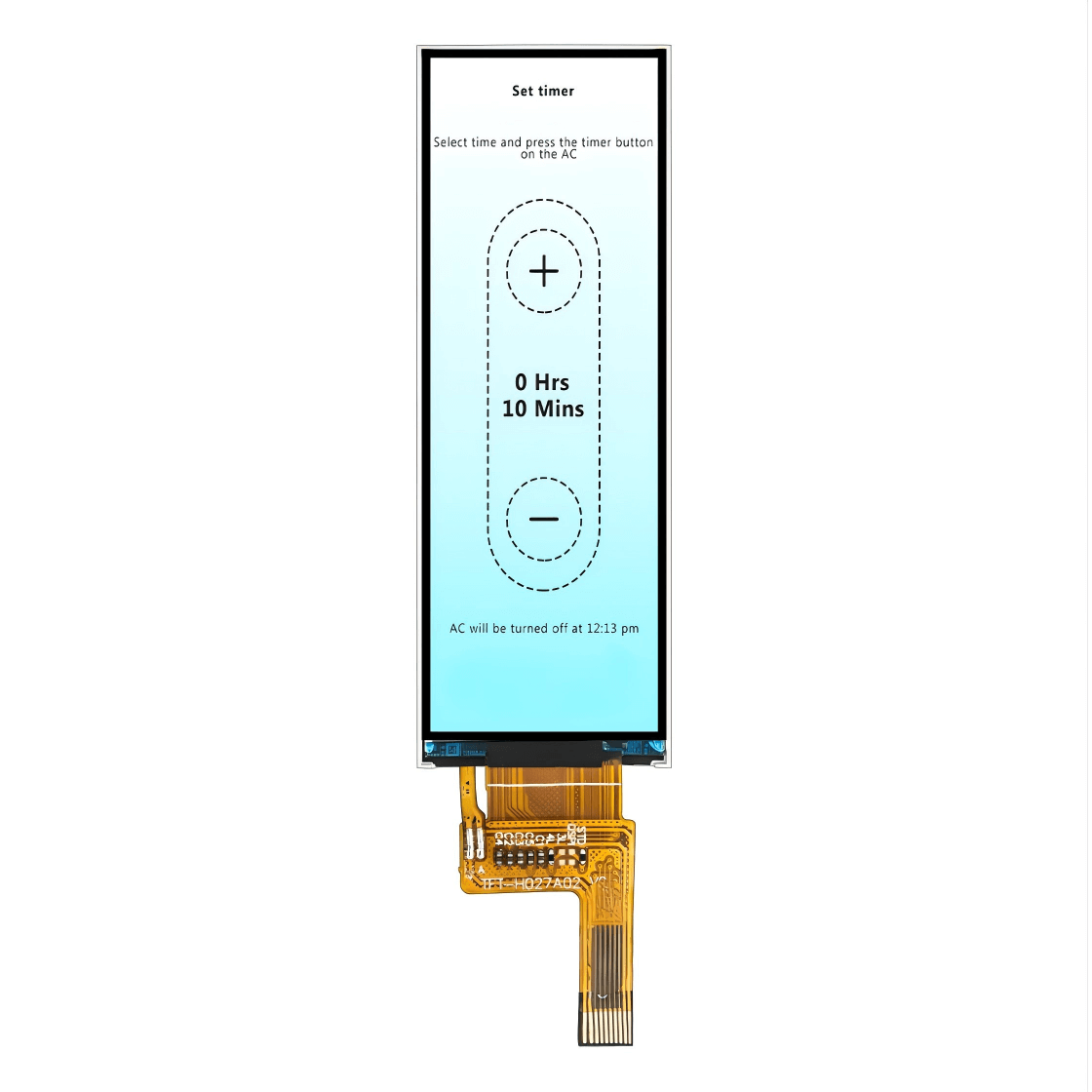

2.66-Inch TFT LCD Display 480×180 with 4-SPI Interface and NV3030T Driver

Detailed Introduction

This 2.66-inch TFT LCD module features a compact elongated design optimized for modern handheld devices and slim industrial controllers. With a resolution of 480×180, the module provides a crisp and detailed viewing experience suitable for vertically oriented UI layouts, compact smart terminals, barcode scanners, and wearable devices. Its slender aspect ratio enables product designers to create intuitive interface elements, such as status bars, alerts, measurement indicators, or simplified dashboards.

The display is powered by the NV3030T driver IC, a highly efficient controller supporting 4-SPI communication. This ensures low-pin-count integration, stable data transfer, and reduced system cost while maintaining smooth display performance. The module operates at 3.3 V logic voltage and supports a wide operating temperature range from –20°C to +70°C, making it suitable for deployments in varying environmental conditions including industrial and consumer devices.

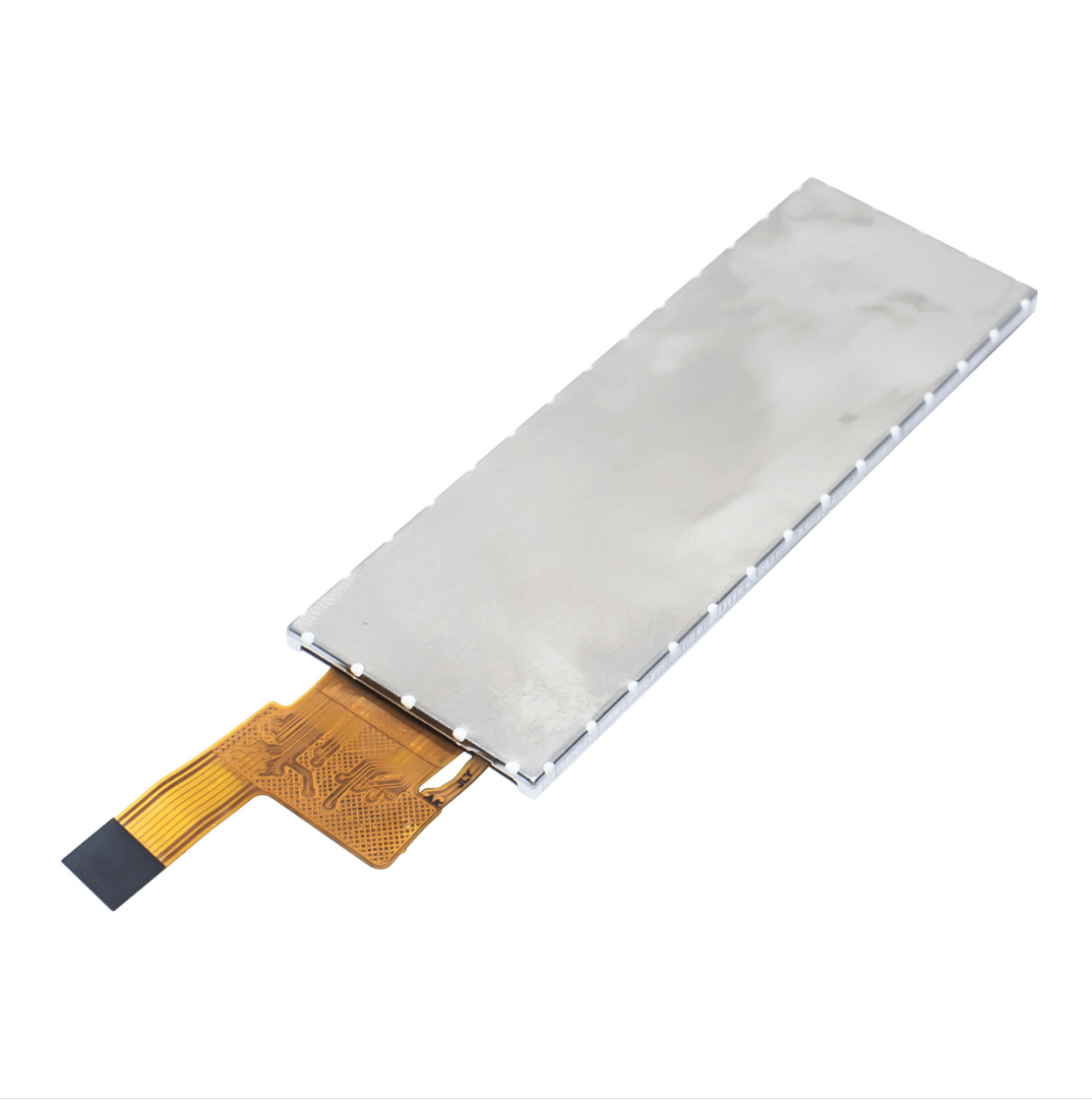

The backlight system incorporates high-efficiency white LEDs, designed to provide uniform luminance across the wide display area. With a typical brightness estimated around 250–350 cd/m², the display achieves clear visibility under indoor and controlled lighting environments. The module is structured with a thin mechanical profile of around 2.1 mm and a reinforced FPC tail for secure motherboard connection. Its compact footprint offers excellent compatibility for miniaturized product designs requiring lightweight, robust, and visually appealing displays.

With its stable performance, flexible integration interface, and slim outline, this 2.66-inch TFT module is ideal for devices such as compact handheld controllers, IoT terminals, portable tools, wearable meters, and smart accessories. It provides a combination of durability, efficient power usage, and clear visual output tailored for next-generation embedded displays.

Features

2.66-inch TFT display with slim elongated form factor

480×180 resolution optimized for compact UI layouts

NV3030T driver IC with stable 4-SPI interface

White backlight with uniform luminance

Thin mechanical profile for space-critical product designs

Wide operating temperature suitable for industrial environments

Low-power design for portable and battery-powered devices

Easy integration with flexible FPC connection

Applications

Barcode scanners and portable terminals

Wearable devices and smart meters

Handheld controllers and compact HMIs

Smart home panels and IoT interfaces

Medical handheld devices

Industrial data collectors

Consumer electronic handheld gadgets
