• Size
• 4.6
• mm

• Resolution
• 320X960
• Dot

• Model No.
• TFT046B

• Product Type
• IPS

• Shape of Display
• Bar

• Outline Size
• 118.7x41.57x2.5
• mm

• Active Area
• 110.3x36.77
• mm

• View Angle
• All Angles

• Drive IC
• ST7701S

• Interface
• RGB

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

•
  Smart Home
•
  Medical Devices
•
  Smart Home
•
  Medical Devices
•
  Smart Home

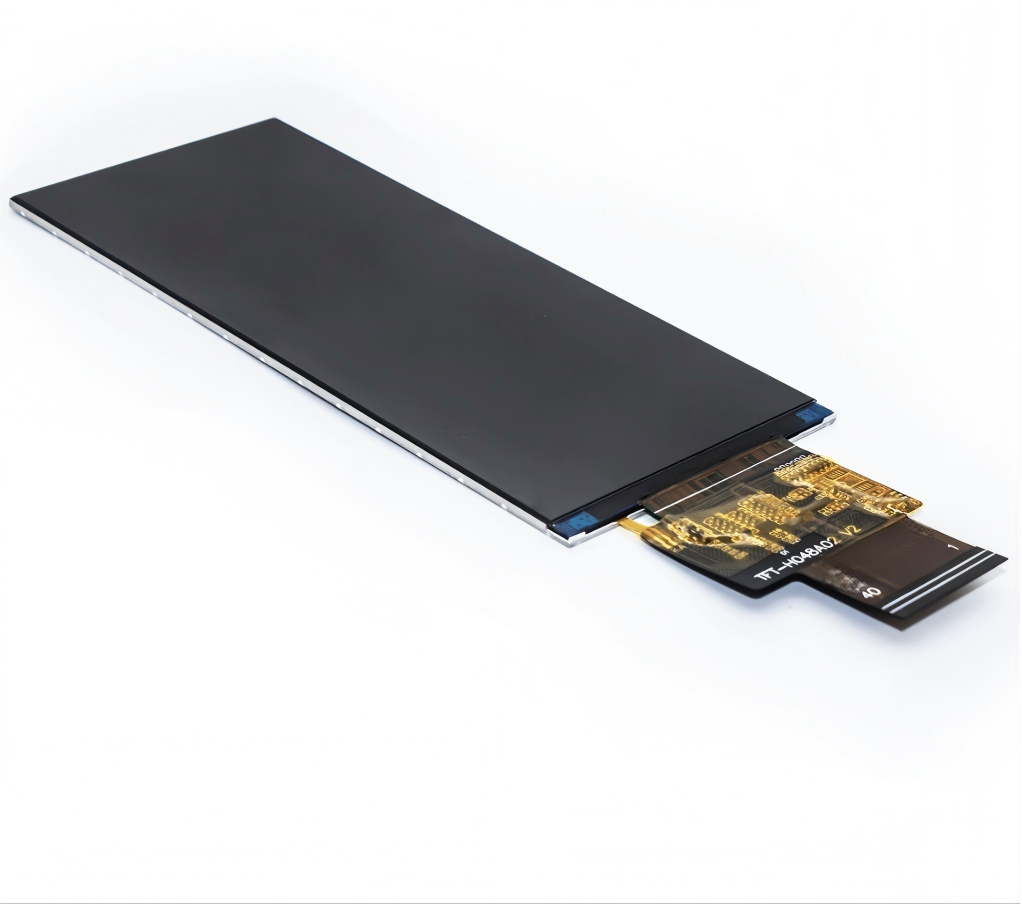

4.6-Inch Bar-Type TFT LCD Display Module

This 4.6-inch bar-type TFT LCD module (model TFT046AQV8466ANT) is designed for next-generation industrial, commercial, and smart appliance interfaces requiring a slim, vertically oriented display. With an ultra-tall aspect ratio and 46.57 × 118.32 mm active area, the module offers exceptional clarity for text, icons, and segmented layouts. Built with an ST7701S display driver and operating at 2.8 V ±0.3 V, the display ensures stable performance, low power consumption, and smooth color rendering for modern embedded systems. A bright white LED backlight (If = 40 mA at 12 V) provides excellent readability across diverse lighting environments. Designed to operate reliably from –20 °C to 70 °C, this module is ideal for rugged industrial devices, smart home terminals, and handheld equipment that require a durable, high-contrast visual output.

Features

4.6-inch bar-type TFT LCD, ideal for vertical UI layouts

ST7701S driver IC for stable, high-quality color display

2.8 V driver voltage for power-efficient operation

Slim design: only 2.54 mm thin (typ.)

Wide operating temperature range: –20 °C ~ 70 °C

White LED backlight with uniform luminance (12 V, 40 mA)

40-pin FPC interface supporting RGB/MCU-type control signals

Compatible with capacitive touch panel interface lines (TP_INT, TP_SCL, TP_SDA, TP_RESET, TP_VCI)

Applications

Smart home controllers and wall-mounted panels

Industrial handheld devices and data collectors

Coffee machines, vending systems, and POS terminals

Medical and laboratory handheld testers

Fitness equipment and smart appliance displays

IoT devices requiring a narrow, high-readability screen

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution
