• Size
• 3.1
• mm

• Resolution
• 128x64
• Dot

• Model No.
• HSG12864BW310

• Product Type
• Mono COG

• Shape of Display
• Rectangular

• Outline Size
• 54x42x3.2
• mm

• Active Area
• 33.24x16.52
• mm

• View Angle
• 6 o'clock

• Drive IC
• ST7565

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark
• White backlight

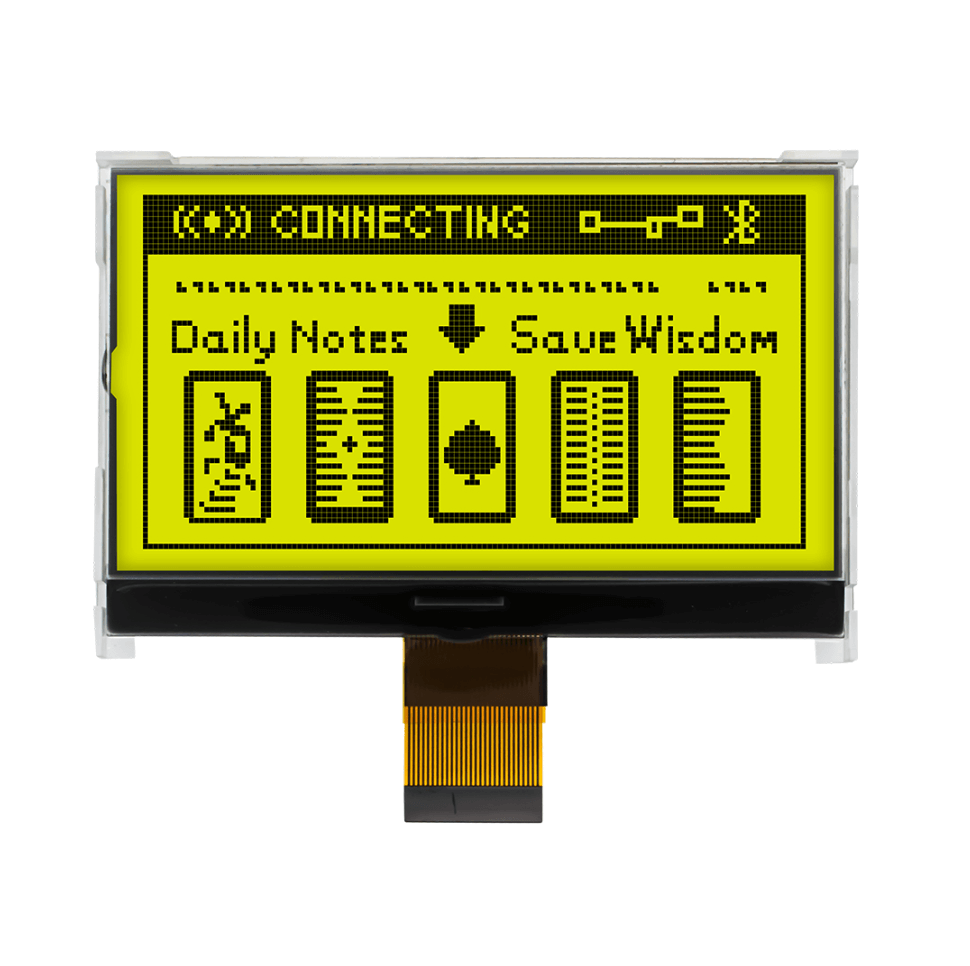

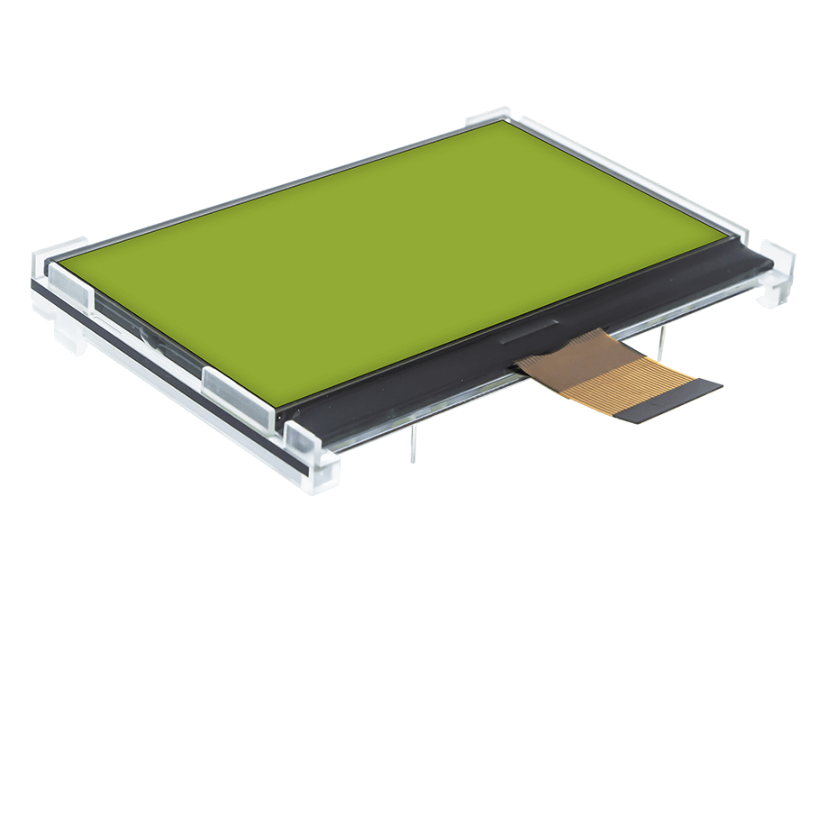

128×64 Transflective STN Yellow-Green Graphic LCD Module (3.1", ST7565P Driver)

This 128×64 transflective STN yellow-green LCD module is designed for outdoor-readable and low-power embedded applications. The transflective positive mode provides strong visibility under both ambient light and LED backlight illumination, making it ideal for industrial handheld devices and portable systems. With its 3.1-inch display area, the module balances compact dimensions with ample usable interface space for icons, menus, and system diagnostics.

Powered by the highly stable ST7565P driver IC using 1/64 duty and 1/9 bias, the module delivers excellent pixel uniformity and contrast consistency across temperature ranges. The mechanical design includes a reinforced stiffener and fine-pitch FPC to ensure strong structural reliability during assembly. With an overall outline of 54.00 × 42.00 mm and a slim profile, this module integrates smoothly into compact housings while maintaining clear visual output on its 33.24 × 16.52 mm active area.

The module’s yellow-green LCD layer paired with a white LED backlight ensures high legibility in diverse lighting conditions, making it suitable for both indoor and outdoor interfaces.

Features

STN-Y/G LCD, transflective, positive display mode

Excellent readability under sunlight or LED backlight

128×64 dot-matrix resolution for detailed UI content

White LED backlight with low power consumption

ST7565P driver IC with 1/64 duty & 1/9 bias

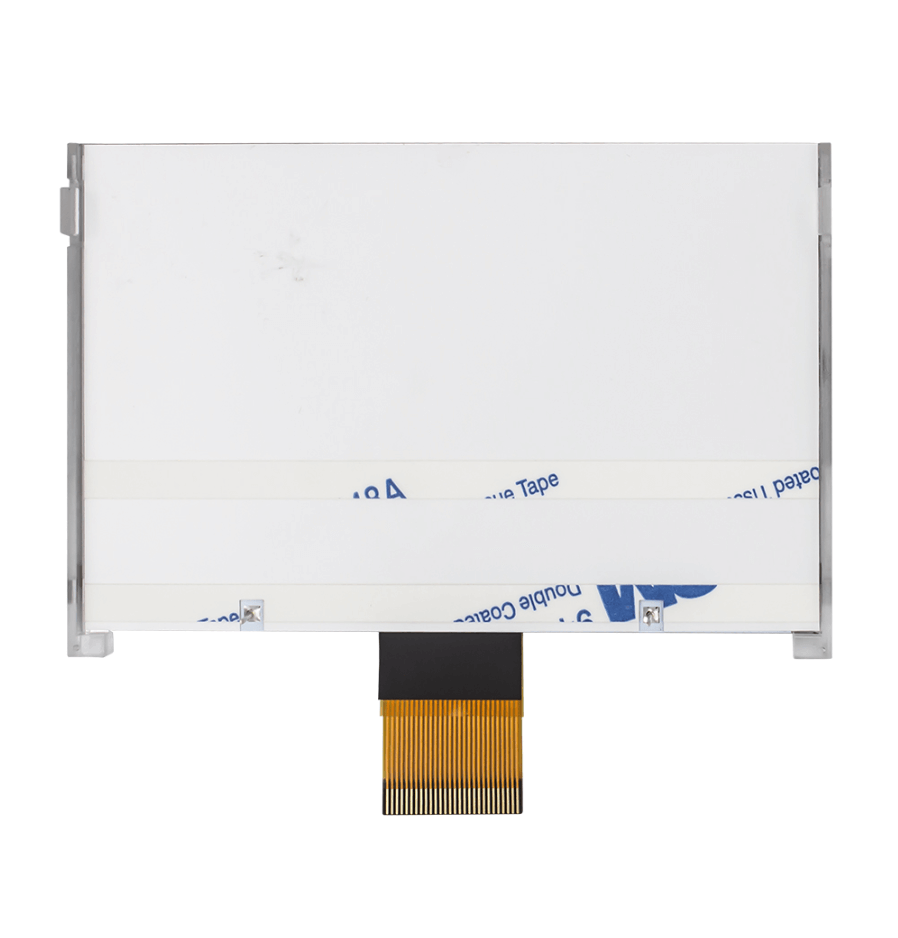

Slim outline design with structural stiffener

Wide operation temperature for industrial applications

Easy integration using flexible FPC connector

Applications

Outdoor-capable handheld terminals

Smart meters and industrial controllers

Medical diagnostic devices

Access control panels and security systems

IoT devices and portable instruments

Test and measurement equipment
