• Size
• 0.87
• mm

• Resolution
• 128x32
• Dot

• Model No.
• HP12832-00-TSWG15P087

• Product Type
• Mono OLED

• Shape of Display
• Rectangular

• Outline Size
• 29x12.22x1.5
• mm

• Active Area
• 21.36x5.324
• mm

• View Angle
• All Angles

• Drive IC
• SSD1316Z

• Interface
• SPI

• Touch Screen
• NA

• OP
• -20°C~+70°C
• ℃

• Remark

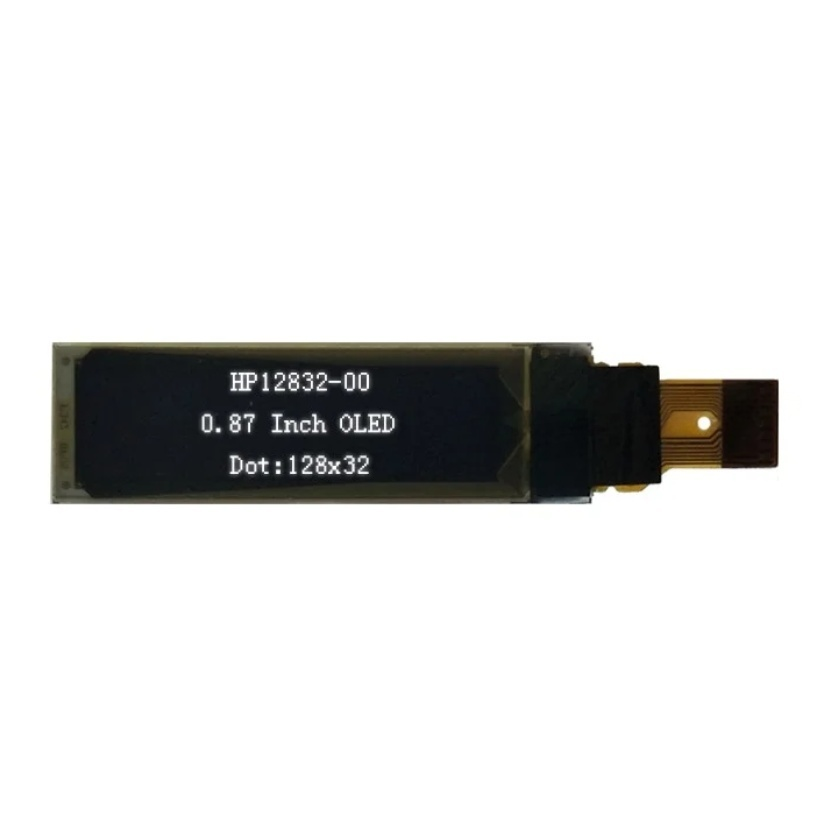

0.87-Inch 128×32 White OLED Display Module (HP12832-00-TSWG15P087-A)

This 0.87-inch monochrome OLED display module features a 128×32 pixel resolution and a compact, ultra-thin structure ideal for miniature devices, low-power wearables, measurement instruments, and handheld controllers. OLED technology provides excellent contrast, fast response time, deep black levels, and wide viewing angles without requiring a backlight, enabling superior visual performance at extremely low power consumption.

Driven by the SSD1316Z controller, the module supports a standard 4-wire SPI/I²C interface and offers flexible integration with various microcontrollers such as STM32, ESP32, Arduino, and industrial embedded platforms. Its slim mechanical profile and narrow border design make it well-suited for compact user interface layouts.

The module’s robust performance across a wide temperature range and its energy-efficient OLED panel ensure stability and long lifetime in consumer, industrial, and portable applications.

Features

0.87-inch White OLED with 128×32 dot resolution

Self-emissive technology with no backlight required

Ultra-high contrast and ultra-wide viewing angles

SSD1316Z graphic driver IC with SPI/I²C support

Extremely low power consumption and fast response speed

Thin form factor ideal for compact devices

High aperture ratio for improved brightness uniformity

Suitable for battery-powered and portable applications

Applications

Wearable devices

Compact meters and handheld instruments

Smart appliances and consumer electronic UI

IoT terminals and wireless sensors

Medical handheld devices

Industrial display modules for compact indicators

Power-sensitive products requiring low energy consumption

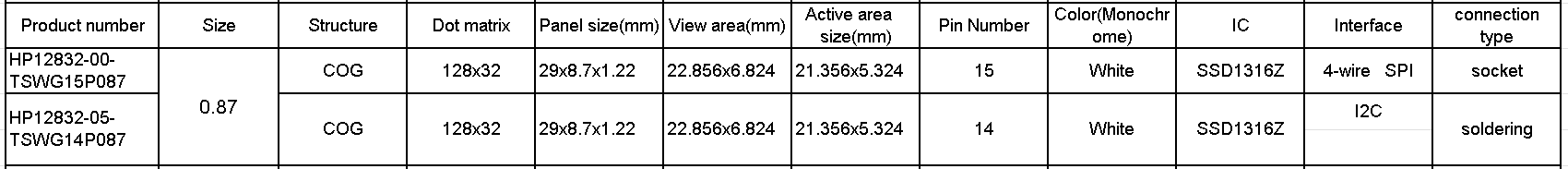

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The tailor extensive portfolio makes it possible to create-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP) or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
