0.96-Inch 128×64 White OLED Display Module with SSD1316Z Driver

Model No. HP12864-02-KSWG30P096

Product Features

· Model NO. : HP12864-02-KSWG30P096

· Size: 0.96

· Resolution: 128x64

· Shape of Display: Rectangular

· Interface: I2C

· Driver IC: SSD1316Z

· Touch Screen: NA

+ Add inquiry

Technical Specifications Table

Size
0.96
mm

Resolution
128x64
Dot

Model No.
HP12864-02-KSWG30P096

Product Type
Mono OLED

Shape of Display
Rectangular

Outline Size
27.74x18.94x3.0
mm

Active Area
21.74x10.86
mm

View Angle
All Angles

Drive IC
SSD1316Z

Interface
I2C

Touch Screen
NA

OP
-20°C~+70°C
℃

Remark

Application field description

Wearable devices Compact meters and handheld instruments Smart appliances and consumer electronic UI IoT terminals and wireless sensors Medical handheld devices Industrial display modules for compact indicators Power-sensitive products requiring low energy consumption

Product Introduction

0.96 inch OLED Display Module, 128×64 Dots, SSD1315Z Driver, White Emission

Sh

Technical Specifications

Parameter	Specification
Model Number	HP12864-02-KSWG30P096-A
Display Type	OLED (White)
Display Size	0.96 inch
Resolution	128 × 64 Dots
Dot Size	0.15 × 0.15 mm
Dot Pitch	0.17 × 0.17 mm
Active Area (AA)	21.74 × 10.86 mm
Outline Dimensions (OD)	24.74 × 18.94 × 3.0 mm (Max)
Driver IC	SSD1315Z
Interface	30-pin FPC, supports SPI/I²C/Parallel
Viewing Direction	All
Display Color	White
Aperture Ratio	78 %
Operating Temperature	–20 °C ~ +70 °C
Storage Temperature	–30 °C ~ +80 °C
Module Thickness	≤3.0 mm
Compliance	RoHS

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The tailor extensive portfolio makes it possible to create-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP) or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.

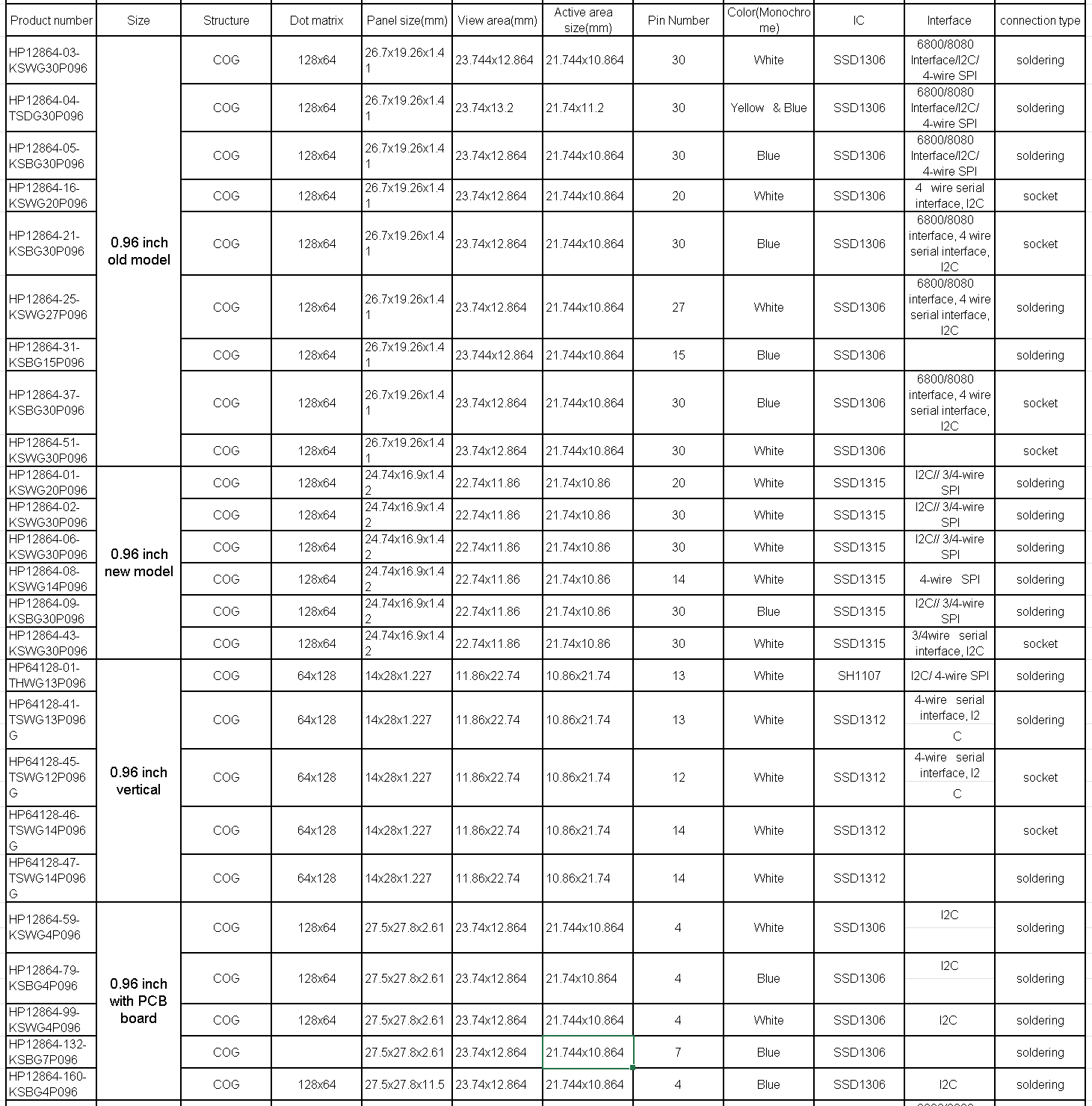

0.96 inch models.png
