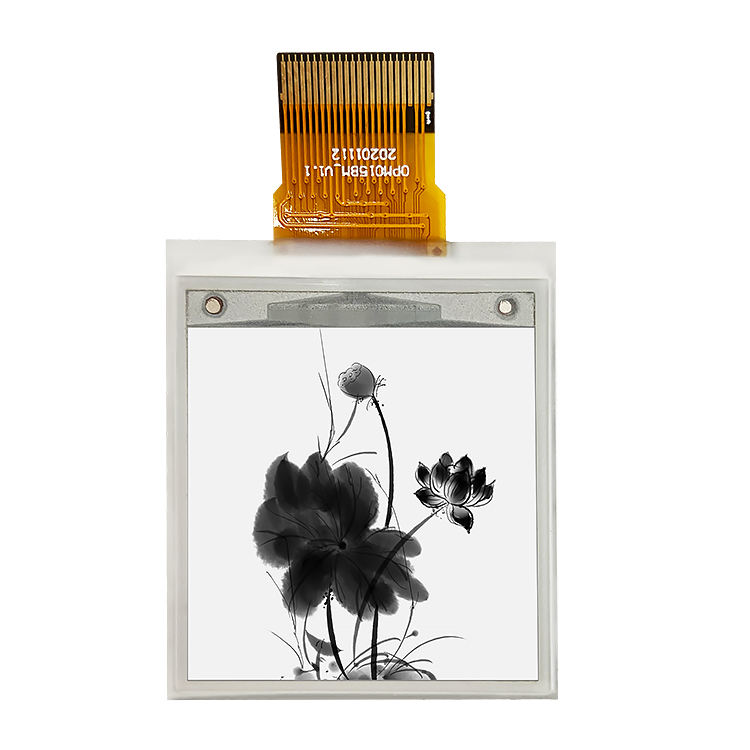

1.54inch E-paper Display Module 200X200 Pixels

Model No. EPD0154B

The 1.54" active area contains 200 x 200 pixels and supports 1-bit black-and-white display with full display capabilities. As a reliable 1.54 inch E-paper module, it offers excellent readability under various lighting conditions and is ideal for applications requiring low power consumption and wide viewing angles. This 1.54 inch E-paper display integrates a gate buffer, source buffer, interface, timing controller logic, oscillator, DC-DC converter, SRAM, LUT, VCOM, and borders for each panel.

Product Features

· Model NO. : EPD0154B

· Size: 1.54

· Resolution: 200x200

· Shape of Display: Rectangular

· Interface: SPI

· Driver IC: SSD1681

· Touch Screen: 188

+ Add inquiry

Technical Specifications Table

Size
1.54
mm

Resolution
200x200
Dot

Model No.
EPD0154B

Product Type
E-Ink

Shape of Display
Rectangular

Outline Size
31.8×37.32×0.98
mm

Active Area
36.72x48.96
mm

View Angle
All Aangles

Drive IC
SSD1681

Interface
SPI

OP
0-50℃
℃

Remark
White/Black

Application field description

Smart Home
Medical Devices
Smart Home
Medical Devices
Smart Home

Product Introduction

Features

· High contrast

· High reflectance

· Ultra-wide viewing angle

· Ultra-low power consumption

· Pure reflective mode

· Bi-stable

· Commercial temperature range

· Supports both landscape and portrait modes

· Anti-glare hard-coated front surface

· Low current sleep mode

· On-chip display RAM

· Serial Peripheral Interface (SPI) available

· On-chip oscillator

· On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages

· I2C master interface for reading an external temperature sensor

· Front light panel with 3 LEDs in series

· Available in COG package with IC thickness of 300µm
