• Size
• 3.95
• mm

• Resolution
• 480x480
• Dot

• Model No.
• TFT0395BT

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 93.9x81x3.7
• mm

• Active Area
• 72.26x72.26
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• CTP

• OP
• -20°C~+70°C
• ℃

• Remark

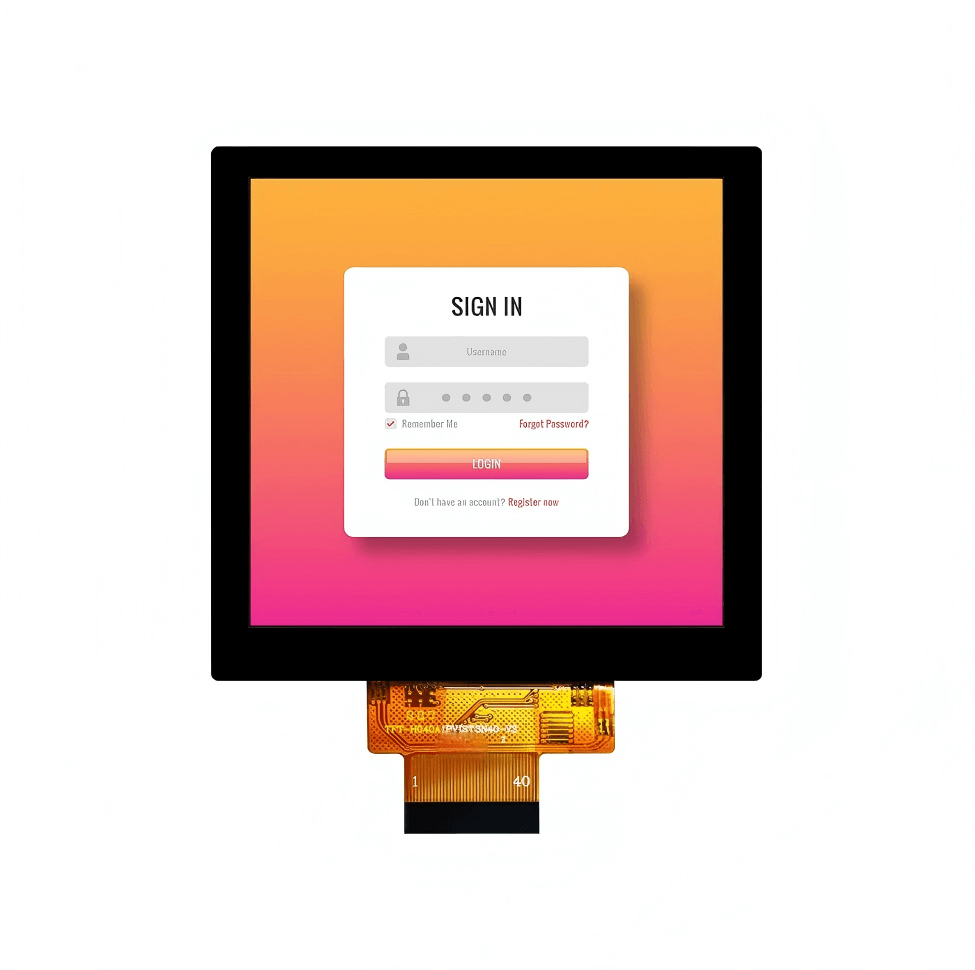

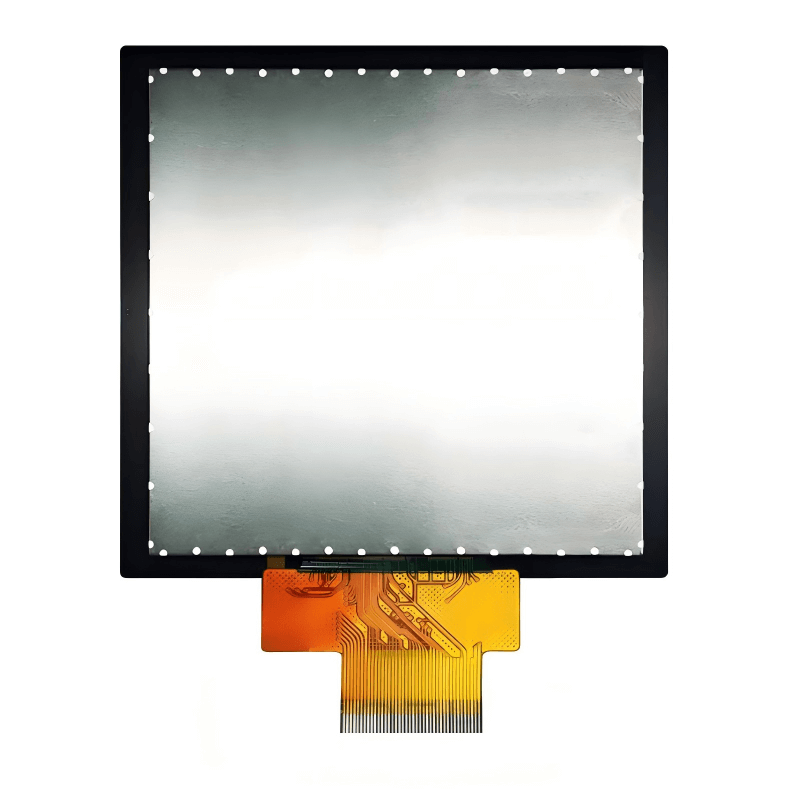

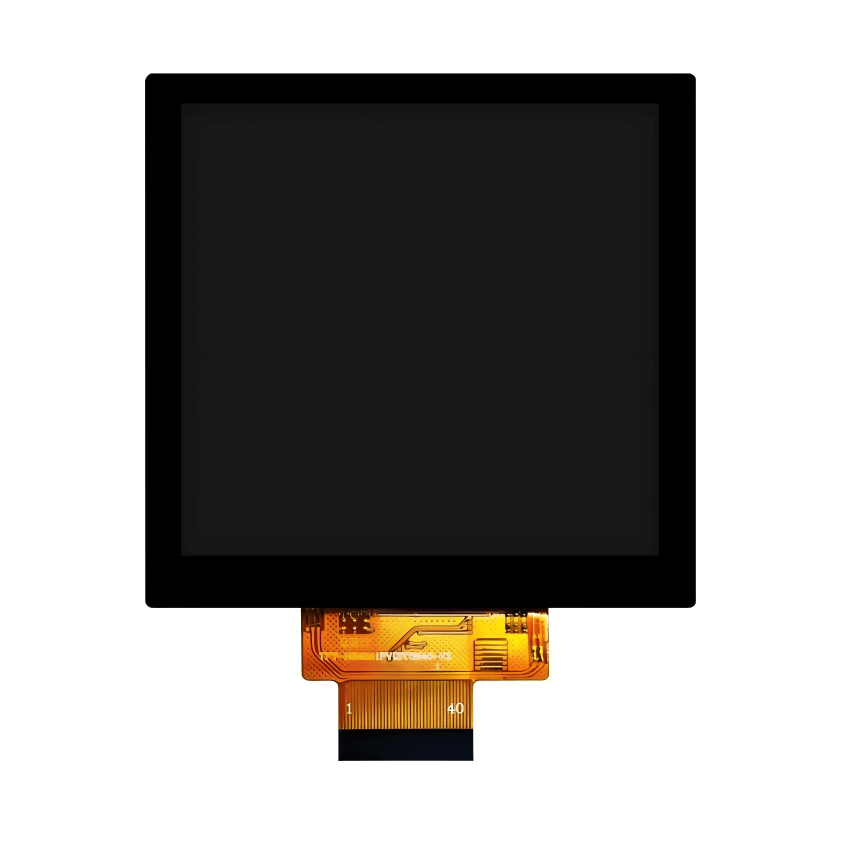

3.95-Inch Square In-Cell TFT LCD 480×480 with MIPI Interface

Detailed Introduction

This 3.95-inch square In-Cell TFT LCD display module integrates touch and display into a single optical structure, enabling superior thinness, reduced weight, and enhanced optical clarity. With a high-resolution 480×480 pixel layout, it delivers sharp visual definition ideal for modern round-edge UI designs and applications where compact yet crisp display performance is required. The full viewing direction capability ensures consistent readability from all angles, making it suitable for handheld devices, wearables, smart terminals, and home-automation panels.

The module uses an In-Cell touch architecture, combining the capacitive touch layer within the LCD cell itself. This eliminates the need for an external cover lens bonding process and reduces internal reflections, resulting in clearer imagery and higher sensitivity. The mechanical design—including precise cover-glass alignment, FPC reinforcement, and optimized backlight optical stack—provides dependable stability under long-term operation.

With a MIPI interface, the display delivers high-speed data transmission suitable for advanced UI animations and visually rich applications. The module’s design supports integration into slim housings, with thickness controlled around 2.1–2.4 mm depending on the assembly area. The optional front protective film ensures the display surface remains scratch-free during the customer’s manufacturing process.

Operational stability is supported across a wide temperature range of –20°C to +70°C, while storage conditions down to –30°C allow flexibility in transportation and warehousing. The backlight adopts a multi-string LED configuration offering strong uniformity, and brightness is estimated at 380–450 cd/m², enhanced by optimized light-guide and diffuser layers.

This In-Cell display is especially suited for next-generation smart home hubs, wearable dashboards, medical mini-screens, instrument panels, and AI-driven compact terminals. Its square aspect ratio and wide-angle view fit UI layouts involving icons, widgets, and circular indicators, providing a highly adaptable visual platform for embedded product designers.

Features

3.95-inch In-Cell TFT with integrated touch

High-resolution 480×480 square display

Full viewing direction for flexible installation

Slim module thickness with simplified assembly

MIPI high-speed interface suitable for animated UI

Strong optical uniformity with optimized LED backlight

Wide operating temperature for industrial and consumer environments

Protective film reserved for shipment

Applications

Smart home controllers and touch panels

Wearable devices and portable terminals

Medical and diagnostic handheld devices

Industrial mini-screens and meters

AI smart displays and HMI terminals

Compact consumer electronics

Technical Specifications

Except the available standard LCD/TFT/OLED display products, Huaxianjing provides tailor made displays. The extensive portfolio makes it possible to create tailor-made solutions for customers to fit their application. We have the advanced display technologies available to use in your design and if there is anything you want to change about one of our existing LCD/TFT/OLED displays, we can make it happen.

With more than 15 years experience, our sales and engineering team will be with you through the entire development process and will ensure the semi or fully customization a successful display tailored made to the individual application.

Our LCD/TFT/OLED custom design solutions are available in different options according to customer requirements. Huaxianjing can offer various options on backlight type, pin and connector, cable, resistive touch screen (RTP) and projected capacitivetouch screen (CTP)  or anti-reflective or anti-glare coating, or custom cover lens, ZIF PPC or customized PCB board or a fully custom solution for your product application, as well as System Integrated Solution.
