• Size
• 2.4
• mm

• Resolution
• 240x320
• Dot

• Model No.
• TFT024BT

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 42.72x60.26x2.4
• mm

• Active Area
• 36.73x48.96
• mm

• View Angle
• All Angles

• Drive IC
• ST7789

• Interface
• SPI

• Touch Screen
• CTP

• OP
• -20°C~+70°C
• ℃

• Remark
• with RTP/CTP

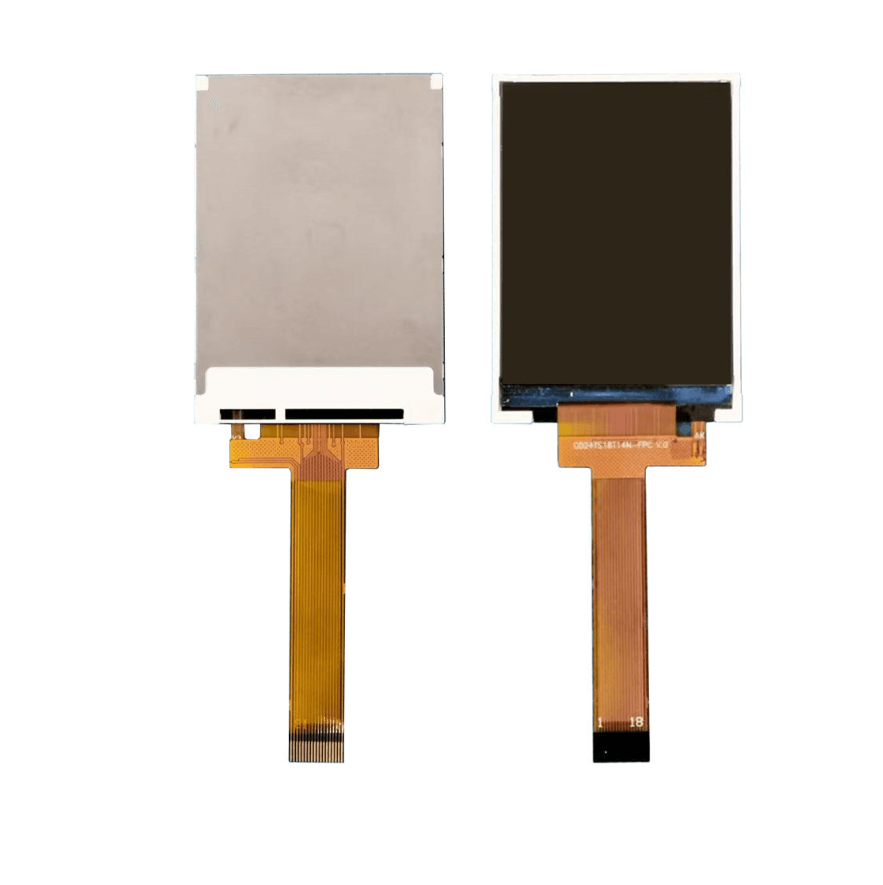

2.4 inch IPS LCD display SPI interface 300 brightness resolution: 240*320 driver IC: ST7789

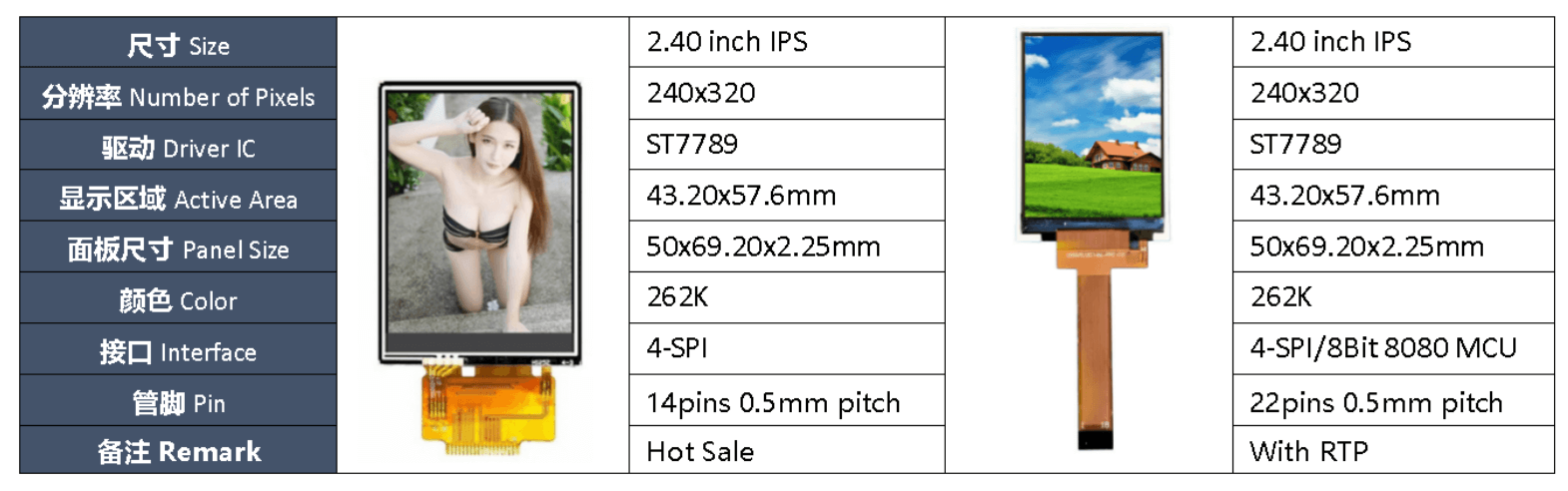

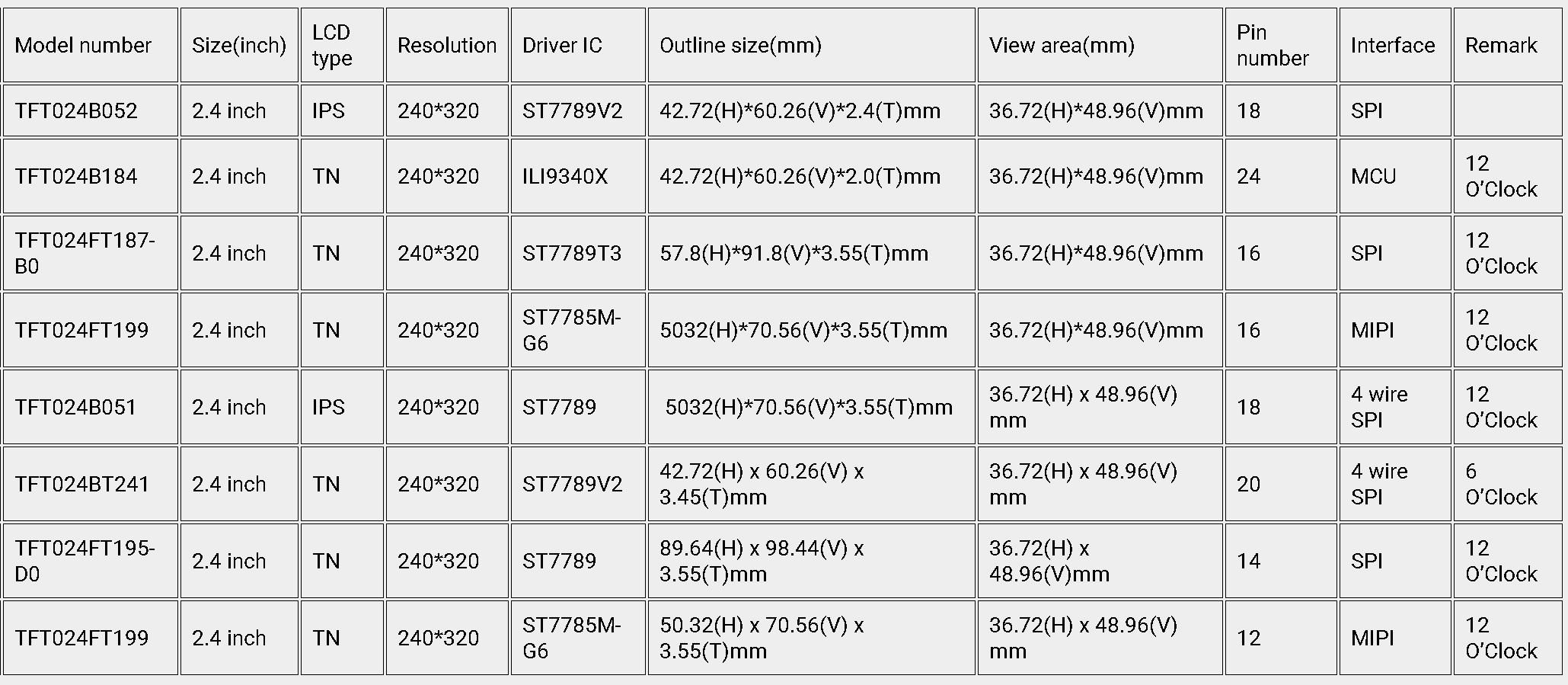

2.4-inch TFT LCD Module is a 240xRGBx320 pixel color TFT LCD module. This LCD module currently has 2 different variations. Their same attributes are:

• LCD Type: IPS;

• Resolution: 240×320.




Similarly, because different customers have different needs, this 3.2-inch TFT LCD Module also has different attributes:

• Driver IC: ST7785M/ ILI9341V;

• Outline Size: 52.8(H)*75.0(V)*2.5(T)mm /  55.04(H)*77.7(V)*3.75(T)mm;

• View Area: 47.88(H)*63.84(V)mm / 48.6(H)*64.8(V)mm;

• Pin Number: 25 Pins / 40 Pins;

• Interface: MIPI / RGB.

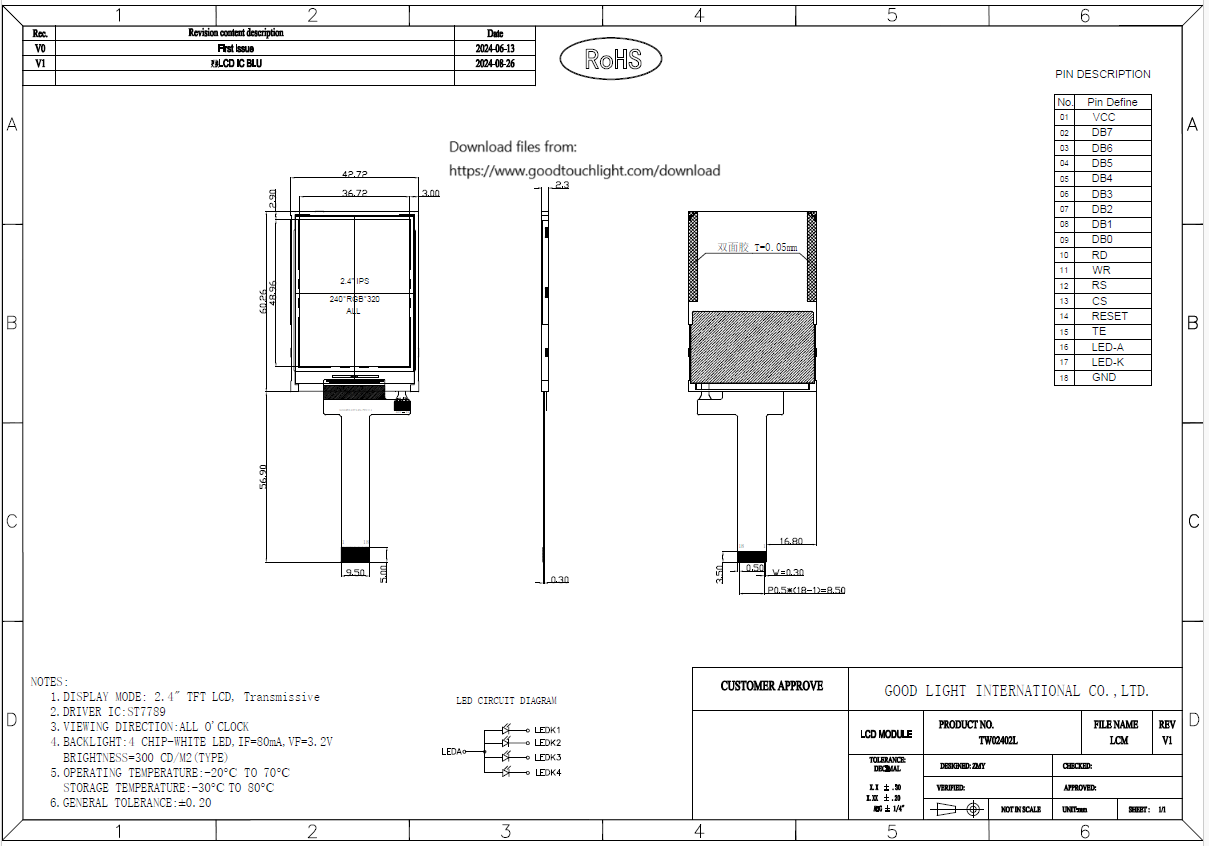

  The drawing:
